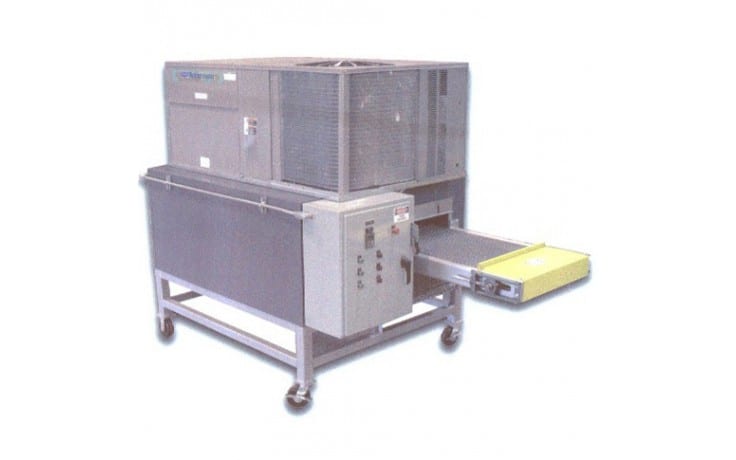

DTI-9378 Preheat Oven and Cooling Conveyor

SPECIFICATIONS

Chamber External Dimensions 5′-8″ L x 5′-1″ W x 2′-7″ H                                                                              (1727mm x 1549mm x 787mm)
Conveyor Usable Size 5′-2″ L x 2′-0″ W x 0′-7″ H                                                                              (1575mm x 610mm x 178mm)
Insulation Thickness 3″ (76mm)
Oven Conveyor Extensions 2′-3″ (686mm) Entrance End                                                                          2′-0″ (610mm) Exit End
Conveyor Type Flat Wire Belt
Conveyor Control PLC controlled index motion based on distance and time
Heat Source SCR controlled electric heater
Design Operating Temperature 150°F – 300°F (66°C – 149°C)
Maximum Operating Temperature 300°F (149°C)
Operating Voltage 480-volt / 3-phase / 60-hertz
Control Closed Loop Digital Temperature Controller

DESCRIPTION

The DTI-9378 conveying oven system preheats and cools weight balanced products. Production parts are manually placed on the conveyor belt of the preheat oven and heated to the desired temperature. The heated parts are then weighed for balance and poured with a lead type substance until the proper weight balance is achieved. Parts are then placed on the cooling conveyor, returning them to ambient temperature prior to the remaining processes.
