DTI-8975 Sintering Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

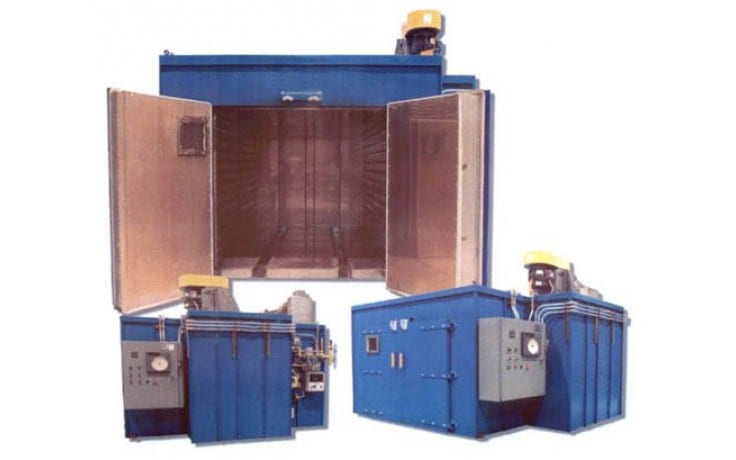

The DTI-8975 batch oven cures Teflon coating on pipes and pipe fittings. This batch oven features recessed floor tracks to accommodate the product cart. Parts are coated and loaded in the batch oven for curing. The batch oven interior is constructed of 304 SS. During testing, this batch oven performed with a deviation of +/-1°F throughout the chamber at 850°F (454°C).
Specifications
| Exterior Dimensions | 12′-0″ L x 9′-0″ W x 10′-0″ H (3658mm x 2743mm x 3048mm) |
| Interior Dimensions | 11′-0″ L x 6′-0″ W x 6′-0″ H (3353mm x 1829mm x 1829mm) |
| Heat Source | Single full modulating natural gas burner package |
| Max Operating Temperature | 850°F (454°C) |
| Design Operating Temperature | 650°F – 850°F (343°C – 454°C) |
| Insulation Thickness | 8″ (203mm) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Airflow | Horizontal cross flow |
| Fans | One (1) circulation fan, One (1) exhaust fan |
| Control | Programmable digital controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
