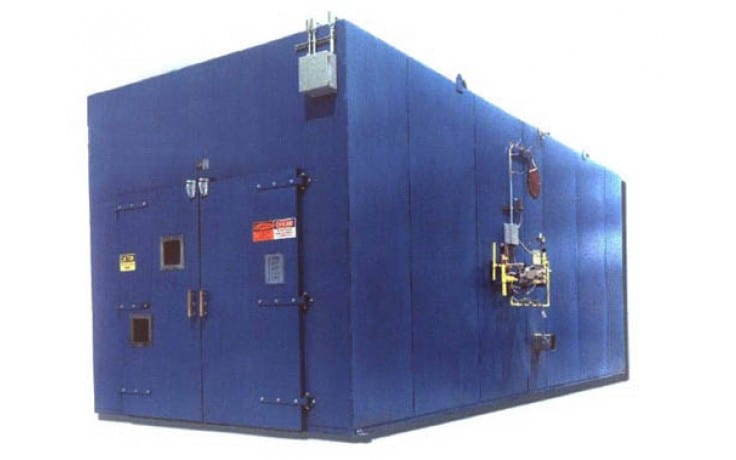

DTI-8973 Sintering Batch Oven

SPECIFICATIONS

Exterior Dimensions  29′-0″ L x 11′-6″ W x 12′-0″ H                                                                        (8839mm x 3505mm x 3658mm)
Interior Dimensions 28′-0″ L x 8′-0″ W x 8′-0″ H                                                                            (8534mm x 2438mm x 2438mm)
Heat Source Single full modulating natural gas burner package
Max Operating Temperature  850°F (454°C)
Design Operating Temperature  700°F (371°C)
Insulation Thickness  8″ (203mm)
Operating voltage  480-volt / 3-phase / 60-hertz
Airflow Horizontal cross flow
Circulation Fans One (1) circulation fan
Exhaust Fans  One (1) exhaust fan
Control Programmable digital controller

DESCRIPTION

The DTI-8973 batch oven sinters Teflon coated pipes and pipe fittings.  Recessed floor tracks are included to accommodate the product carts. Parts are loaded in the batch oven’s product cart, then sintered. The batch oven utilizes two (2) 1x1 view ports located in the doors of the oven. The controls of the batch oven allow for five (5) 8-step programs. The batch oven interior is constructed of 304 stainless steel.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
