DTI-786 Vertical Lift Cure Chamber

SPECIFICATIONS

Overall Dimensions 16′-3″ L x 9′-0″ W x 13′-7″ H                                                        (4953mm x 2743mm x 4140mm)
Interior Dimensions 9′-6″ L x 6′-6″ W x 1′-0″ H                                                            (2896mm x 1981mm x 305mm)
Insulation Thickness  4″ (102mm)
Heat Source Circulated Thermal Oil
Maximum Operating Temperature  400°F (204°C)
Operating Temperature Range  200°F – 400°F (93°C – 204°C)
Operating Voltage  480-volt / 3-phase / 60-hertz
Misc Door type- Vertical Powered Door, Chain Operated
Door speed control- Variable Frequency Drive

DESCRIPTION

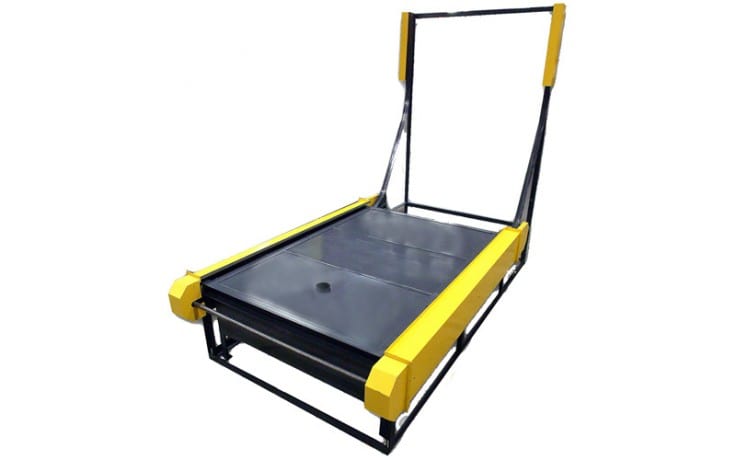

The DTI-786 specialized oven system is used to cure molded composite products. The chamber is horizontal in orientation, and utilizes a hot oil system to heat the oven chamber. The hot oil is circulated through a piping network inside the heated chamber. The product mold is located above the heated piping. The door is powered by an electric motor and gear reducer and includes appropriate safety features to protect the operators.



CUSTOM OVEN MOLDING PROCESS

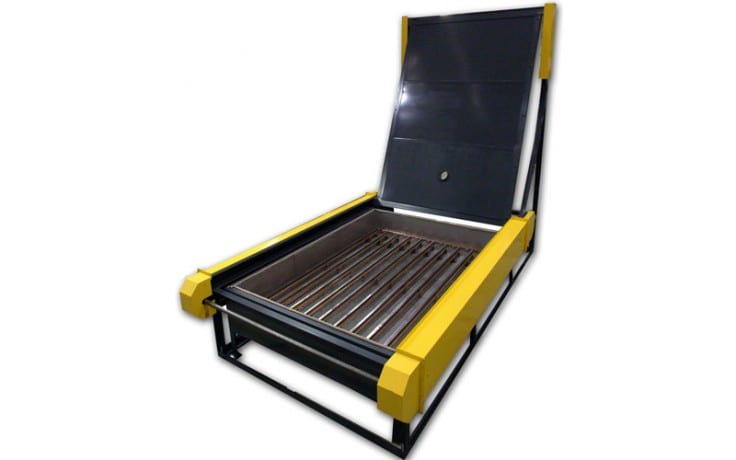

The composite product is poured into the part mold in liquid form and is cured in the chamber until is becomes rigid and is removed from the mold. The unique door design provides a method for the door to open from a horizontal position to a vertical position. This type door does not interfere with overhead equipment associated with the pouring operation and uses a minimum of plant floor space.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
