DTI-475 Cooling Chamber
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

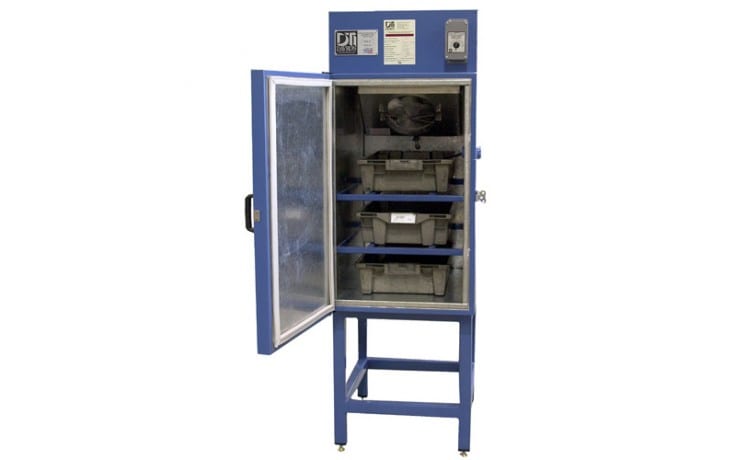

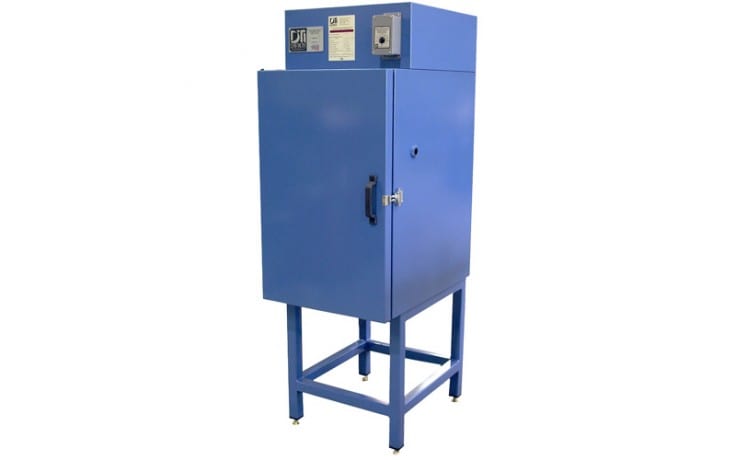

The DTI-475 cooling chamber cools rubber rope used in door and window assemblies in automobiles. The cooler consists of three (3) shelves in order to process three (3) separate material trays. Each tray contains approximately fifteen (15) pounds of rubber rope. The cooler is designed to maintain the rubber rope at a temperature approximately twenty (20) degrees less than the ambient temperature of the plant. The cooler utilizes a product opening sleeve to allow the product to be routed from the cooling chamber to the molding operation.
SPECIFICATIONS
| Chamber External Dimensions | 2′-2″ L x 2′-8″ W x 6′-8″ H (660mm x 813mm x 2032mm) |
| Interior Dimensions | 1′-8″ L x 2′-4″ W x 2′-0″ H (508mm x 711mm x 610mm) |
| Insulation Thickness | 2″ (51mm) |
| Cooling Chamber | One (1) direct expansion cooling system |
| Cooling Medium | R22 Freon |
| Condensing Unit | One (1) unitary refrigeration condensing unit located on top of the chamber |
| Evaporator System | One (1) evaporator system is mounted inside the cooling chamber on the roof of the unit |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
