DTI-391 Clam Shell Stress Relieving Furnace
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

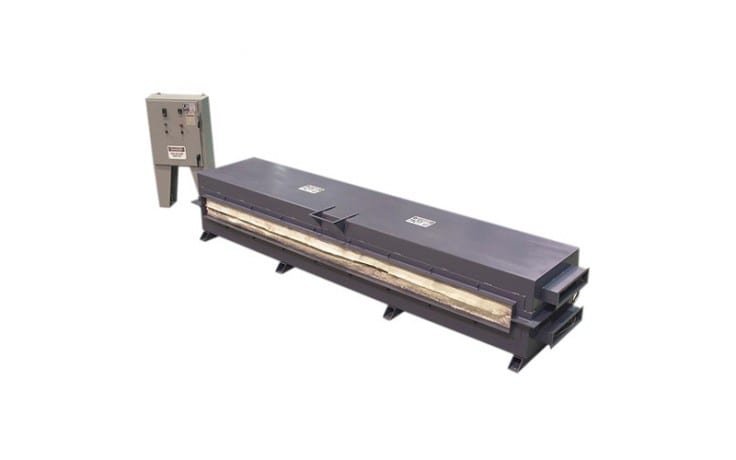

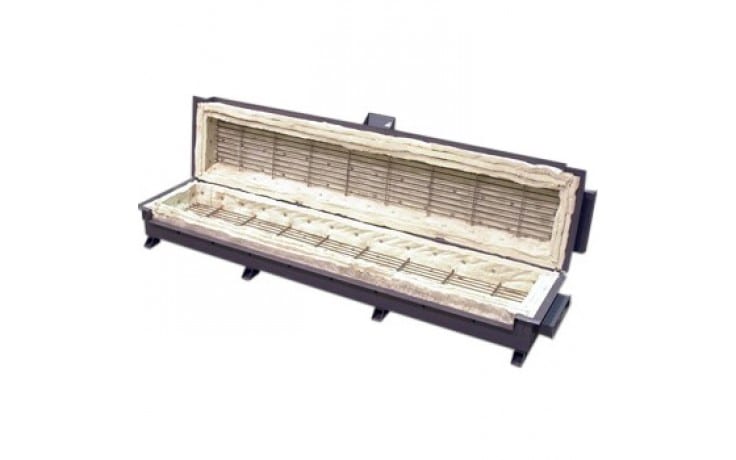

The DTI-391 industrial furnace is used to stress relieve welds on very large header systems used in the power generation industry. This custom oven is a clam shell type design with the two (2) halves hinging in the center of the furnace. The top half is opened manually with the assistance of a crane, and the header is loaded into the furnace. The furnace has tubular heating elements located in the top and bottom halves of the furnace. This allows heat to be supplied to all surfaces of the welds.
Specifications
| Overall Dimensions | 2′-0″ L x 15′-0″ W x 3′-0″ H (610mm x 4572mm x 914mm) |
| Interior Dimensions | 1′-8″ L x 14′-0″ W x 1′-6″ H (508mm x 4267mm x 457mm) |
| Insulation Thickness | 6″ (152mm) of ceramic fiber |
| Heat Source | 18 electric tubular heating elements located in both halves of the furnace |
| Maximum Operating Temperature | 1,400°F (760°C) |
| Operating Voltage | 480-volts / 3-phase / 60-hertz |
| Control | Cascade Temperature Controls |
| Miscellaneous | Digital indicating temperature controller |
| Digital indicating over temperature controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
Features
Custom oven construction features
The heating system uses cascade type controls. The furnace operating temperature is 1,400°F (760°C), and the exterior temperature of the furnace will not exceed 130°F (54°C).
