DTI-389 Drying Batch Oven
Description

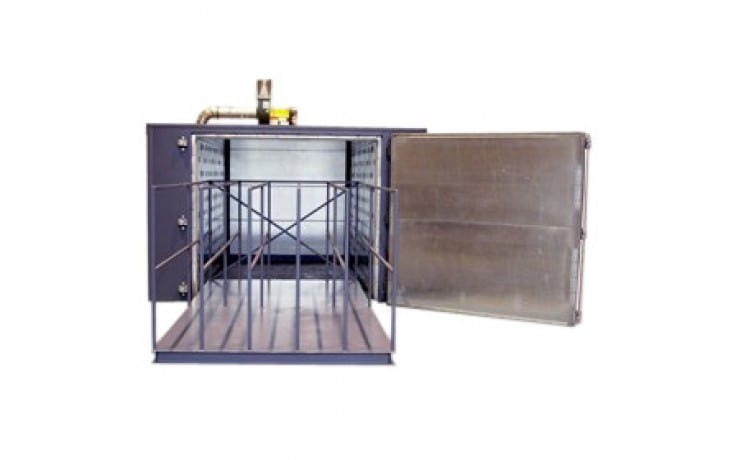

The DTI-389 batch oven dries sheets of honeycomb product. Product is loaded into the custom product cart (provided with the batch oven) and loaded into the heated chamber for drying. Once the set point temperature is selected, the product soaks at temperature for eight (8) hours. Heated air is supplied through a plenum system located on one side wall, passes through the product, and returns through a plenum system located on the other side wall. At the end of the cycle, the product is unloaded.
Features
Batch oven construction features
The batch oven interior is constructed of 16ga aluminized steel, and the exterior is constructed of 16ga carbon steel and painted with high temperature paint.
Specifications
| Exterior Dimensions | 16′-0″ L x 8′-0″ W x 7′-0″ H (4877mm x 2438mm x 2134mm) |
| Interior Dimensions | 12′-6″ L x 6′-0″ W x 6′-0″ H (3810mm x 1829mm x 1829mm) |
| Heat Source | Single electric heater controlled by SCR |
| Max Operating Temperature | 300°F (149°C) |
| Design Operating Temperature | 175°F – 250°F (79°C – 121°C) |
| Insulation Thickness | 4″ (102mm) |
| Operating Voltage | 480-volt / 3-phase / 60-herz |
| Airflow | Horizontal cross flow |
| Circulation Fans | One (1) circulation fan |
| Exhaust Fans | One (1) exhaust fan |
| Control | Digital indicating temperature controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
