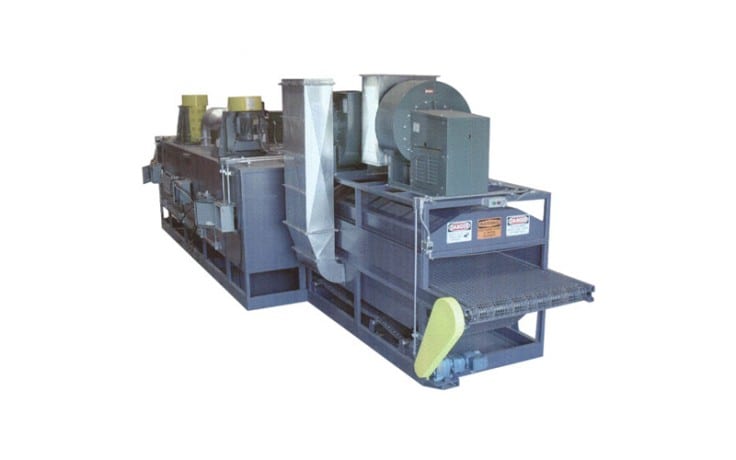

DTI-226-100 Adhesive Curing Conveyor Oven
Process description
The DTI-226-100 conveyor type oven cures adhesive on automotive drum brake linings. Adhesives are applied to the inside of the pre-cured linings to be used for bonding in a later process. Parts enter the curing oven on the conveyor belt, then travel through two heated zones and a cooling zone prior to reaching the exit point of the system. Curing oven speed is set to match the production speed to create a continuous process. An exhaust system is included to exhaust the byproducts of the adhesive cure process from the conveyor oven during production.
Specifications
| Chamber External Dimensions | 26′-3″ L x 7′-4″ W x 5′-6″ H (8001mm x 2235mm x 1676mm) |
| Conveyor Usable Size | 25′-10″ L x 4′-1″ W x 1′-0″ H7874mm x 1245mm x 305mm) |
| Insulation Thickness | 4″ (102mm) |
| Conveyor Extensions | 2′-0″ Entrance and Exit End |
| Conveyor Type | Flat Wire Belt |
| Conveyor Control | PLC controlled variable speed operation |
| Heat Source | Two SCR Controlled Electric Heaters |
| Design Operating Temperature | 150°F – 250°F (66°C – 121°C) |
| Maximum Operating Temperature | 300°F (149°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | PLC control of all functions |
