DTI-1308 Crosslink Conveyor Oven

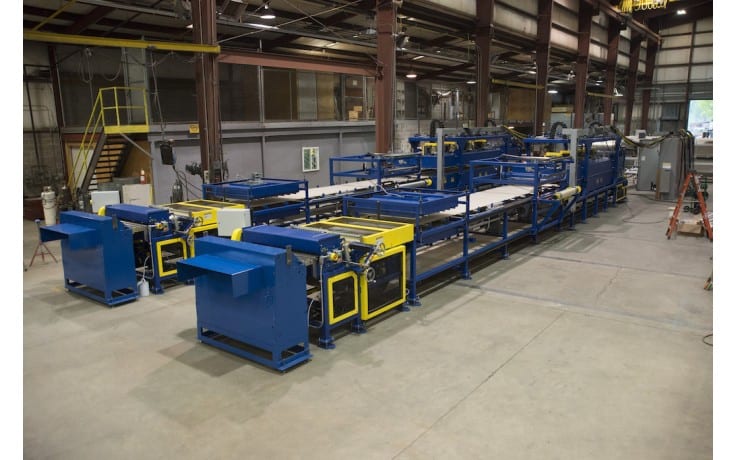

DTI-1308 conveyor oven system by Davron

SPECIFICATIONS

Product Being Processed

Polymer-based continuous web

Length, Width and Height

57′-0″ L x 12′-0″ W x 10’-0″ H                                                                                            (17370mm x 3660mm x 3050mm)

Interior Chamber Dimensions

8’-0″ L x 10’-6” W x 6’-3” H                                                                                                  (2440mm x 3200mm x 1910mm)

Type of Heating System

Multiple-zone modulating electric heat

Conveyor Type

Teflon-coated fiberglass mesh

Operating Temperature

350°F (149°C)

Max Temperature

500°F (260°C)

Controls

PLC control with operator HMI, UL-listed control enclosure

CUSTOMER DIRECTIVE

The customer extrudes a continuous web of material and the purpose of this system is to crosslink the material web composition by thermal processing. Upon completion of the crosslink process the material is cooled and conversion equipment included in the system completes the remaining processes.

DESCRIPTION

The DTI-1308 system provides a combination of radiant heat followed by forced convection from both above and below the product web. This controlled thermal process provides the required heating cycle to crosslink the material.

An additional system applies a protective layer of film on top of the web that is removed after the crosslink process is completed.

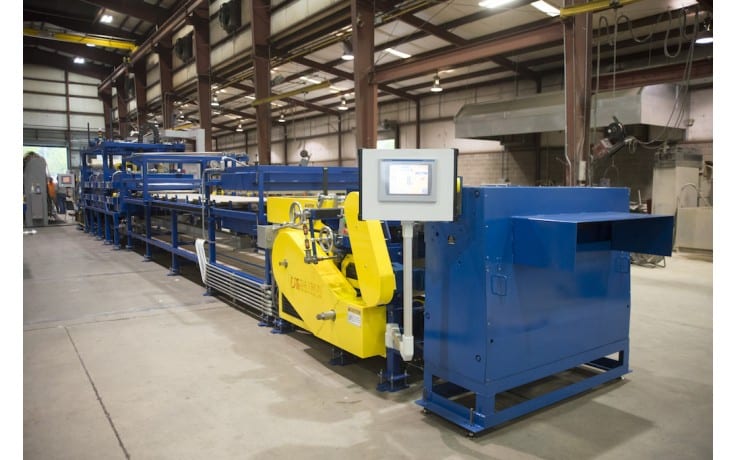

The product web is then cooled with forced-air cooling and edges are trimmed and crosscut as required to complete the process.

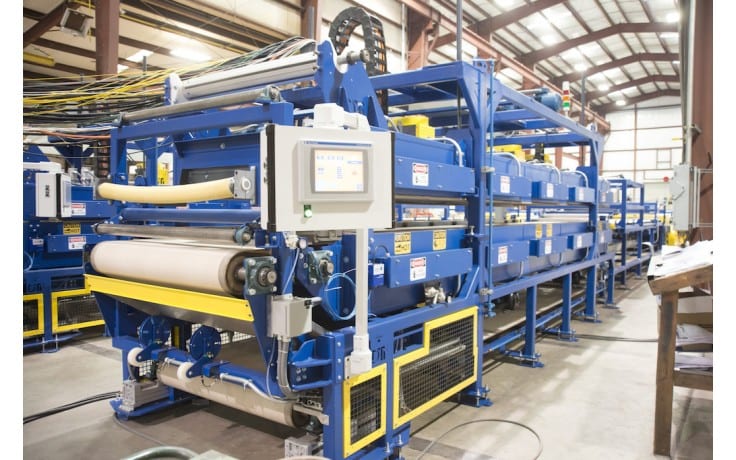

All machine functions are controlled from the two operator HMI (touch screen) terminals located at each end of the equipment.

The entire system is fully assembled and factory tested for operational verification prior to shipment.

ALTERNATIVE CAPABILITIES

Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:

  • Industries Served: Aerospace, Aviation, Automotive, and general web manufactured products.

  • Materials Processed: Various web products including Polyolefin,Polyethylene,Copolymers, Fluoropolymers, and Elastomer based products requiring thermal processing. The system can also be used for many other types of products and can be designed in any size required.

  • Other Processes: Preheating, Curing, Drying, Solvent Drying, Bonding

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
