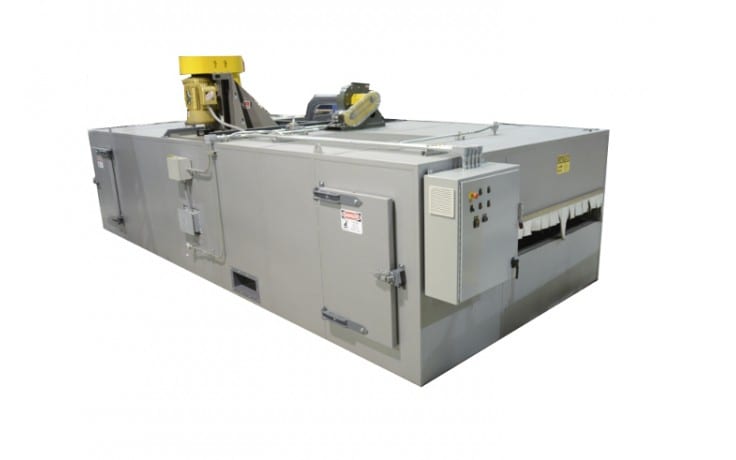

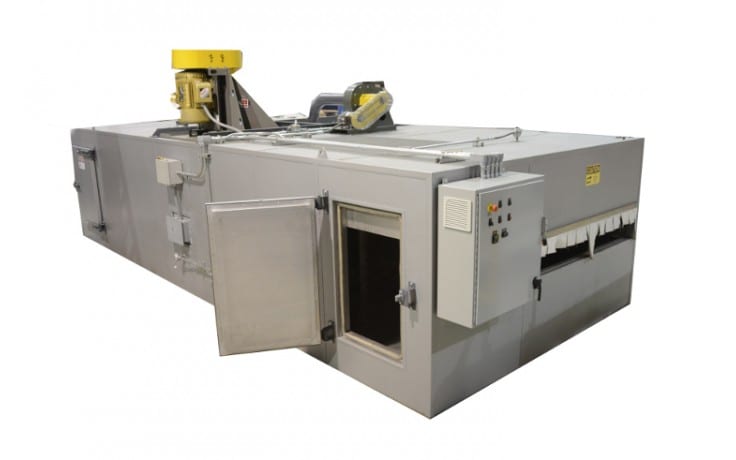

DTI-1230 Tunnel Curing Oven

SPECIFICATIONS

Overall dimensions 25′-2″ L x 10′-8″ W x 5′-10″ H                                                            (7671mm x 3251mm x 1778mm)
Interior dimensions 25′-0″ L x 6′-2″ W x 4′-4″ H                                                                (7620mm x 1880mm x 1321mm)
Insulation thickness  4″ (102mm)
Heat Source Single electric heater controlled by SCR
Maximum operating temperature  200°F (93°C)
Operating temperature range  122°F – 158°F (50°C – 70°C)
Fans One (1) circulation fan, one (1) exhaust fan
Airflow  Vertical Top/Down
Operating voltage  480-volt / 3-phase / 60-hertz
Control  Digital Indicating Temperature and Over Temperature

DESCRIPTION

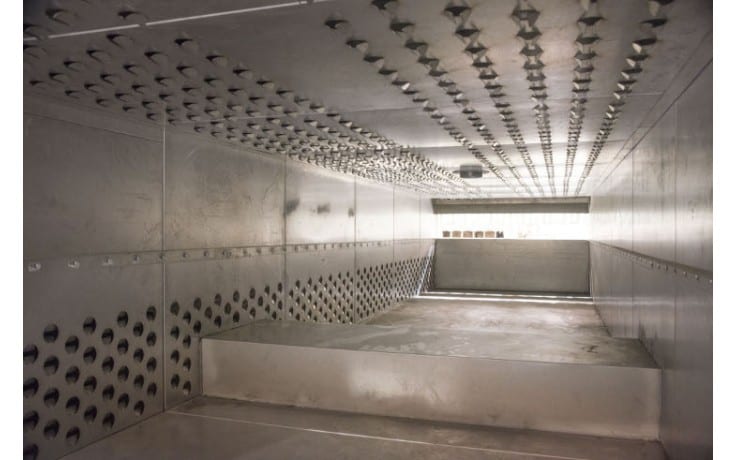

This curing tunnel oven is used to cure an adhesive component on filter media used in the automotive industry. The curing tunnel oven was designed to accommodate an existing conveyor system that was part of an existing production line. Filter media and molds are loaded onto the conveying system and the urethane component is added to the product in a process located upstream. The parts enter the curing chamber and heated air is impinged on the parts in a vertical down airflow pattern.

FEATURES

Tunnel Curing Oven Construction Features

This tunnel curing oven is constructed with a structural steel frame internal to the insulated wall system that supports the entire unit. The oven interior is constructed of aluminized steel and the exterior is carbon steel painted with a high temperature paint. The oven interior and exterior is separated by 4 inches of mineral wool insulation. The source for the oven is electric heat controlled by SCR.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
