DTI-1140 Heat Treat Indexing Conveyor Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

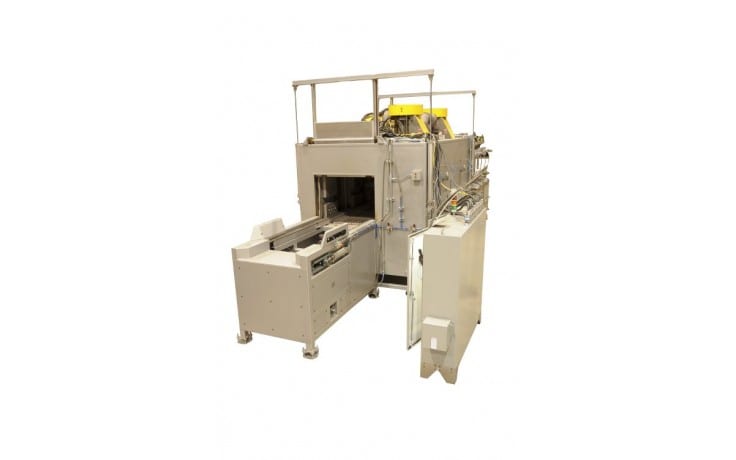

The DTI-1140 Indexing Conveyor Oven System is used to heat treat steel components used in the automotive industry. The system includes 1 oven, 1 quench tank, 1 rinse tank, and a pick and place system.

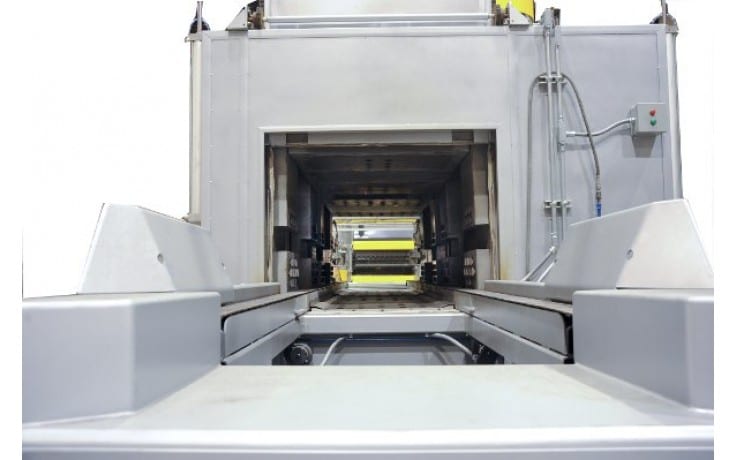

The parts are loaded in baskets and loaded onto the conveying system of the oven with a fork truck. The oven includes two zones of temperature control. The load area of the conveying system is 3 positions long so there are always 3 baskets of product ready to enter the oven.The first zone of the oven allows the product to ramp to the set point temperature. In the second zone the product soaks at the set point temperature for a predetermined amount of time.

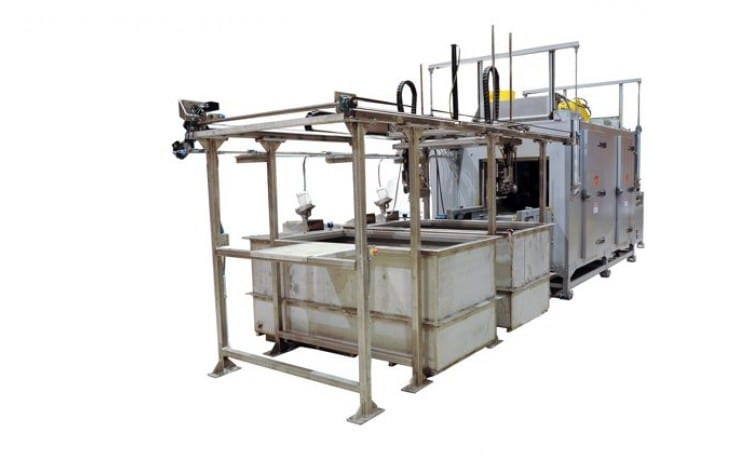

Upon completion of the heat treating process the basket indexes out of the heated chamber to the unload position of the conveying system. The pick and place system then picks up the basket and moves it to the quench tank where the basket soaks for a predetermined amount of time. At this point the basket is transported to the rinse tank where it soaks for a predetermined amount of time. The basket is then transported to the unload platform.
Both the quench tank and the rinse tank utilize electric heaters to ensure that the solution in each tank is at the proper temperature prior to the start of production.
Specifications
| Chamber External Dimensions | 29′-8″ L x 8′-8″ W x 9′-1″ H (9042mm x 2642mm x 2769mm) |
| Conveyor Usable Size | 29′-8″ L x 4′-0″ W x 2′-6″ H (9042mm x 1219mm x 762mm) |
| Insulation Thickness | 10″ (254mm) |
| Conveyor Extensions | 10′-11″ (3327mm) entrance and 3′-3″ (991mm) exit end |
| Conveyor Type | Oven class chain |
| Conveyor Control | PLC controlled index based on time |
| Heat Source | 2 full modulating natural gas burners |
| Design Operating Temperature | 392°F – 932°F (200°C – 500°C) |
| Maximum Operating Temperature | 1004°F (540°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | PLC control of all functions with operator touch screen (HMI) |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
