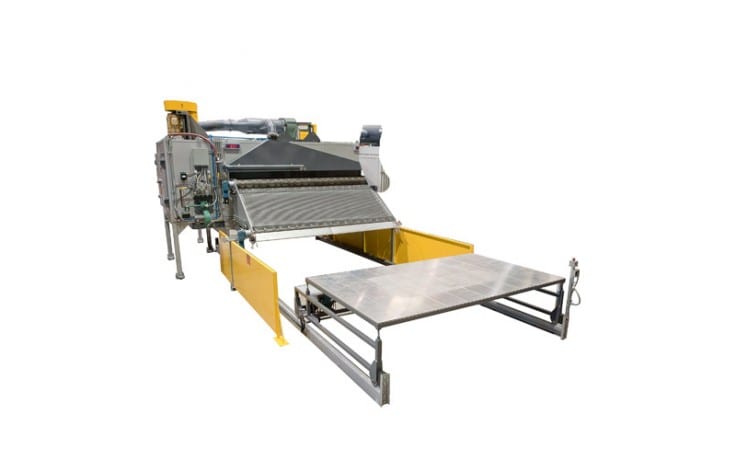

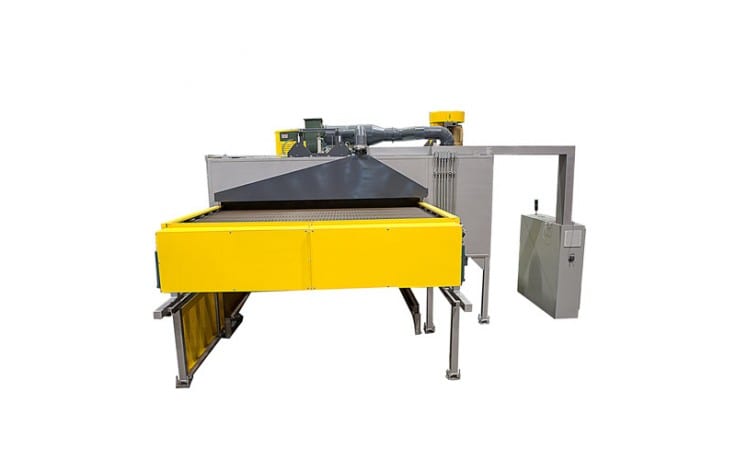

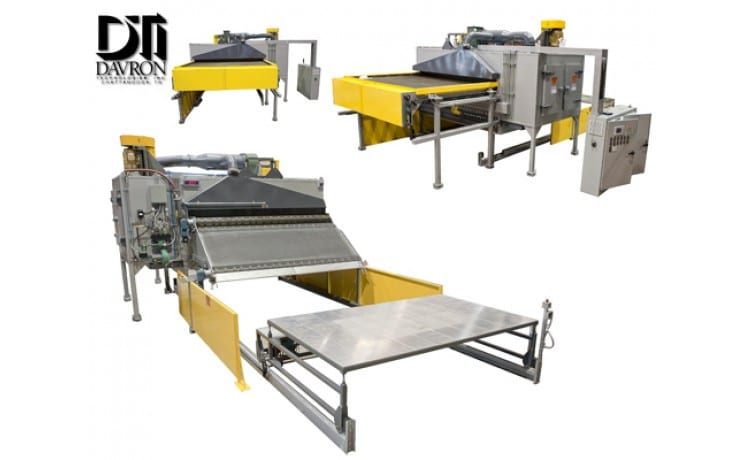

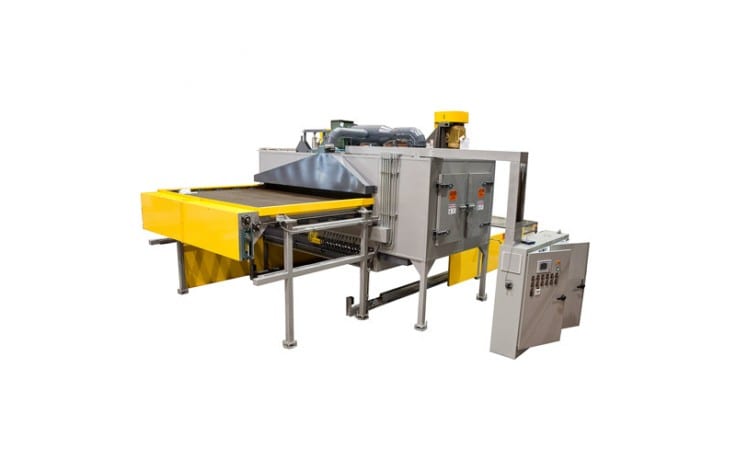

DTI-1138 Double Tier Pre Heating Conveyor Oven

SPECIFICATIONS

Overall dimensions 39′-0″ L x 23′-5″ W x 13′-4″ H                                                        (11887mm x 7137mm x 4064mm)
Oven dimensions 8′-0″ L x 17′-5″ W x 10′-4″ H                                                          (2438mm x 5309mm x 3150mm)
Insulation thickness  6″ (152mm)
Maximum operating temperature  Convection 500°F (260°C)
Infrared 850°F (454°C)
Operating temperature range  Convection Zone 300°F – 450°F (149°C – 232°C)
Infrared Zone 200°F – 800°F (93°C – 427°C)
Fans One (1) circulation fan, one (1) exhaust fan
Airflow  Vertical down
Operating voltage  480-volt / 3-phase / 60-hertz
Control  PLC with Operator Touch Screen for all functions
Misc Heat source for IR oven is electric panel heaters controlled by SCR
Heat source for convection oven is a single full modualting natural gas burner package

DESCRIPTION

The DTI-1138 industrial oven is a thermoforming solution that preheats interior components used in the automotive industry.  Product can be loaded on the oven conveying system with an automated pick and place system or manually by operators.  One product is conveyed through the upper level of the oven and heated by forced air convection.

Another product is shuttled in and out of the lower level of the oven and heated by infrared panels.  The infrared panels are arranged in individual zones of control to allow for variations of heating across the entire surface of the carpet.  After the preheating process is complete, both products exit the two levels of the oven simultaneously.  They are then matched together to form a completed preheated vehicle set ready to be press formed as a single unit.  The cycle times can be varied and can be as short as 30 seconds.

FEATURES

Automotive Supplier Advantages

  • Automated processing from precut blanks of material to preheated vehicle set ready to press
  • Part to part cycle times as short as 30 seconds in this application
Automotive System Features
  • Upper convection oven section is heated by natural gas and the lower infra red section is electrically heated
  • PLC controlled with operator  touch screen (HMI)
  • All motion functions controlled by servo for accuracy and speed

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
