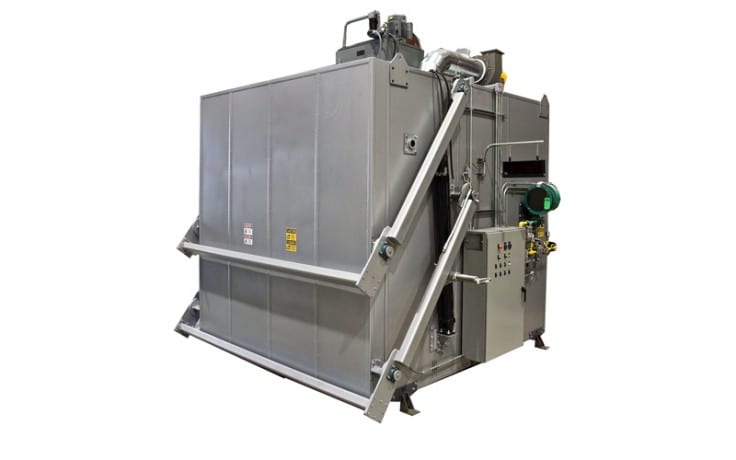

DTI-1096 Pre Heat Batch Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION
The DTI-1096 batch oven is used to preheat steel molds used in the automotive industry. The molds are processed in groups of 12 and weigh approximately 16,000 pounds. The operating temperature range of the oven is 450F to 750F.
SPECIFICATIONS
Exterior Dimensions | 10′-11″ W x 11′-3″ H x 11′-10″ D (3327mm x 3429mm x 3607mm) |
Interior Dimensions | 7′-7″ W x 9′-11″ H x 7′-7″ D (2311mm x 3023mm x 2311mm) |
Heat Source | Single full modulating natural gas burner package |
Maximum operating temperature | 842°F (450°C) |
Design Operating temperature | 482°F – 752°F (250°C – 400°C) |
Insulation Thickness | 8″ (203mm) |
Control | Digital Indicating Temperature and Over Temperature |
Operating voltage | 480-volt /3-phase /60-hertz |
Airflow | Horizontal cross flow |
Circualtion Fans | One (1) Circulation Fan |
Exhaust Fans | One (1) Exhaust Fan |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
