DTI-1086 Batch Curing Oven

SPECIFICATIONS

Exterior Dimensions  8′-5″ wide x 6′-3″ high x 6′-3″ long
Interior Dimensions 5′-11″ wide x 5′-3″ high x 3′-10″ long
Heat Source Single electric heater controlled by SCR
Maximum  temperature
Operating temperature
300° F
300° F
Insulation Thickness  4″
Operating voltage  380-volt / 3-phase / 50-hertz
Airflow Horizontal cross flow
Circulation Fans One (1) circulation fan
Exhaust Fans  N/A
Control Digital Indicating Temperature and Over Temperature

DESCRIPTION

The DTI-1086 Batch Curing Oven serves a dual purpose.  It is used for both curing and performing reliability test on polypropylene windings.  These windings  are used in the manufacturing of Film Capacitors.  The oven has an extremely tight temperature tolerance for the reliability testing which is a 120 day test.  For the testing, the operating temperature of the oven is 257° F +/- 1.8° F.  The product load is 700 pounds per batch and product is loaded in the oven on  custom product carts that were provided with the oven.  Airflow within the heated chamber is a horizontal cross flow and the oven heat source is a single electric heater controlled by SCR.



FEATURES

BATCH CURING OVEN CONSTRUCTION FEATURES

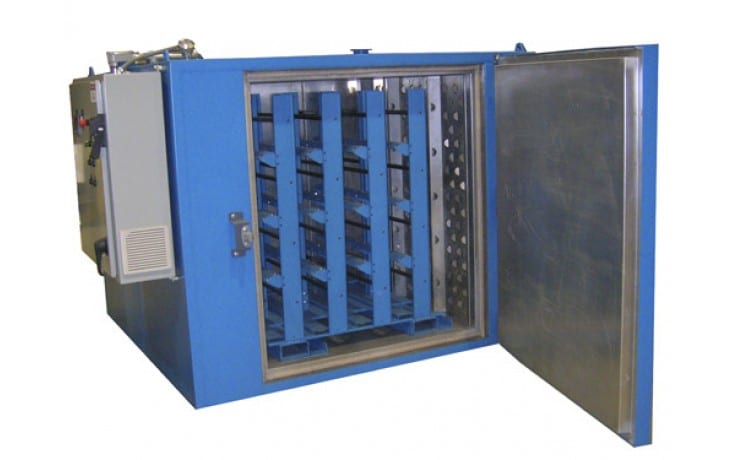

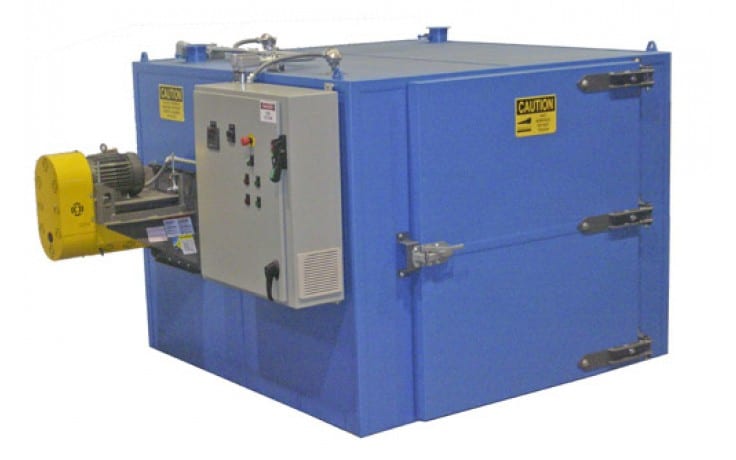

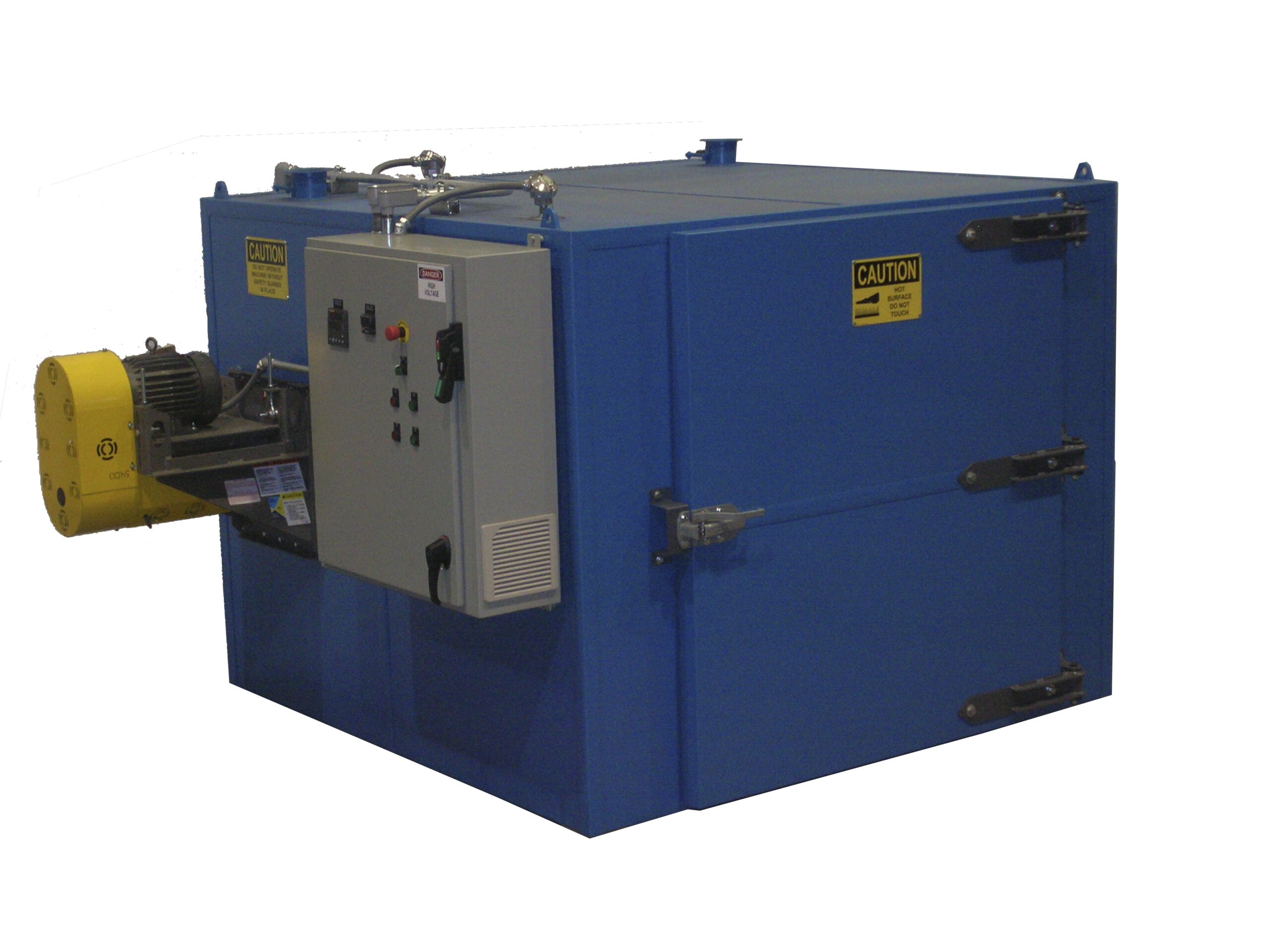

This batch curing oven is constructed with strucutral steel framework that supports the entire oven.  The oven utilizes one (1) vertically hinged full opening door located on the entrance and exit end of the oven.  The oven interior is constructed of aluminized steel and the exterior is carbon steel painted with high temperature paint.
