DTI-1061 Stress Relieving Conveyor Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

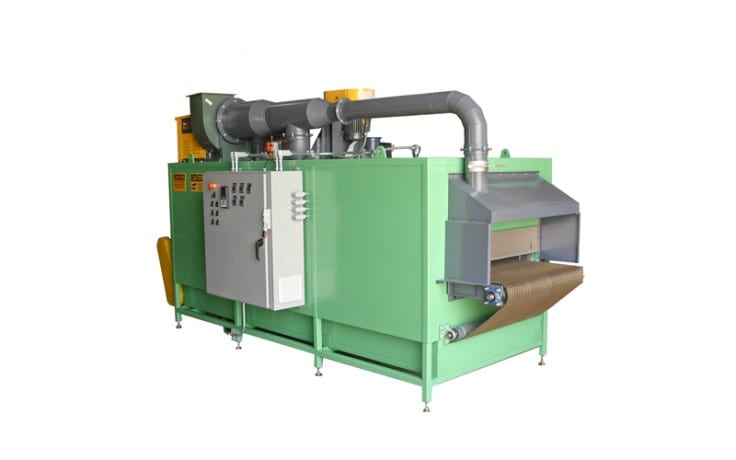

The DTI-1061 stress relieving conveyor oven operates in a continuous manner at approximately 8′ per minute. The oven is used to stress relieve spring bundles used in the furniture industry. The operating temperature of the oven is 700° F and the stress relieving cycle time is approximately two (2) minutes. The oven stress relieves approximately 720 bundles or 1,400 pounds of springs per hour. The oven utilizes a programmable temperature controller and includes three (3) access doors to provide access to the conveying system for ease of maintenance and cleaning.
SPECIFICATIONS
| Chamber External Dimensions | 16′-2″ L x 6′-3″ W x 5′-9″ H (4928mm x 1905mm x 1753mm) |
| Conveyor Usable Size | 15′-0″ L x 3′-1″ W x 2′-6″ H (4572mm x 940mm x 762mm) |
| Insulation Thickness | 8″ (203mm) |
| Conveyor Extensions | 1′-0″ (305mm) entrance end, 1′-0″ (305mm) exit end |
| Conveyor Type | Wire Mesh Belt |
| Conveyor Control | Fixed |
| Heat Source | Single Electric Heater controlled by SCR |
| Design Operating Temperature | 700°F (371°C) |
| Maximum Operating Temperature | 800°F (427°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | Digital Indicating Temperature and Over Temperature |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
