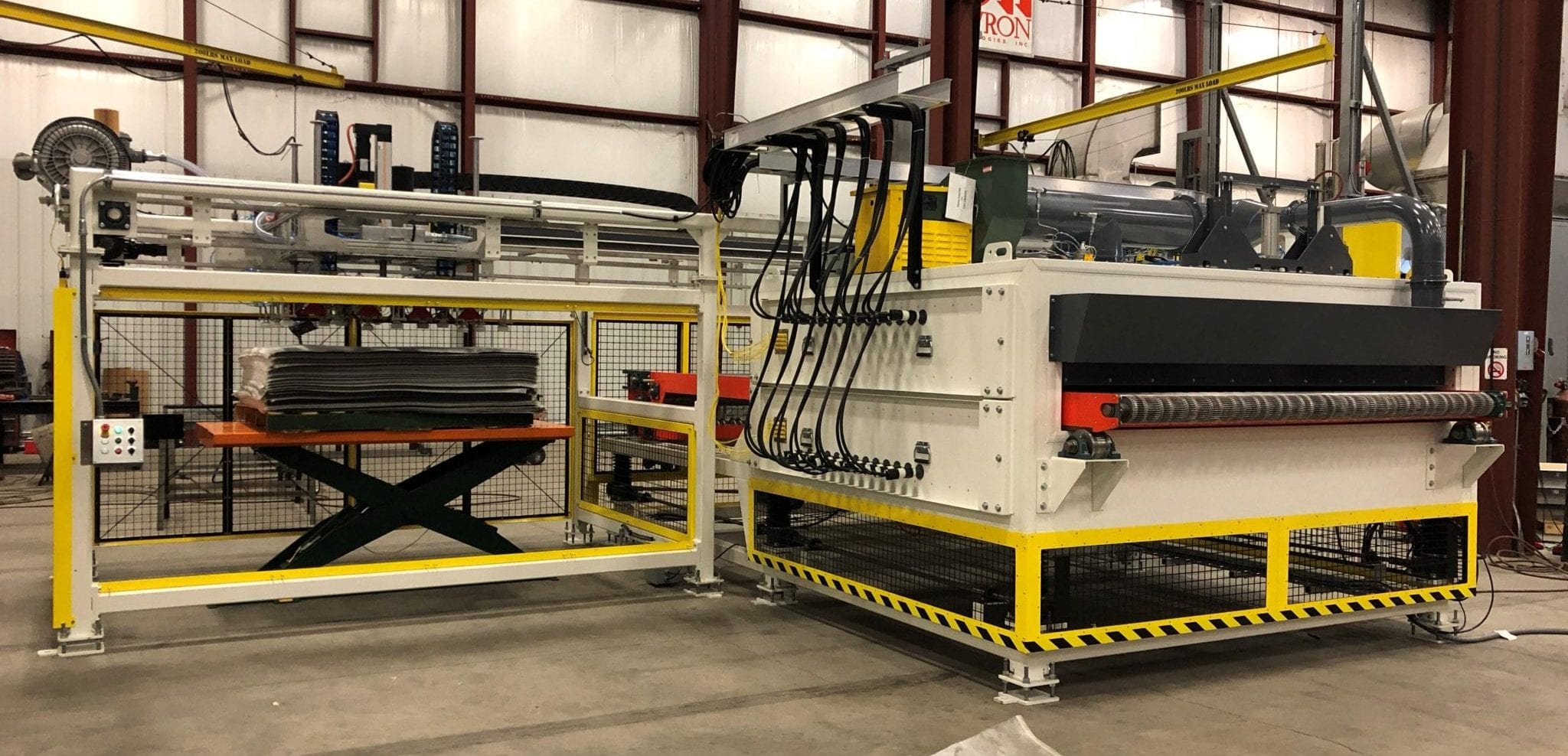

DTI-1399 IR Preheat Oven

SPECIFICATIONS

Product Being Processed

Insulating pad product, material used in the Automotive Industry

Overall Length, Width, Height

26′-10″ L x 27′-6″ W x 10′-0″ H                                (8179mm x 8382mm x 3048mm)

Heated Chamber Length, Width, Height

8′-0″ L x 9′-6″ W x 3′-0″ H                                  (2438mm x 2896mm x 914mm)

Type of Heating System

IR Heaters

Design Operating Temperature

380°F – 450°F (193°C – 232°C)

Maximum Operating Temperature

500°F (260°C)

Product Support

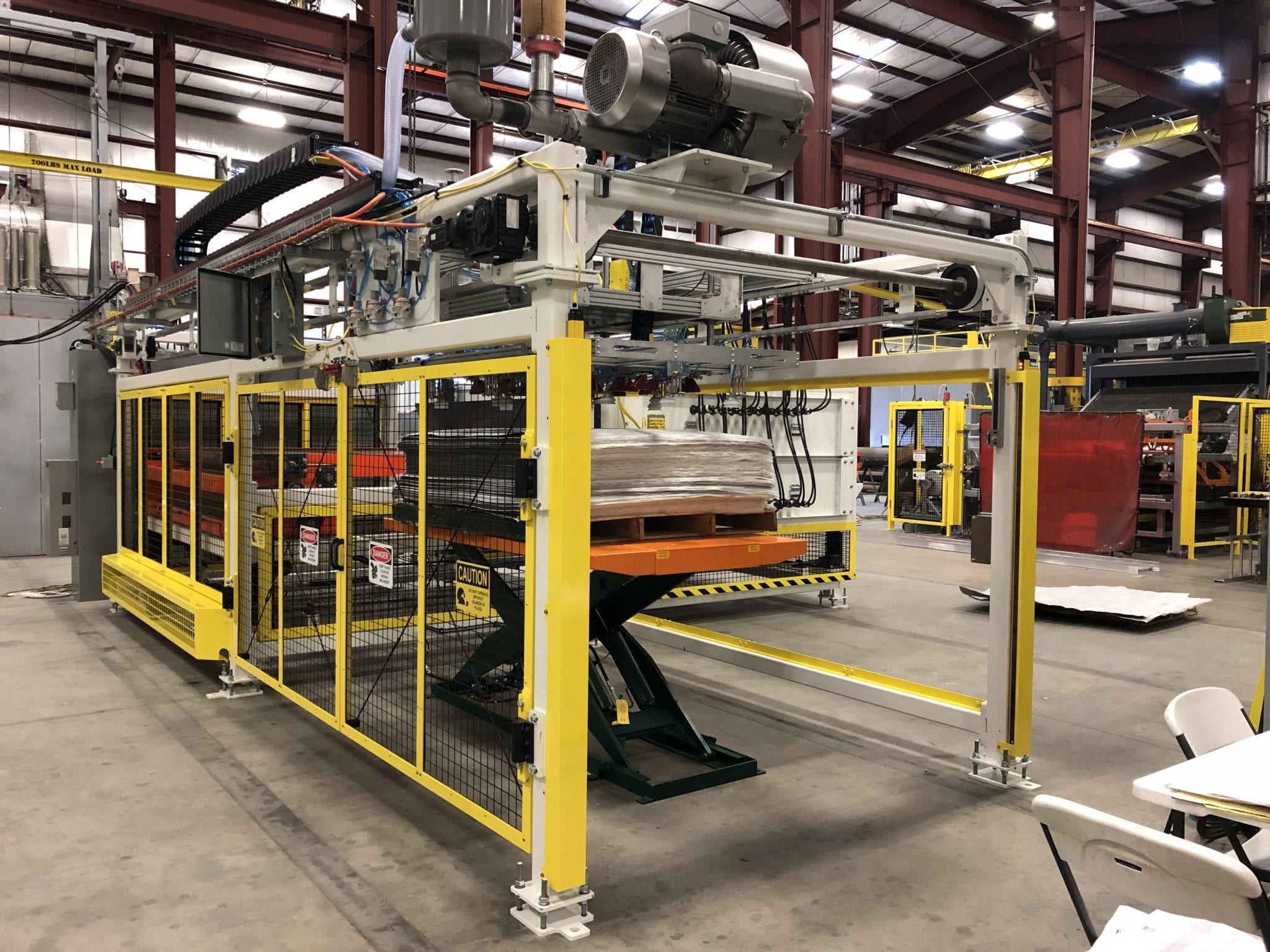

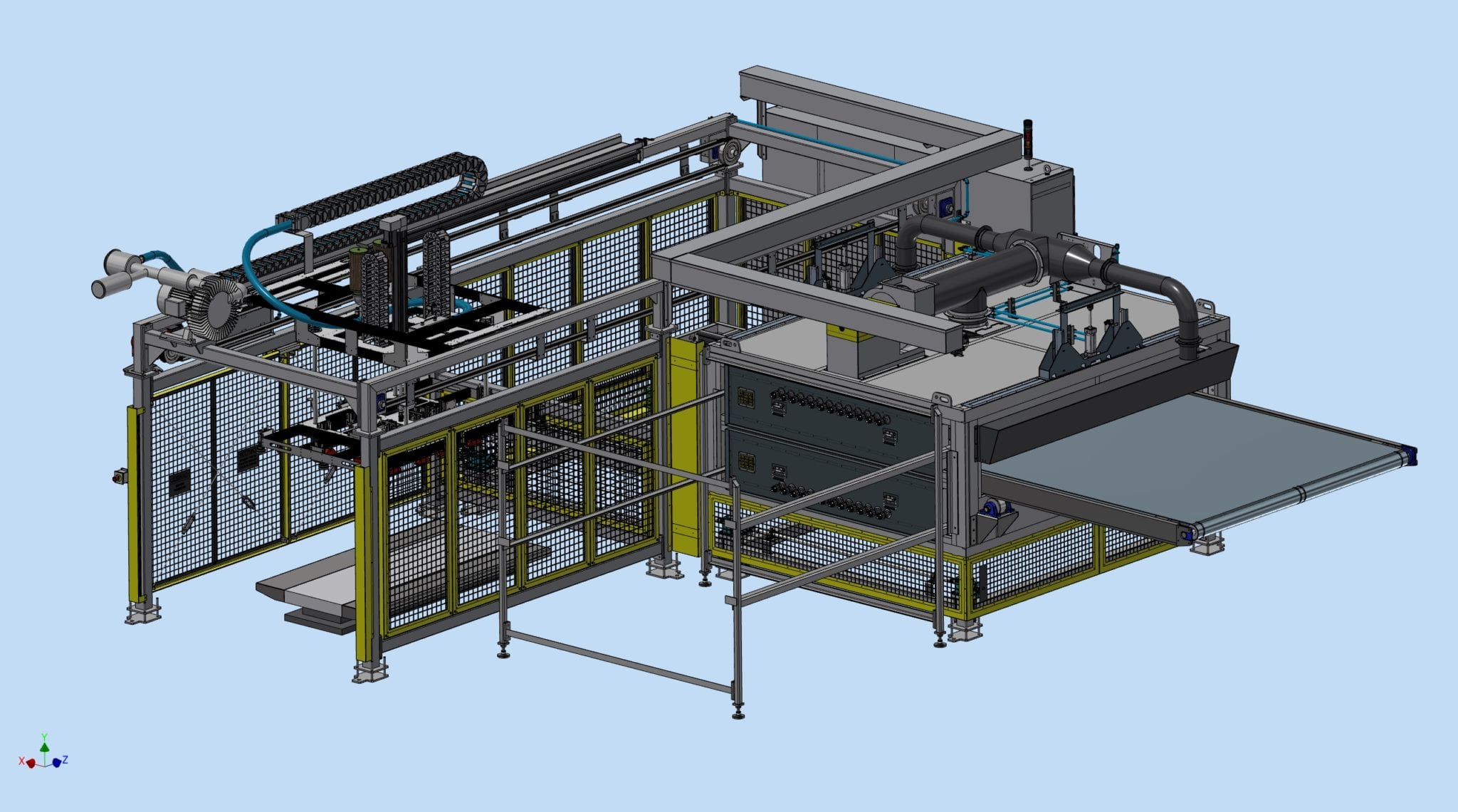

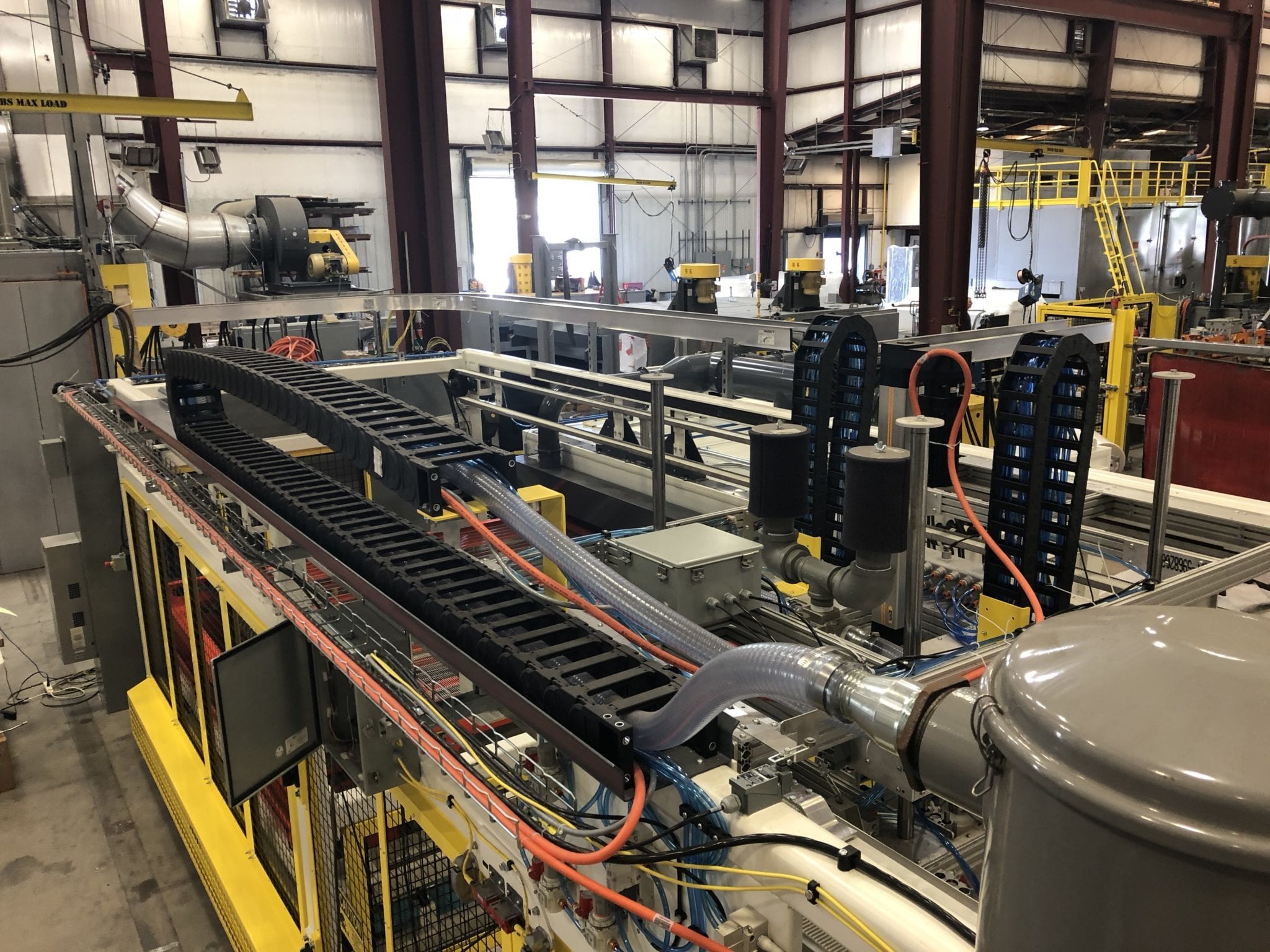

Indexing Pick and Place system for loading the product onto an indexing/shuttle conveyor to the oven. The product leaves the oven by the conveyor shuttling forward which delivers the product to a forming press.

Controls

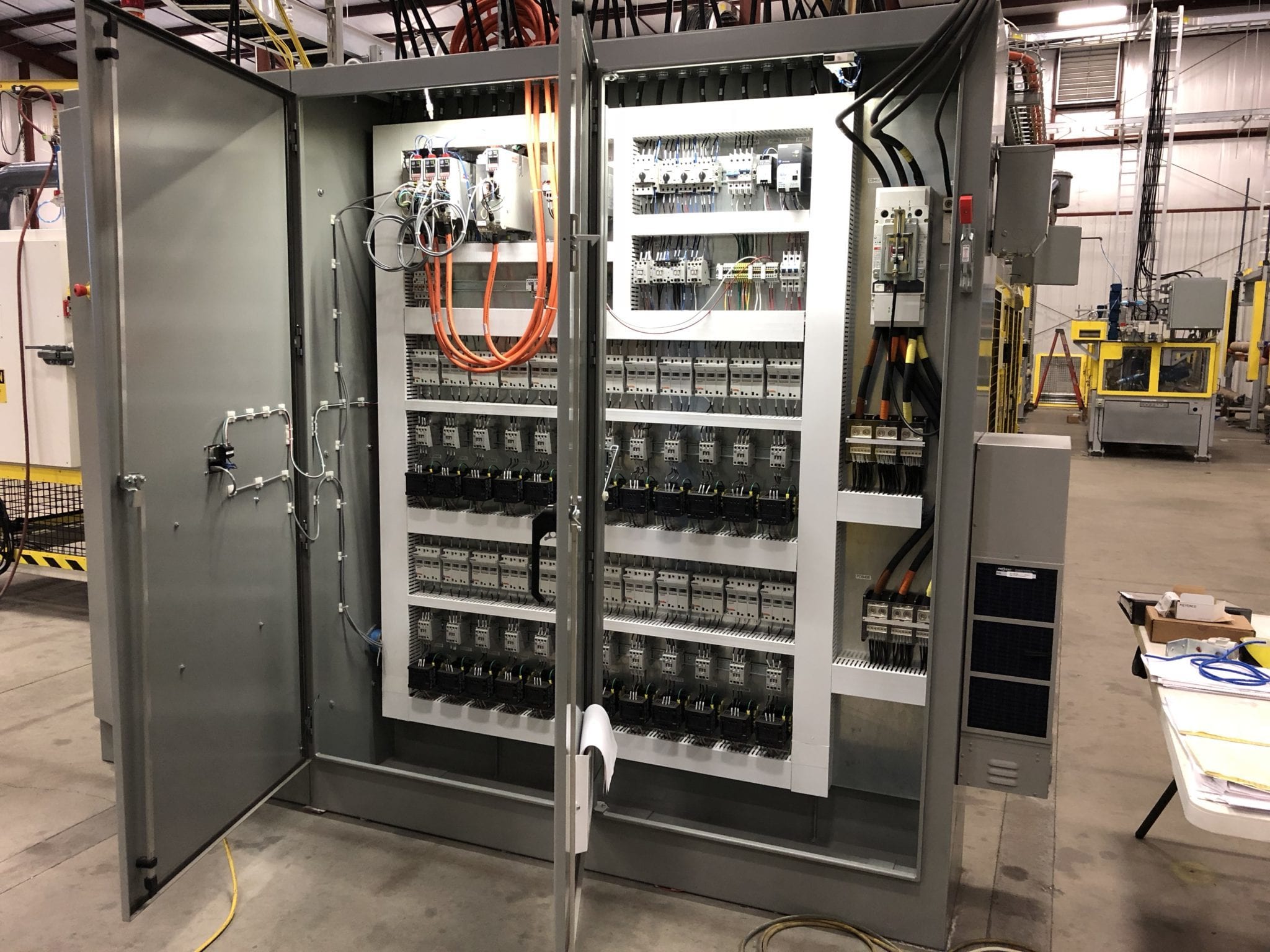

PLC controls with operator HMI, UL listed control enclosure

CUSTOMER DIRECTIVE

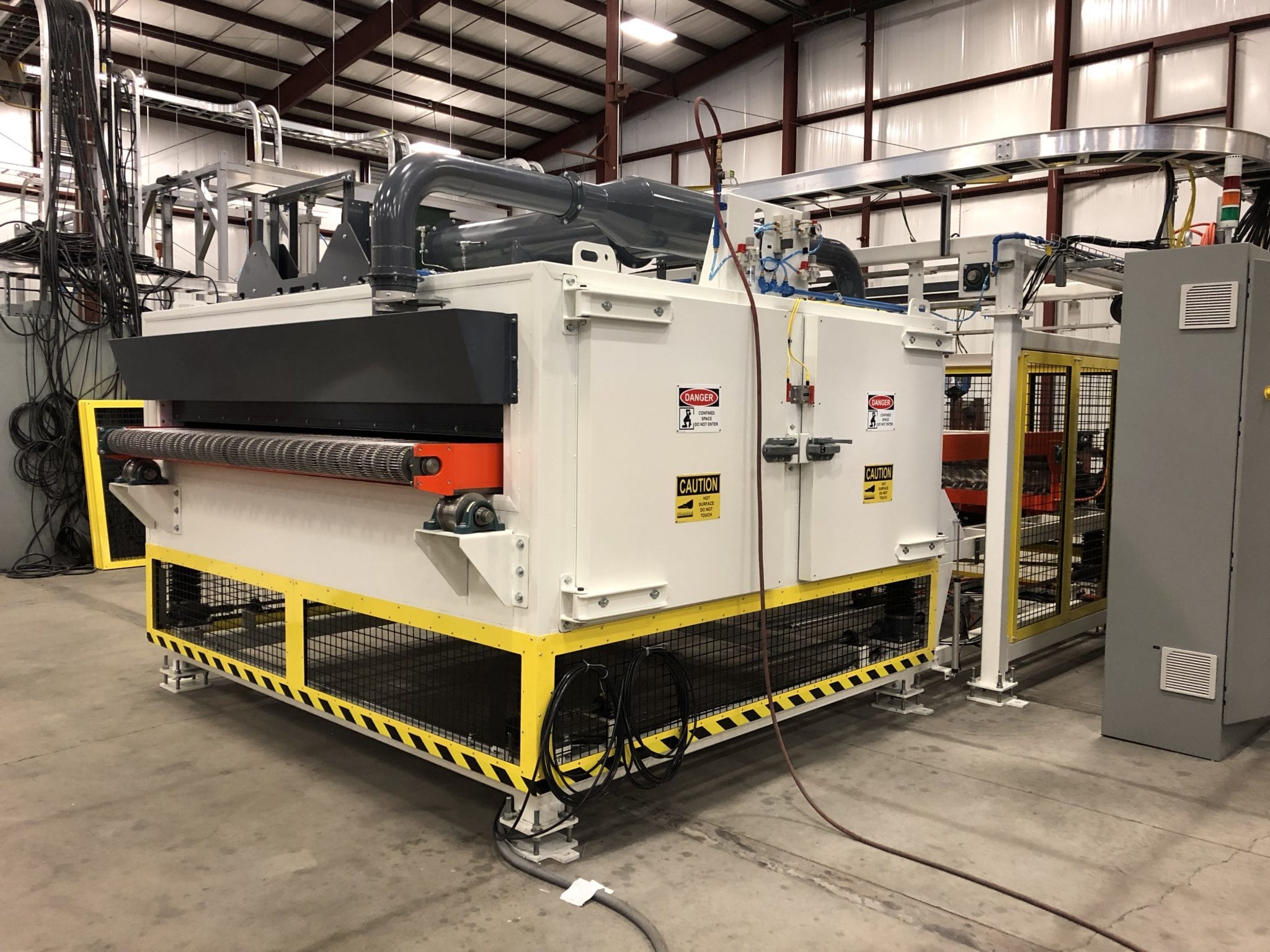

Our customer wanted to place the products on an indexing shuttle conveyor that would move the product into the heated chambers for process.  The IR Heaters heat the product from top and bottom simultaneously.

DESCRIPTION

The DTI-1399 oven and transfer conveyor system design does not required any special foundations or floor pits for installation. The control system includes PLC control of the ramp and soak temperature profiles and starting sequence for all components and flame safety systems. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.

ALTERNATIVE CAPABILITIES

Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:

  • Airflow: Designs can be completed to provide airflow from any direction within the heated chamber as required by the product. This particular process is vertical up and down airflow but it can be horizontal from either side.
  • Industries Served: Automotive, Insulate and Carpet manufacturing/Regeneration, or any industry that requires batch processing.
  • Materials Processed: Particularly any Automotive Carpet or Insulating Pad Product, with a directional flow requirement. The oven /conveyor system can also be used for many other types of products and can be designed in any size required.
  • Other Processes: Preheating, Curing, Drying, Solvent Drying, Bonding
  • Heating Systems: Modulating Gas Fired Direct or Indirect, Electric, or Thermal Oil.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
