Drying Ovens

High Precision Custom Drying Ovens Made in America

Davron’s drying ovens are designed to provide consistent and efficient drying of your product from cycle to cycle. This is achieved by our uniform airflow, precise temperature tolerances, exhaust systems, and control schemes.

With over 100 years of combined experience, Davron designs and manufacturer’s drying ovens in batch oven, conveyor oven, vertical oven, and specialty oven configurations. Our drying ovens are provided with a structural steel frame internal to the insulated walls of the oven. This system provides for a robust oven ready for any industrial environment and will provide many years of service.

Featureset

Features can be customized depending on your needs and oven configuration. Our drying ovens can be heated by various means including: gas burner systems, electric heaters, radiant panels, or infrared systems. They can utilize many types of conveying systems, product trays, floor tracks, product carts, and door designs.

The airflow within these drying ovens can be vertical in a top-down or bottom up arrangement, horizontal cross flow, or a combination of these. Our drying ovens utilize VFD’s to control the recirculating air and exhaust to provide an energy efficient system and reduce operating cost.

Stainless steel can be utilized for the interior and exterior to prevent corrosion where applicable.  The drying oven control system can range from very simple to complex PLC systems as required.

Build of Materials

Davron drying ovens can include, but are not limited to, the following:

  • Welded structural steel framework for overall support
  • Heavy gauge aluminized or stainless steel interior sheeting and air distribution systems
  • Heavy gauge paint grip exterior sheeting primed and painted with high temperature oven class paint
  • Our construction technique provides a finished product that can be handled as a single piece or in bolt together modules on large systems for ease of installation
  • Our ovens are not constructed of “tongue and groove” panels
  • Hinged access doors are provided for maintenance and cleaning access along the length of the equipment when required
  • For conveyor oven applications, a combination of accurate temperature control, temperature uniformity within the heated chamber, and conveyor speed provide the high level of control required for a successful curing
  • Simple digital controls for basic operation or PLC controls for complex requirements. Systems can also communicate with plant networks if required
  • Electrical enclosure is assembled in accordance with UL508A guidelines and has a UL508A label
  • All ovens meet NFPA, OSHA, and NEC requirements
  • CE certification is available if required

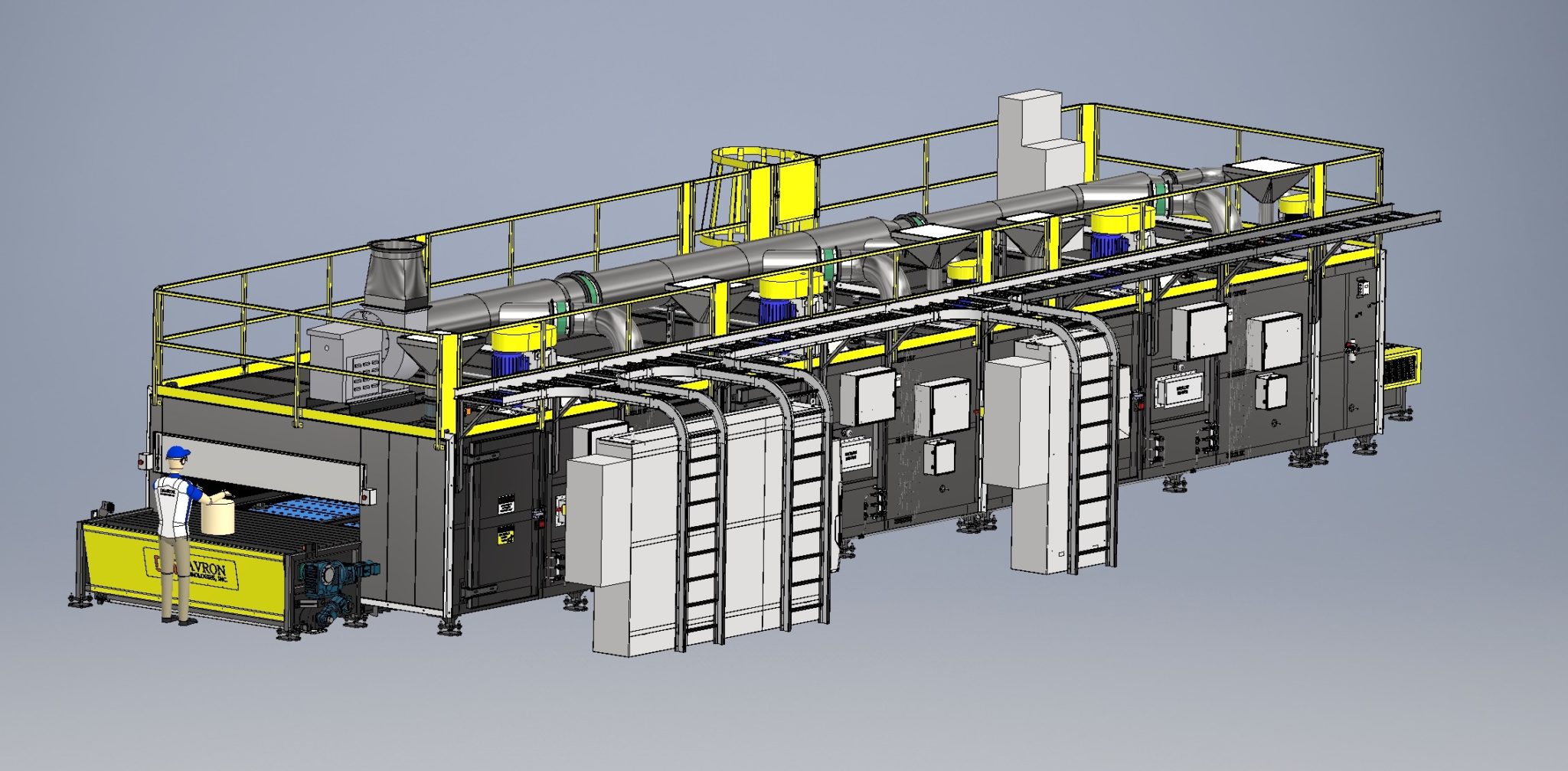

Examples of Drying Ovens We've Built
