DTI – 1371 Preheating Oven System

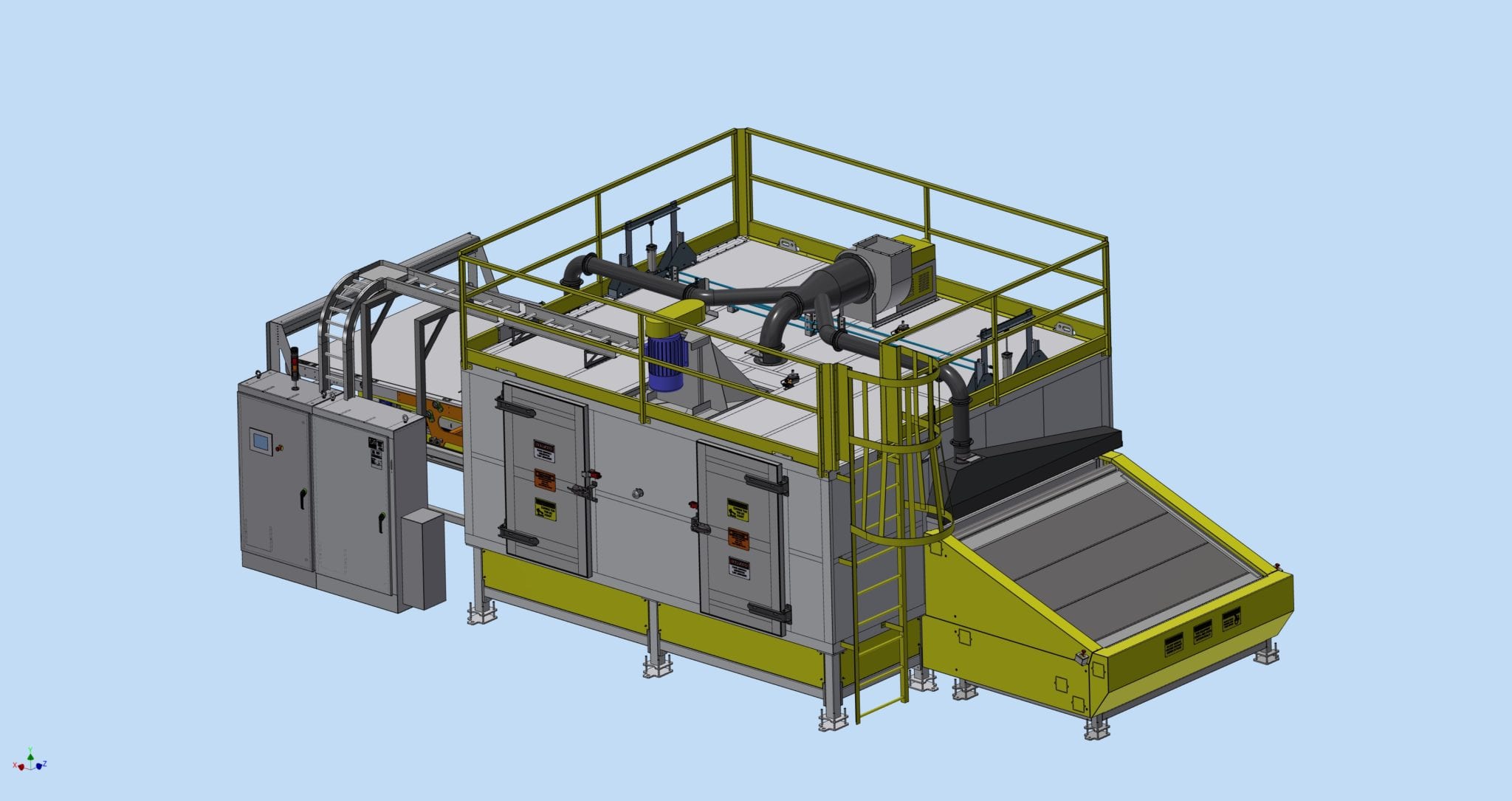

DTI–1371 Preheating Indexing Conveyor Oven System

SPECIFICATIONS

Product Being Processed	Insulating pad product, material used in the Automotive Industry
Overall Length, Width, Height	33′-9″ L x 14′-3″ W x 12′-0″ H (10287mm x 4343mm x 3658mm)
Heated Chamber Length, Width, Height	15′-0″ L x 12′-0″ W x 5′-0″ H (4572mm x 3658mm x 1524mm)
Type of Heating System	Modulating Natural Gas Fired Burner
Design Operating Temperature	350°F – 500°F (177°C – 260°C)
Maximum Operating Temperature	500°F (260°C)

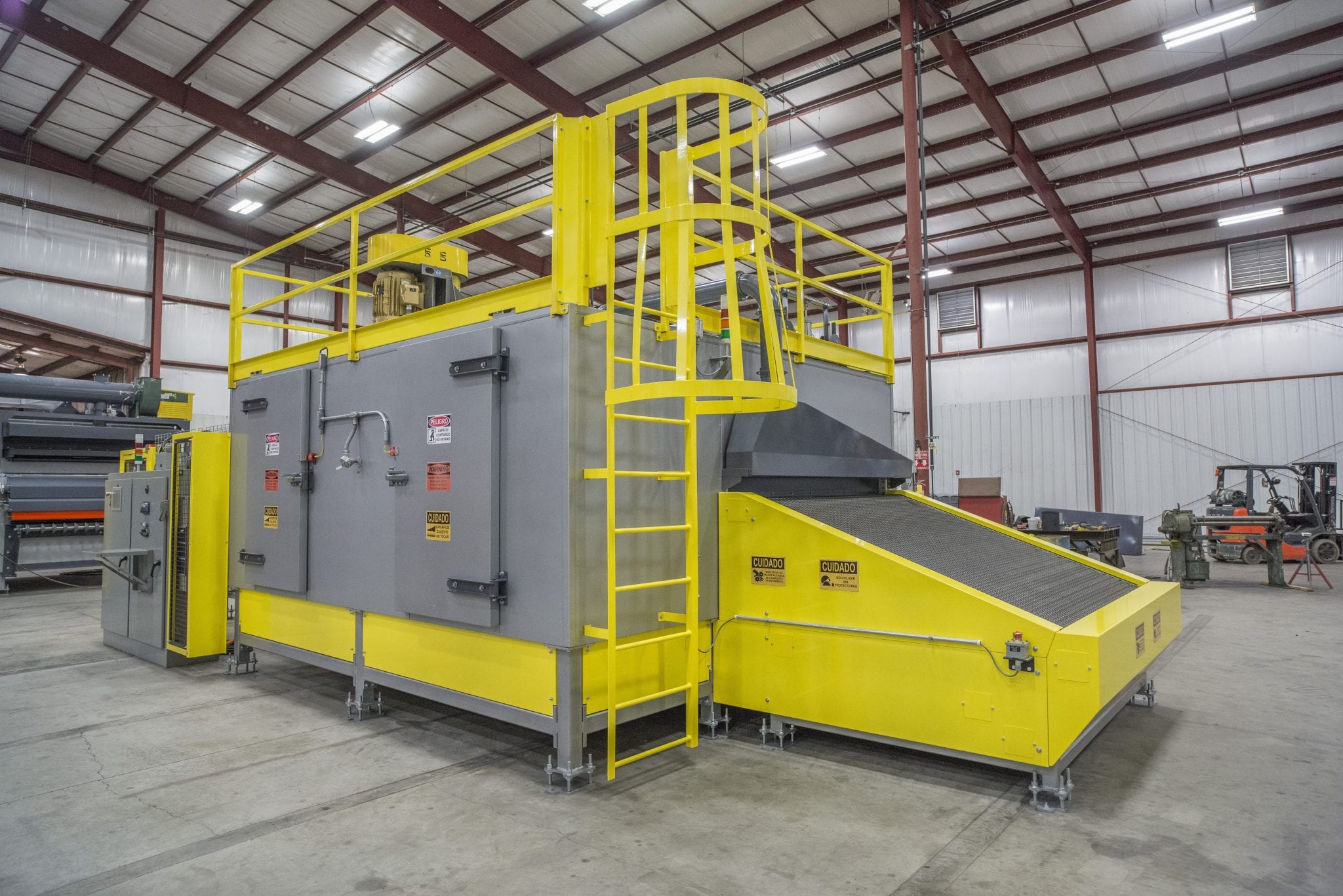

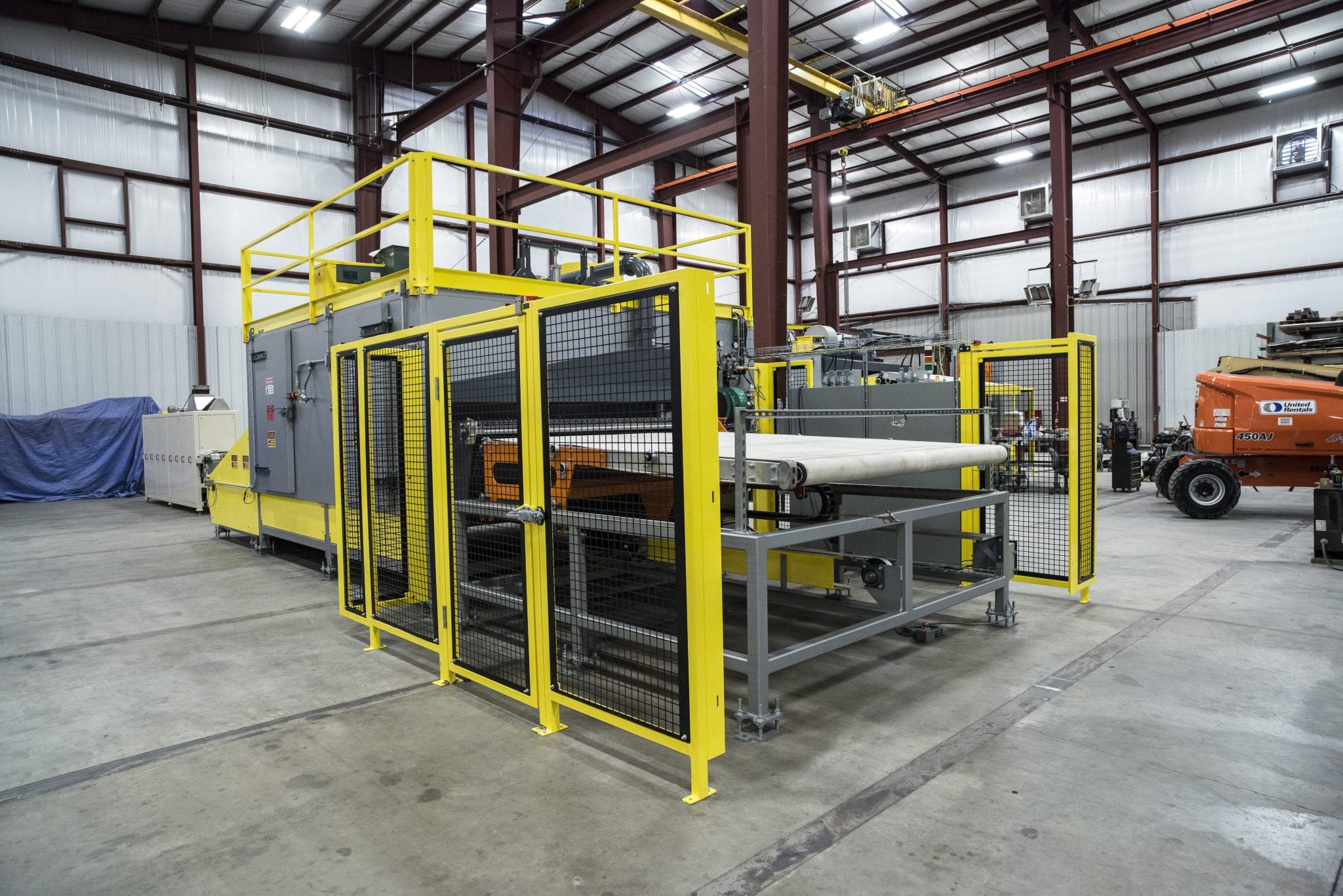

Product Support	Fixed incline conveyor for loading the product, then it levels out before it goes in to the oven. The product leaves the oven and goes onto the transfer conveyor which delivers the product to a forming press.

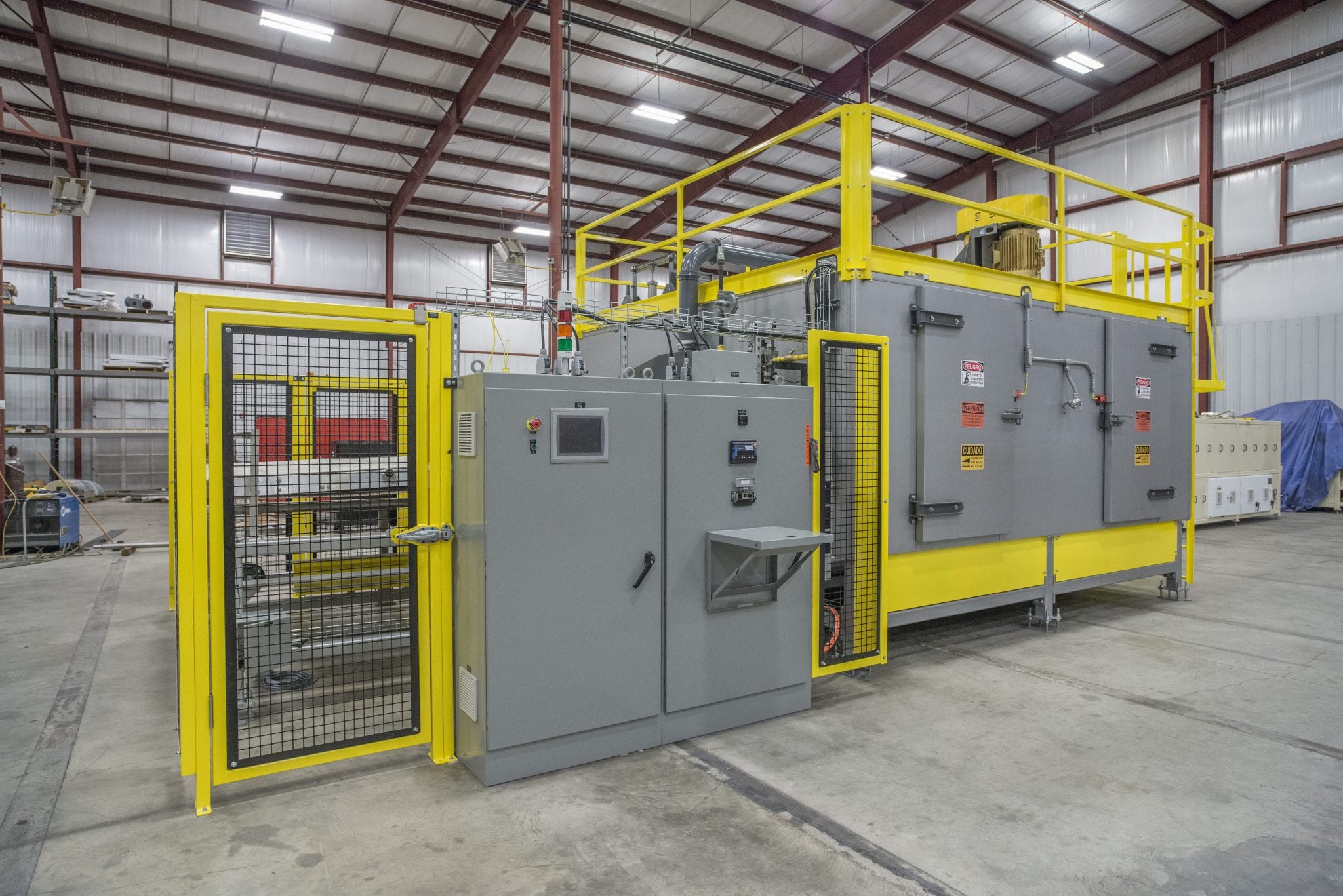

Controls	PLC controls with operator HMI, UL listed control enclosure

CUSTOMER DIRECTIVE

Our customer wanted to place the products on an indexing conveyor that would move the product into the heated chambers for process. The heated air in the oven is forced through the insulation pad with a vertical down airflow. The airflow design provides efficiency in regards to process time and uniformity.

DESCRIPTION

The DTI-1371 provides a vertical down airflow to heat this particular product. The design velocity accounts for the pressure drop through the product to provide an efficient process. The systems conveyors provide a stable surface to support the product and is open to allow process air to flow freely through the product. The design of the conveyors allow the customer to load and unload product easily and the belts travel approximately 8 feet in just 6 seconds to move into and out of the heated chamber quickly. The oven and transfer conveyor system does not required any special foundations or floor pits for installation. The control system includes PLC control of the ramp and soak temperature profiles and starting sequence for all components and flame safety systems. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.

ALTERNATIVE CAPABILITIES

Davron Technologies, Inc. designs and manufactures custom industrial ovens of this type to meet many unique process requirements, including but not limited to, the following:

Airflow: Designs can be completed to provide airflow from any direction within the heated chamber as required by the product. This particular process is vertical up and down airflow but it can be horizontal from either side.
Industries Served: Automotive, Insulate and Carpet Manufacturing/Regeneration, or any industry that requires batch processing.
Materials Processed: Particularly any Automotive Carpet or Insulating Pad Product, with a directional flow requirement. The oven /conveyor system can also be used for many other types of products and can be designed in any size required.
Other Processes: Preheating, Curing, Drying, Solvent Drying, Bonding
Heating Systems: Modulating Gas Fired Direct or Indirect, Electric, or Thermal Oil.
