DTI-991 Infrared Coating Cure System
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

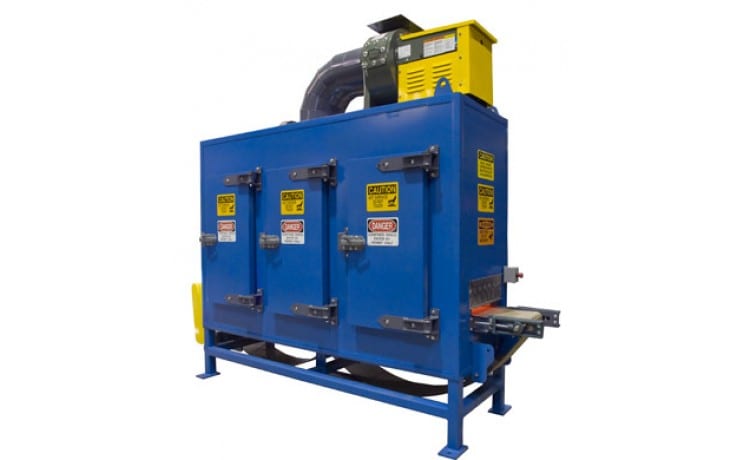

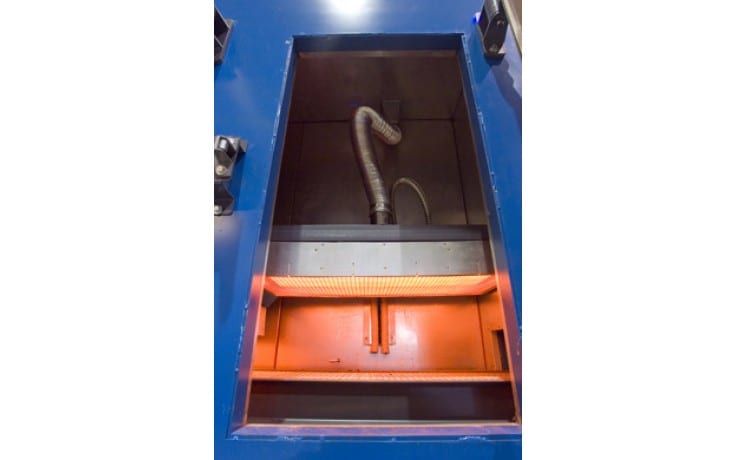

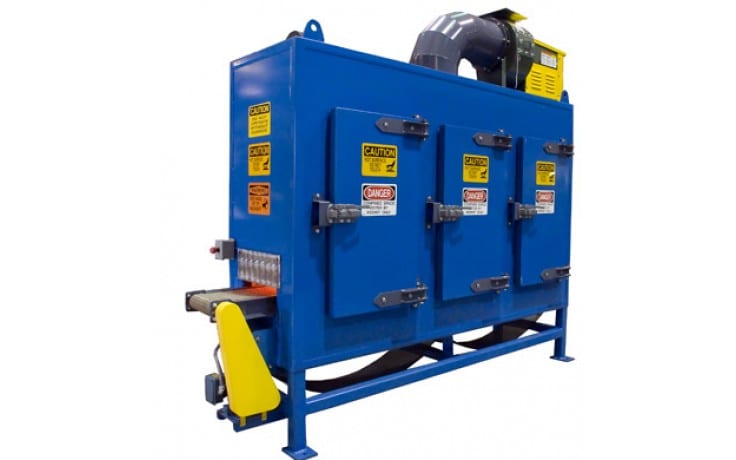

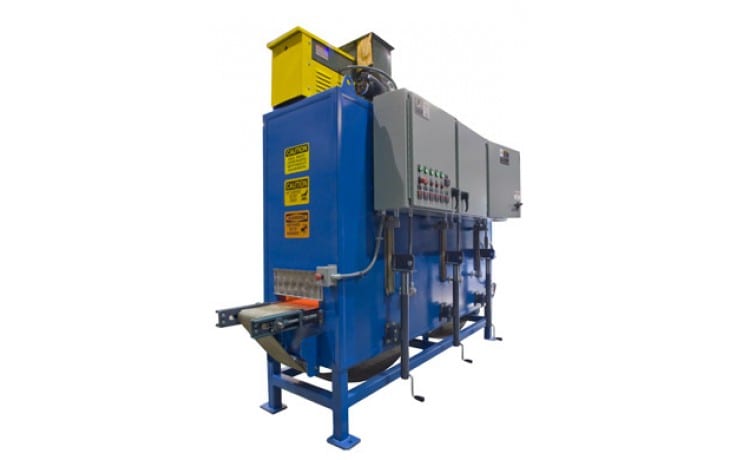

The DTI-991 conveyor oven system cures coating on automotive disk brake pads. The coated brake pads are manually loaded onto the conveyor belt (3 parts wide). The conveying system has variable speed control to allow for cycle time variations for different products. The curing chamber is divided into three independent zones of temperature control. IR panels are adjustable in height from the product to provide a variation of applied heat intensity. This works in conjunction with the heat controls to prevent blistering. The selected heaters heat to a desired temperature/output in 10 minutes or less, providing quick production time.
Specifications
| Chamber External Dimensions | 8′-10″ L x 2′-6″ W x 5′-8″ H (2692mm x 762mm x 1727mm) |
| Conveyor Usable Size | 8′-4″ L x 1′-0″ W x 0′-6″ H (2540mm x 305mm x 152mm) |
| Insulation Thickness | 3″ (76mm) |
| Conveyor Extensions | 1′-0″ (305mm) Entrance End and Exit End |
| Conveyor Type | Stainless Steel Wire Mesh Belt |
| Conveyor Control | Variable Frequency Drive |
| Heat Source | Three Electric Infrared Heater Banks |
| Design Operating Temperature | 200°F – 400°F (93°C – 204°C) |
| Maximum Operating Temperature | 500°F (260°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | Digital Temperature Controls, Temperature and Output Percentage |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
