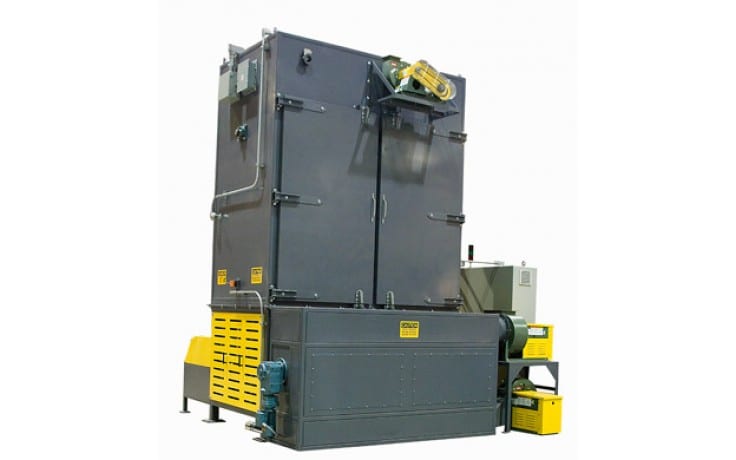

DTI-948 Vertical Oven Curing System
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description
The DTI-948 vertical oven cures epoxy on solar panels. The parts are manually loaded and unloaded in the oven tooling. Parts are heated as they travel up and down in a vertical orientation in the heated chamber. Parts then travel in horizontal orientation through the cooling chamber of the oven. The operating temperature of the oven is 205°C (401°F). Parts are cooled in the cooling chamber by ambient air.
Specifications
| Overall Dimensions | 9′-6″ L x 8′-0″ W x 15′-0″ H (2896mm x 2438mm x 4572mm) |
| Interior Dimensions | 5′-6″ L x 7′-6″ W x 10′-6″ H (1676mm x 2286mm x 3200mm) |
| Insulation Thickness | 4″ (102mm) |
| Heat Source | single electric heater controlled by SCR |
| Max Operating Temperature | 400°F (204°C) |
| Design Operating Temperature | 230°F – 392°F (110°C – 200°C) |
| Airflow | horizontal cross flow |
| Fans | Two (2) Circulation Fans, One (1) Exhaust Fan |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | PLC with Operator Touch Screen for all functions |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
