DTI-898 Roll Processing Preheat System
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

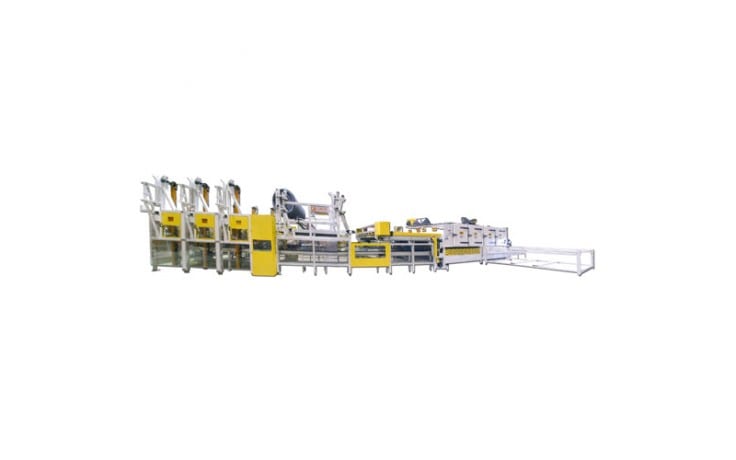

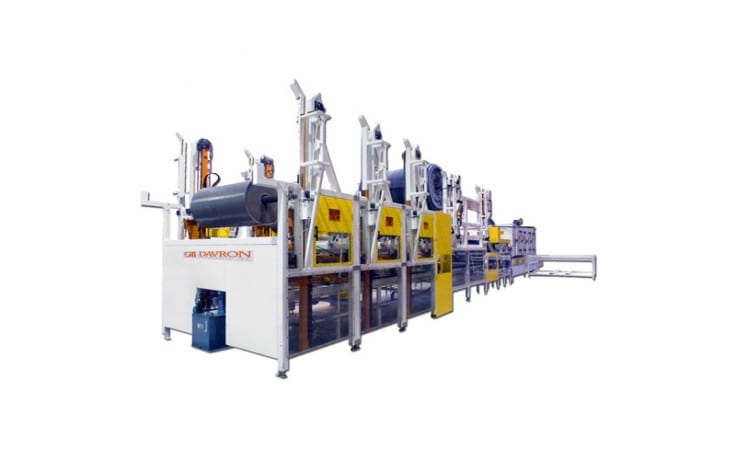

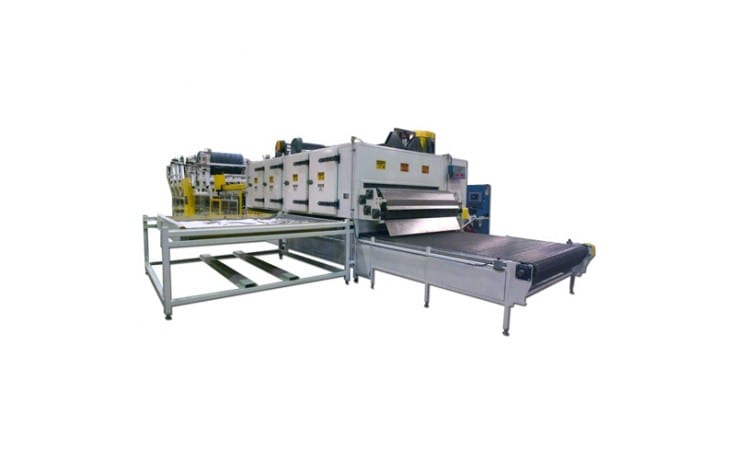

The DTI-898 roll processing preheat system is a thermoforming oven used in manufacturing automotive interior floor carpeting. The system pulls product to length, cuts, and preheats both the carpet product and padding simultaneously. At the completion of the cutting process, the materials are introduced to the oven for preheating. The pad is conveyed through the upper level of the oven and heated by forced air convection.
Carpet product is conveyed through the lower level of the oven and heated by infrared panels. The infrared panels are arranged in individual zones of control, allowing for variations of heating across the entire surface of the carpet. After the preheating process is complete, both the pad and carpet exit the two levels of the oven simultaneously. They are then matched together to form a preheated vehicle set, ready to be press formed as a single unit. The total cycle time from part to part can be as short as 45 seconds in this application.
Features
AUTOMOTIVE SUPPLIER ADVANTAGES
- Automated processing from precut blanks of material to preheated vehicle set ready to press
- Part to part cycle times as short as 45 seconds in this application
- System includes capability to meet In Line Vehicle Sequencing requirements in regards to color and quantity requirements of the manufacturer
AUTOMOTIVE SYSTEM FEATURES
- Oven is electrically heated
- PLC controlled with operator touch screen (HMI)
- All motion functions controlled by servo for accuracy and speed
Specifications
| Product Being Processed | Cast components |
| Overall Dimensions | 23′-3’ L x 9′-6″ W x 11’-0″ H (7087mm x 2896mm x 3353mm) |
| Type of Heating System | Electric |
| Conveyor Width | 7′-7″ (2311mm) |
| Heating Zone Length | Zone-1 = 4′-2″ (1270mm), Zone-2 = 3′-0″ (914mm) |
| Cooling Zone Length | 4′-2″ (1270mm) |
| Operating Temperature | 600°C (1112°F) |
| Maximum Temperature | 850°C (1562°F) |
| Part Production Rate | 45 seconds |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
