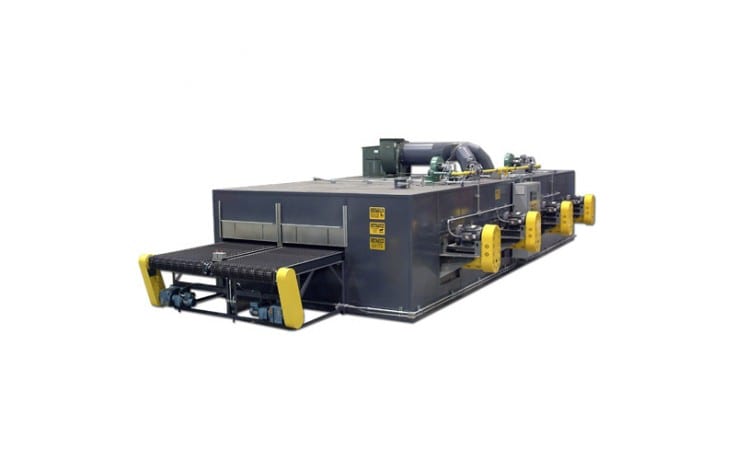

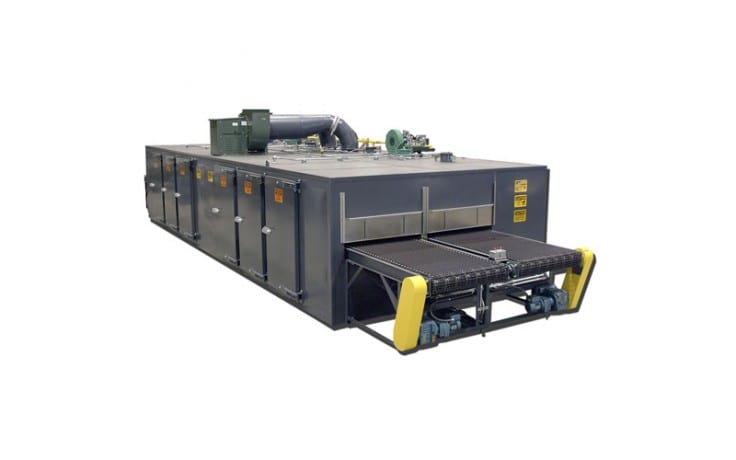

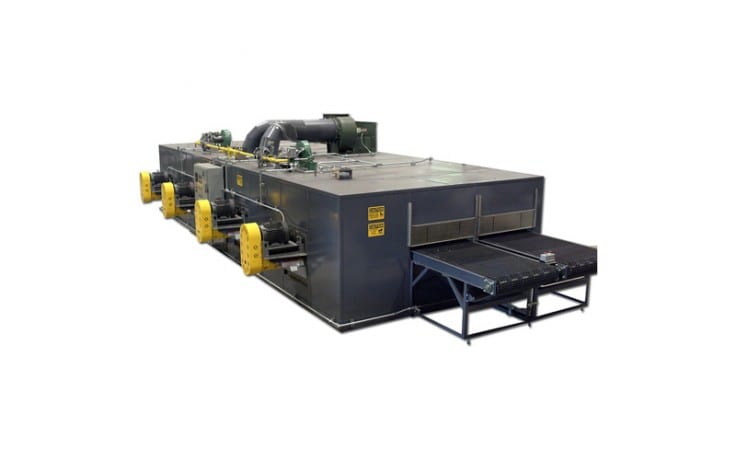

DTI-782 Drying Conveyor Oven
DESCRIPTION
The DTI-782 conveyor oven removes water from cast ceramic parts. The drying system includes two independent conveyors passing through the heated chamber. Independent conveyors process parts at different rates in the same oven based on drying time requirements. Conveyor oven airflow is a combination of vertical up and vertical down to the product on the conveyors. The conveyors extend beyond the chamber on each end for loading and unloading. The heating system and exhaust system are sized to remove a maximum of 500 lbs of water from the product per hour based on a 450°F (232°C) operating temperature. The drying oven is divided into two independent zones of temperature control.
SPECIFICATIONS
| Chamber External Dimensions | 33′-0″ L x 12′-7″ W x 6′-2″ H (10058mm x 3835mm x 1880mm) |
| Conveyor Usable Size | 32′-0″ L x 3′-6″ W x 1′-0″ H (9754mm x 1067mm x 305mm) |
| Insulation Thickness | 6″ (152mm) |
| Conveyor Extensions | 5′-0″ (1524mm) Entry End and Exit End |
| Conveyor Type | Flat Wire |
| Conveyor Control | Variable Frequency Drives |
| Heat Source | Two modulating natural gas fired burner systems |
| Design Operating Temperature | 450°F (232°C) |
| Maximum Operating Temperature | 600°F (316°C) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
