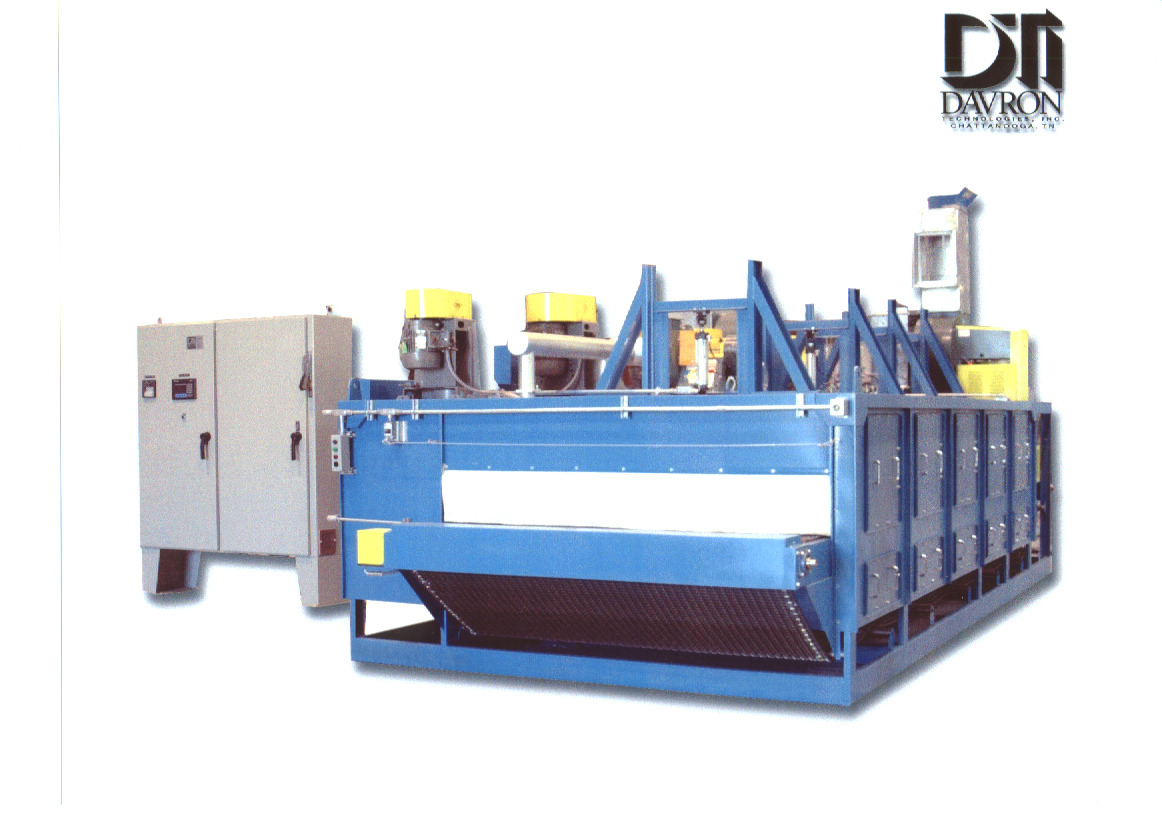

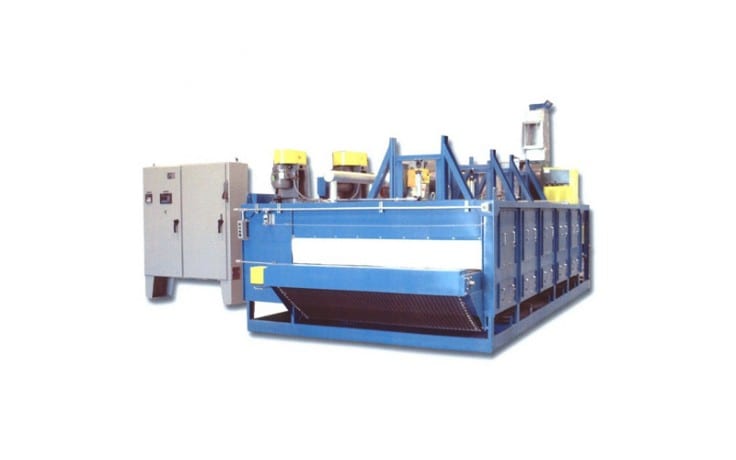

DTI-762 Indexing Conveyor Oven

SPECIFICATIONS

Chamber External Dimensions 22′-0″ L x 10′-11″ W x 5′-7″ H                                                    (6706mm x 3327mm x 1702mm)
Conveyor Usable Size 21′-4″ L x 7′-8″ W x 1′-6″ H                                                        (6502mm x 6604mm x 457mm)
Insulation Thickness 6″ (152mm)
Conveyor Extensions 2′-0″ (610mm) Entrance End                                                    1′-0″ (305mm) exit end
Conveyor Type Flat Wire Belt
Conveyor Control PLC controlled index motion based on distance and time
Heat Source Four SCR controlled electric heaters
Design Operating Temperature 200°F – 500°F (93°C – 260°C)
Maximum Operating Temperature 500°F (260°C)
Operating Voltage 480-volt / 3-phase / 60-hertz
Control  PLC control of all functions

DESCRIPTION

The DTI-762 curing conveyor type oven cures automotive disc brake pads. This system is designed to work in conjunction with manual presses. Parts are press formed and placed in four baskets across the width of the conveyor belt. Based on index time, the conveyor oven indexes a row of baskets through the cure chamber.

FEATURES

CONVEYOR OVEN CONSTRUCTION

The chamber is divided into four heated zones to ramp and soak the product at different temperatures, creating the required cure profile. Vertical doors separate the heated zones, opening and closing during each index motion. A cooling zone is included at the end of the system prior to exit. This system replaced multiple batch ovens and greatly reduced the required handling, floor space, and required cure time for products.
