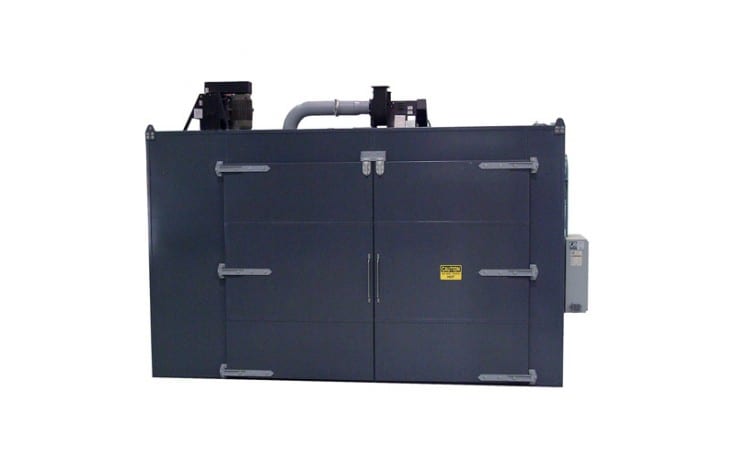

DTI-665 Heating Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description
The DTI-665 batch oven heats steel molds, and is designed to hold an interior shelf system accommodating up to 36 steel molds. Molds are arranged in the batch oven in an array of six (6) deep and six (6) high. The racks are sloped toward the door of the batch oven, and include stops to keep the molds from rolling. The rack is separate from the batch oven and can be removed from the oven if required for future process changes. Each mold weighs approximately 2,400 pounds; the total product load per batch is 86,400 pounds.
Features
Batch oven temperature control
Molds are loaded in the batch oven by a fork truck, and in twelve (12) hours are heated from 40°F to 400°F (4°C – 204°C). The batch oven is set at an operating temperature of 600°F (316°C) in order to achieve the desired heating curve. The batch oven includes four (4) digital indicating temperature monitors to monitor temperature in the chamber.
Specifications
| Exterior Dimensions | 8′-0″ L x 14′-6″ W x 12′-0″ H (2438mm x 4420mm x 3658mm) |
| Interior Dimensions | 7′-0″ L x 12′-2″ W x 8′-4″ H (2134mm x 3708mm x 2540mm) |
| Heat Source | Single full modulating natural gas burner package |
| Max Operating Temperature | 600°F (316°C) |
| Design Operating Temperature | 400°F – 600°F (204°C – 316°C) |
| Insulation Thickness | 6″ (152mm) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Airflow | Horizontal cross flow |
| Fans | One (1) circulation fan, One (1) exhaust fan |
| Controls | Programmable digital controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
