DTI-579 Vertical Oven Curing System

SPECIFICATIONS

Overall Dimensions 14′-8″ L x 11′-3″ W x 16′-2″ H                                                              (4470mm x 3429mm x 4928mm)
Interior Dimensions 4′-0″ L x 6′-8″ W x 8′-0″ H                                                                    (1219mm x 2032mm x 2438mm)
Insulation Thickness  5″ (127mm)
Heat Source  single full modulating natural gas burner package
Max Operating Temperature  500°F (260°C)
Design Operating Temperature  415°F (213°C)
Airflow horizontal cross flow
Fans one (1) circulation fan, one (1) cooling fan, and one (1) exhaust fan
Operating Voltage  480-volt / 3-phase / 60-hertz
Control  PLC with Operator Touch Screen for all functions

DESCRIPTION

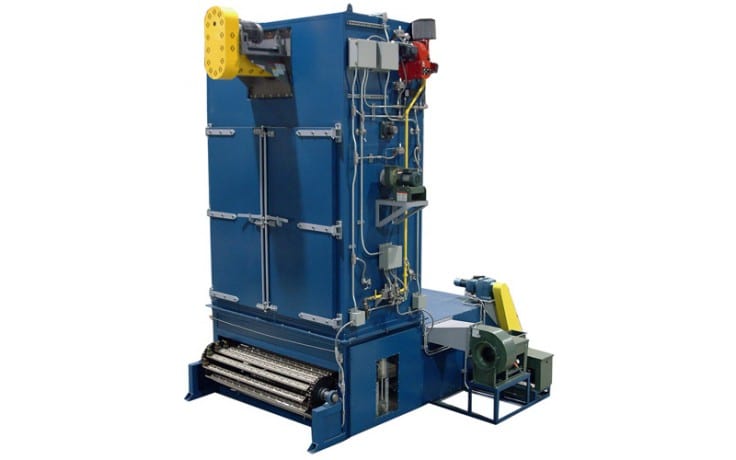

The DTI-579 vertical oven cures a coating on steel components used in the automotive industry. The coating is applied to the exterior surface of the parts and the parts are then loaded into the oven via a pick and place system that is part of the oven design.

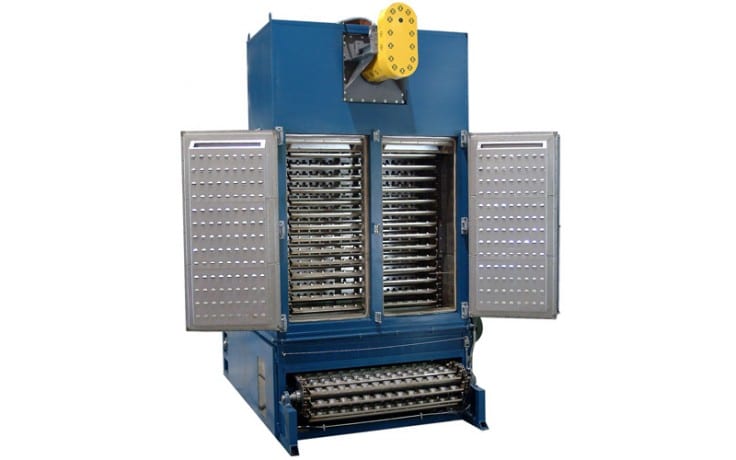

Parts are conveyed through the oven on custom product trays, attached to oven class chain, that make up the conveying system. Multiple parts are loaded across the width of each product tray and index through the oven in a vertical orientation. The control system provides the ability to adjust the index time of the conveying system to provide varying dwell times in the heated chamber.

Once the curing cycle is complete the parts travel horizontally through a cooling section located below the heated chamber and are cooled to a temperature safe for unloading.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
