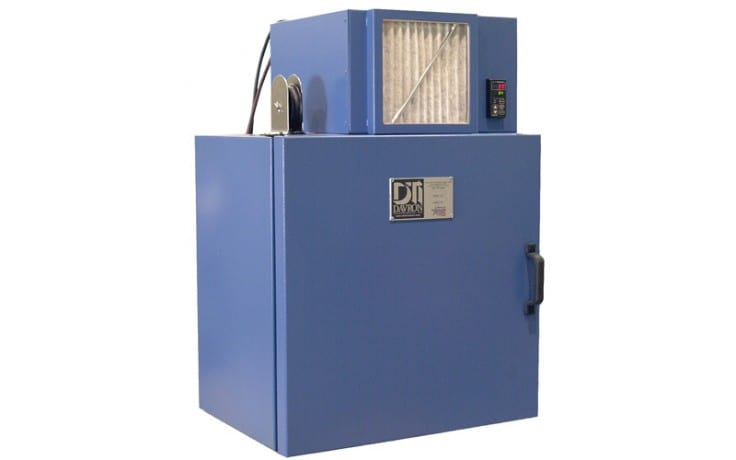

DTI-511 Cooling Chamber

SPECIFICATIONS

Chamber External Dimensions 1′-10″ L x 2′-5″ W x 3′-5″ H                                                                                (559mm x 737mm x 1041mm)
Interior Dimensions 1′-5″ L x 2′-1″ W x 2′-1″ H                                                                                  (432mm x 635mm x 635mm)
Insulation Thickness 2″ (51mm)
Cooling Chamber One (1) direct expansion cooling system
Cooling Medium R22 Freon
Condensing Unit One (1) unitary refrigeration condensing unit located on top of the chamber

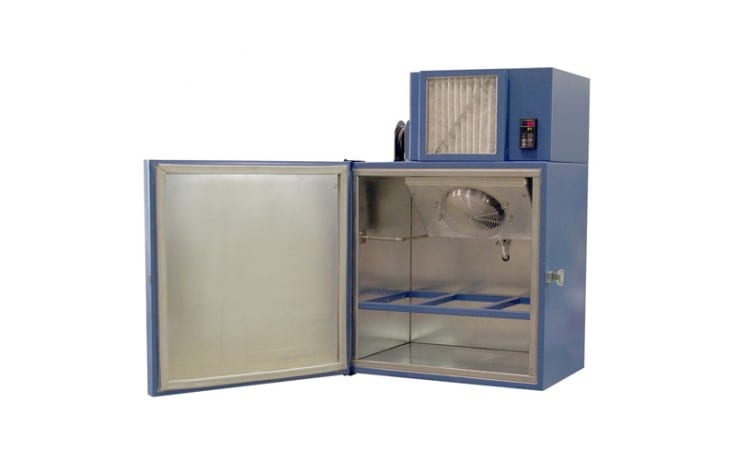

Evaporator System One (1) evaporator system is mounted inside the cooling chamber on the roof of the unit
Operating Voltage 480-volt / 3-phase / 60-hertz

DESCRIPTION

The DTI-511 cooling chamber cools rubber rope used in door and window assemblies in automobiles. The cooler consists of one (1) shelf in order to process two (2) separate material trays. Trays contain approximately fifteen (15) pounds of rubber rope. The cooler is designed to maintain the rubber rope at a temperature approximately 20°F less than the ambient temperature of the plant.
