DTI-488 Curing Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

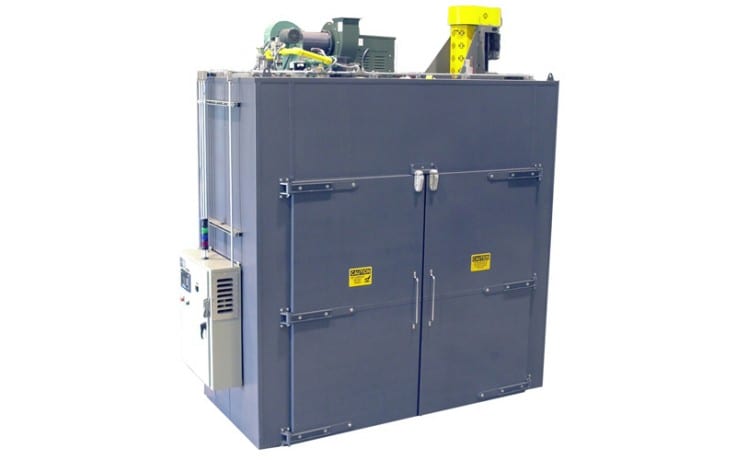

The DTI-488 curing batch oven cures automotive brake pads, and is designed to cure two (2) full racks of product in a six (6) hour cycle. The batch oven cycle is a maximum of five (5) hours, with a one (1) hour cooling cycle.
Features
BATCH OVEN CONSTRUCTION FEATURES

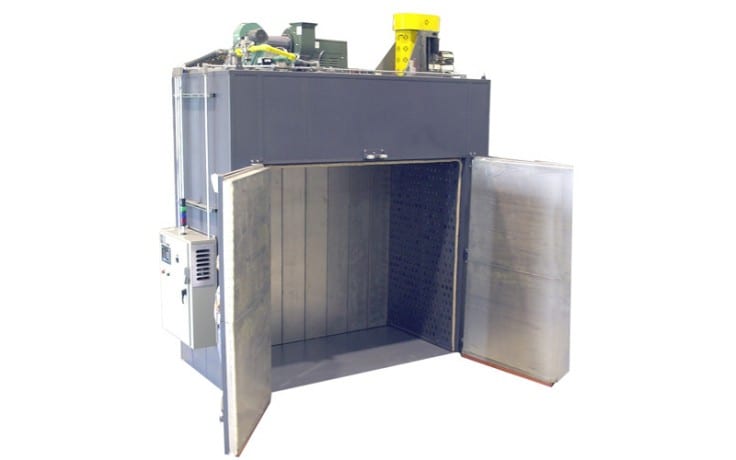

The DTI-488 batch oven is designed to accommodate existing product racks, and the oven floor is not insulated in order to accommodate these racks. This batch oven will process 1,600 to 2,000 pads per batch.
Specifications
| Exterior Dimensions | 5′-0″ L x 10′-6″ W x 11′-6″ H (1524mm x 3200mm x 3505mm) |
| Interior Dimensions | 4′-0″ L x 9′-0″ W x 8′-6″ H (1219mm x 2743mm x 2591mm) |
| Heat Source | Single full modulating natural gas burner |
| Max Operating Temperature | 600°F (316°C) |
| Design Operating Temperature | 450°F (232°C) |
| Insulation Thickness | 6″ (152mm) |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Airflow | Horizontal cross flow |
| Circulation Fans | One (1) circulation fan |
| Exhaust Fans | One (1) exhaust fan |
| Control | PLC with Operator Touch Screen for all functions |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
