DTI-488 Batch Cooling Chamber
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

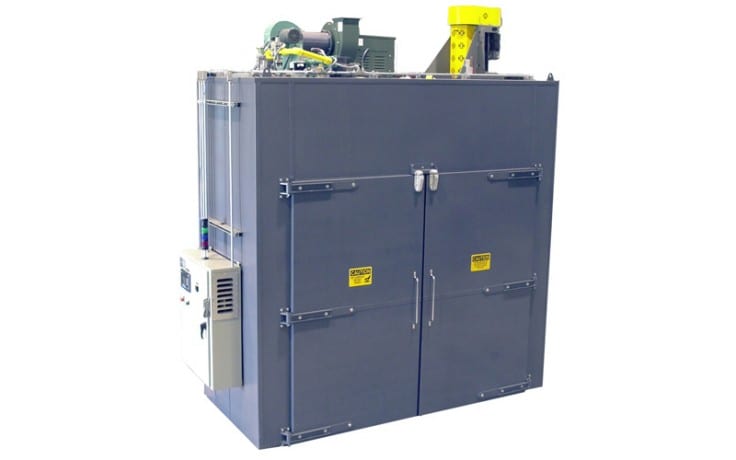

This batch cooling chamber cools automotive brake pads. The cooling chamber is designed to cool two (2) full racks of product in one (1) hour. The cooling cycle consists of a cooling fan, an exhaust fan, and utilizes ambient plant. The cooling chamber is designed to accommodate existing product racks. The floor is not insulated in order to house these racks. The cooling chamber will process 1,600 to 2,000 pads per batch.
SPECIFICATIONS
| Overall dimensions | 5′-0″ L x 10′-6″ W x 11′-6″ H (1524mm x 3200mm x 3505mm) |
| Interior dimensions | 4′-0″ L x 9′-0″ W x 8′-6″ H (1219mm x 2743mm x 2591mm) |
| Chamber airflow | Horizontal cross flow |
| Cooling chamber fans | One (1) circulation fan, One (1) exhaust fan |
| Operating Voltage | 480-volt / 3-phase / 60-hertz |
| Control | PLC with Operator Touch Screen for all functions |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
