DTI-394 Curing Oven and Oxidizer

SPECIFICATIONS
SPECIALTY CUSTOM OVEN SPECIFICATIONS
Overall Dimensions | 8′-0″ W x 8′-6″ H x 21′-0″ D (2438mm x 2591mm x 6401mm) |
Interior Dimensions | 5′-0″ W x 7′-6″ H x 11′-0″ D (1524mm x 2286mm x 3353mm) |
Insulation Thickness | 6″ (152mm) |
Heat Source | Single full modulating propane gas burner package |
Maximum Operating Temperature | 500°F (260°C) |
Operating Temperature Range | 300°F – 475°F (149°C – 246°C) |
Fans | One (1) circulation fan, One (1) exhaust fan |
Airflow | Horizontal cross flow |
Operating voltage | 480-volts / 3-phase / 60-hertz |
Control | PLC with Operator Touch Screen for all functions |
Miscellaneous | Interior and all air stream components constructed of stainless steel |
Exterior constructed of carbon steel and painted with high temperature paint |
OXIDIZER SPECIFICATIONS
Dimensions | 7′ diameter x 16 ft long |
Maximum operating temperature | 1,500 ° F |
Design operating temperature | 1,400 ° F with a 1 second retention time |
Heat source | single full modulating propane gas burner package |
Control | PLC with Operator Touch Screen for all functions |
Components Operating voltage | 480-volts / 3-phase / 60-hertz |
Misc | Designed to burn off 34 liters of Isoproponal per batch |
System design to process alcohol concentration through the use of Make Up Air, Purge Air Fan, and Safety Interlocks with Burner |
DESCRIPTION

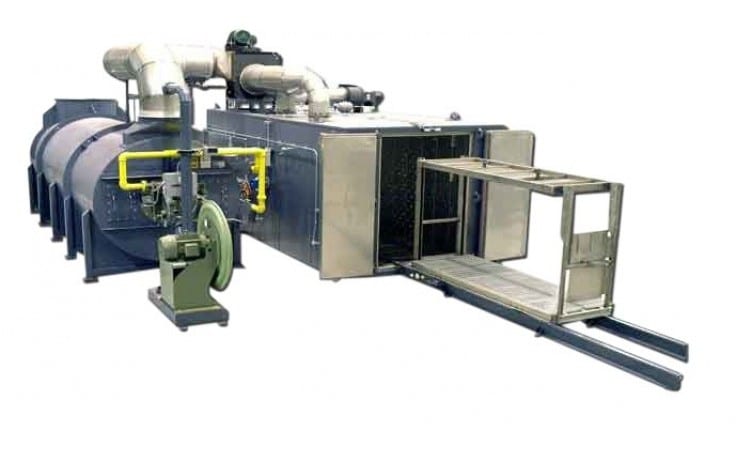

The DTI-394 curing oven and oxidizer cures large honeycomb block product used in the aerospace industry. This industrial oven includes a custom cart and track system for loading and unloading product. This cart system utilizes a series of blank off panels to force all circulated air to pass through the product block. The cart and oven/oxidizer system is designed for a maximum product weight of 1,500 pounds. The airflow in the chamber is approximately 16 feet per second, guaranteeing a uniform flow of air through the product block.
FEATURES
ADDITIONAL CUSTOM OVEN FEATURES
The oven and oxidizer are designed to burn off approximately 34 liters of Isopropanol per batch. The majority of the Isopropanol is destroyed in the first ten (10) minutes of the cycle. The control system allows for adjustment in the heat up rate, airflow, and exhaust to work in conjunction with the amount of solvent present during any given time of the cycle. The system has a back flow prevention device between the afterburner and oven to eliminate the possibility of flames backing up into solvent laden chamber. The oven utilizes a heat exchanger to provide an indirect fired system. This is required because of the solvents present in the process.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
