DTI-392 Product Development Curing Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

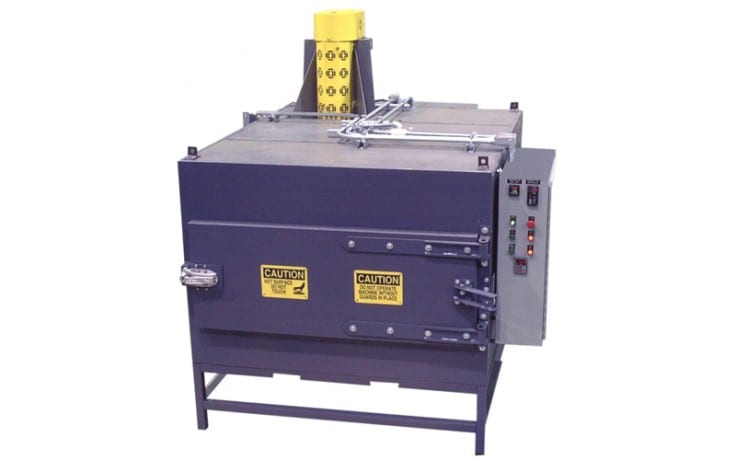

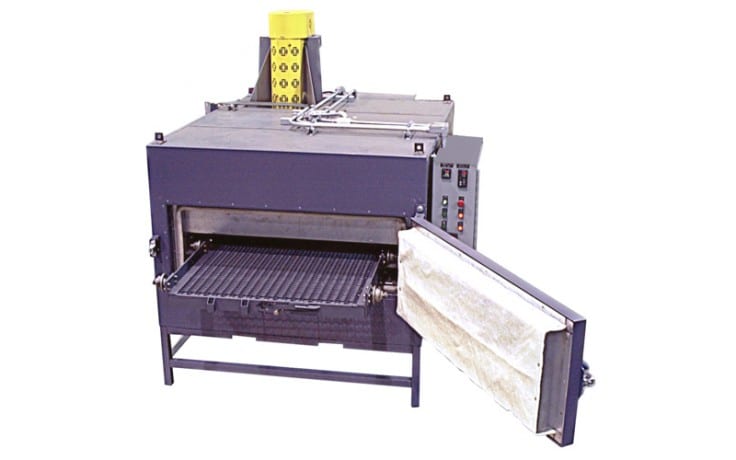

The DTI-392 industrial oven is used to develop curing processes for brake pads in the automotive industry. This custom oven is designed to simulate the process used in an indexing or continuous flow conveyor oven. This oven utilizes a rack made up of structural steel and a flat wire conveyor belt, which simulates the conveying system used in the production oven. The rack is driven by an electric motor to oscillate in the heated chamber during the process. The oscillation speed is variable, enabling the system to emulate different curing cycles and dwell times. The temperature is also variable to enable the simulation of independent zones of heat.
Specifications
| Overall Dimensions | 4′-6″ L x 5′-0″ W x 8′-0″ H (1372mm x 1524mm x 2438mm) |
| Interior Dimensions | 2′-6″ L x 3′-0″ W x 4′-0″ H (762mm x 914mm x 1219mm) |
| Insulation Thickness | 6″ (152mm) |
| Heat Source | single electric heater controlled by SCR |
| Maximum Operating Temperature | 572°F (300°C) |
| Operating Temperature Range | 176°F – 572°F (80°C – 300°C) |
| Fans | One (1) circulation fan, One (1) exhaust fan |
| Airflow | vertical top to bottom |
| Operating Voltage | 480-volts / 3-phase / 60 hertz |
| Miscellaneous | Digital indicating temperature controller |
| Digital indicating over temperature controller | |
| VFD to control conveyor rack speed |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
