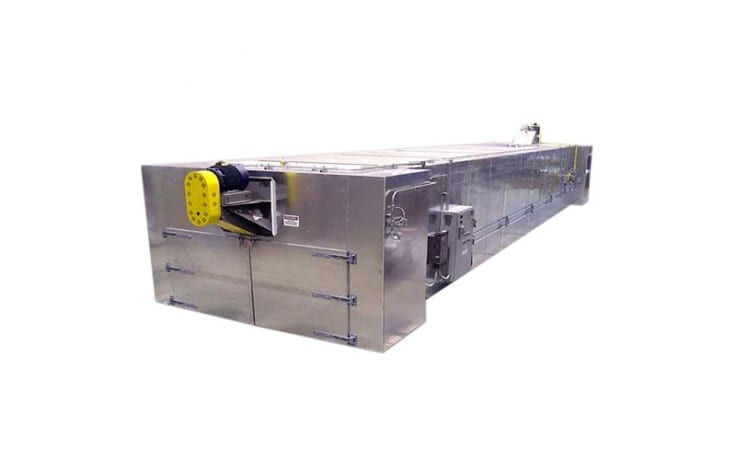

DTI-342 Chalk Drying Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description
The DTI-342 batch oven is used to dry a molded plaster product. The oven utilizes a humidity control system to maintain the required R/H within the heated chamber. This system allows for multiple R/H set points for variable time durations. This is critical to the process in order to keep the outside of the product from drying to quickly which would cause the product to crack on the surface.
Features
Batch oven construction
The batch oven has double doors on both the entrance and exit ends of the oven. This allows the product carts to move through the process in a single direction flow. The operating temperature of the batch oven is 180°F (82°C), but a 3,000,000 BTUH capacity burner is required to maintain the temperature. This is because the batch oven is exhausting approximately 7,497 pounds of water per eight (8) hour cycle. The batch oven is constructed with a structural steel framework and insulated walls. The batch oven was constructed in eight (8) sections to accommodate shipping.
Specifications
| Exterior Dimensions | 54′-0″ L x 14′-2″ W x 9′-0″ H (16459mm x 4318mm x 2743mm) |
| Interior Dimensions | 53′-0″ L x 10′-6″ W x 5′-3″ H (16154mm x 3200mm x 1600mm) |
| Heat Source | Single full modulating propane gas burner package |
| Max Operating Temperature | 300°F (149°C) |
| Insulation Thickness | 4″ (102mm) |
| Operating Voltage | 380-volt / 3-phase / 50-hertz |
| Airflow | Horizontal cross flow |
| Fans | One (1) 36,500 CFM circulation fan, One (1) 10,000 CFM exhaust fan |
| Sensors | Humidity sensors, Chamber pressure sensors |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
