DTI-291 Drying Batch Oven
Description

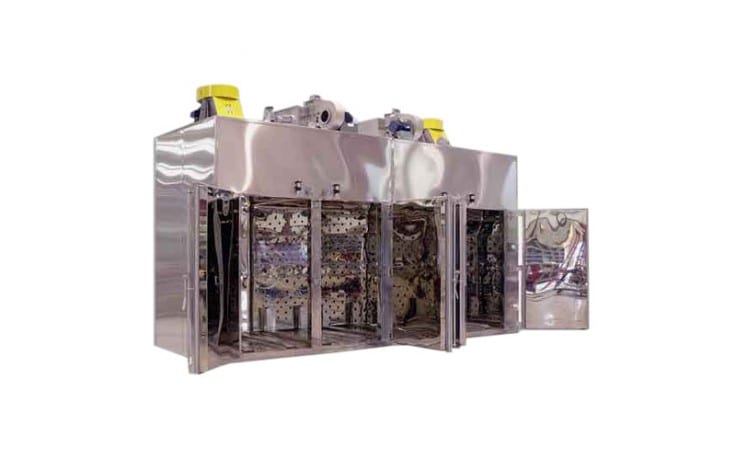

The DTI-291 batch oven is used to dry trays of PTFE Powder. This batch oven is designed to accommodate an existing product rack that holds 40 trays per rack. Each tray weighs approximately 10 pounds, and the total load in each batch oven chamber is 400 pounds of product. The batch oven removes approximately 200 pounds of water per cycle. The batch oven is designed to meet Class 100 clean room requirements.
Features
Batch oven construction features
The batch oven contains two (2) independently controlled heated chambers in one (1) oven body. The interior of the batch oven is constructed of 16ga 304 #8 500 grit mirror stainless steel, and the exterior is constructed of 16ga 304 #4 180 grit sanitary finished stainless steel. Each corner of the batch oven is radius and polished smooth. All the interior seams that make up the batch oven chamber walls, roof, and floor are seal welded and polished smooth to minimize particle collection from the process, allowing easy access for cleaning and maintenance. Plenums and diverters within the chamber are seal welded at their seams; all seams are polished smooth. The batch oven floor is sloped toward the door so that the water can be easily removed after cleaning, which is done after each cycle. Each chamber utilizes one (1) circulation fan, one (1) variable position exhaust damper, one (1) blower for make-up air, and one (1) electric heater. There are sixteen (16) thermocouples mounted within the two (2) batch oven chambers, eight (8) per chamber. Temperature can be monitored but not controlled at these sixteen (16) points. A cooling coil is mounted in the return air path and each chamber utilizes a HEPA filter. The chamber pressure is controlled between -4″ w.c. to +2″ w.c.
Specifications
| Exterior Dimensions | 19′-0″ W x 11′-0″ H x 6′-0″ D (5791mm x 3353mm x 1829mm) |
| Interior Dimensions | 7′-0″ W x 7′-6″ H x 5′-6″ D (2134mm x 2286mm x 1676mm) |
| Heat Source | One (1) electric heater per chamber |
| Max Operating Temperature | 450°F (232°C) |
| Design Operating Temperature | 285°F – 410°F (141°C – 210°C) |
| Insulation Thickness | 4″ (102mm) |
| Operating Voltage | 480 volt / 3-phase / 60-hertz |
| Airflow | Horizontal |
| Control | PLC with Operator Touch Screen for all functions |
| Chamber Doors | Two (2) vertically hinged doors |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
