DTI-1537 Wire Enameling Vertical Oven
Description

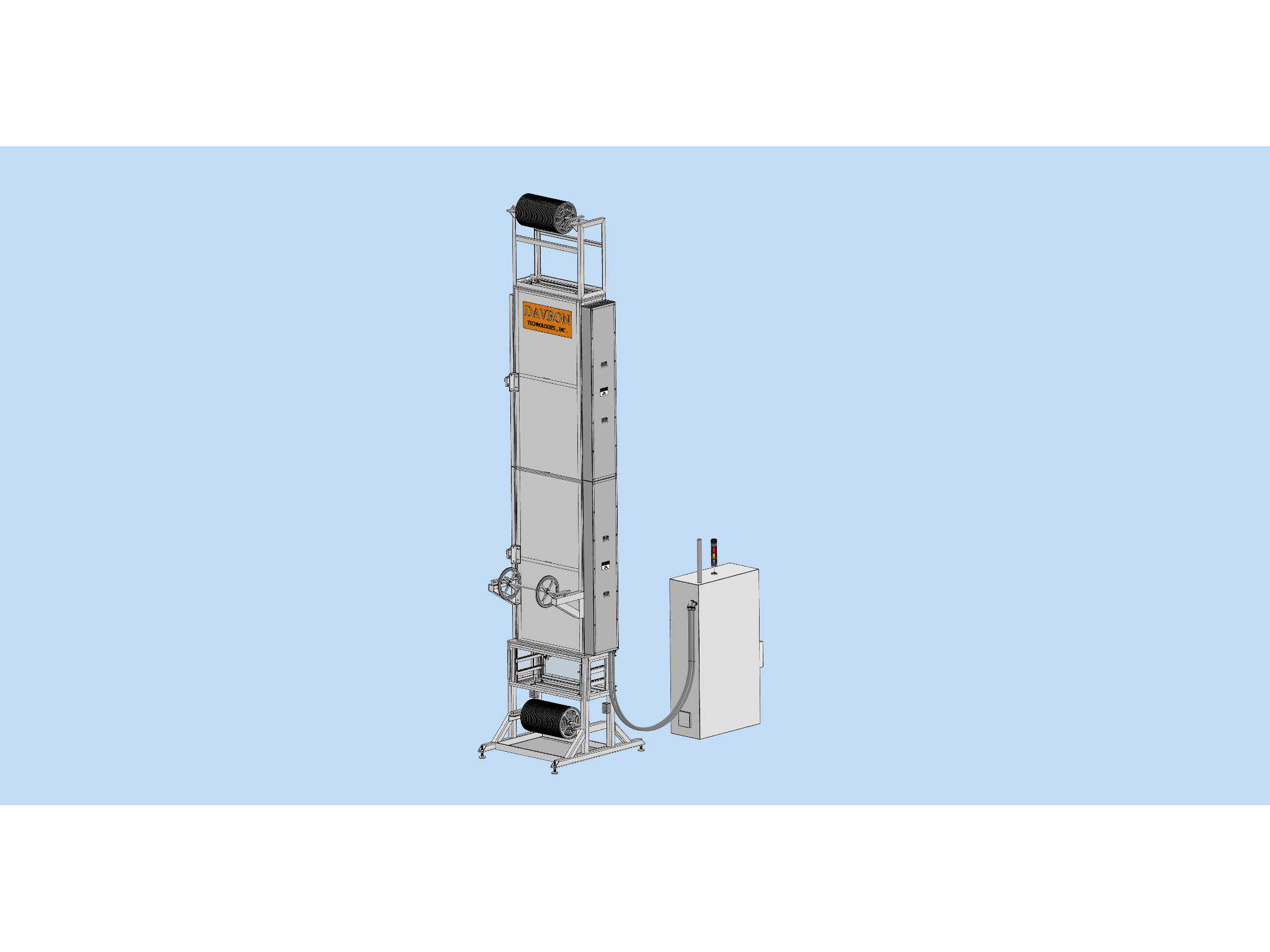

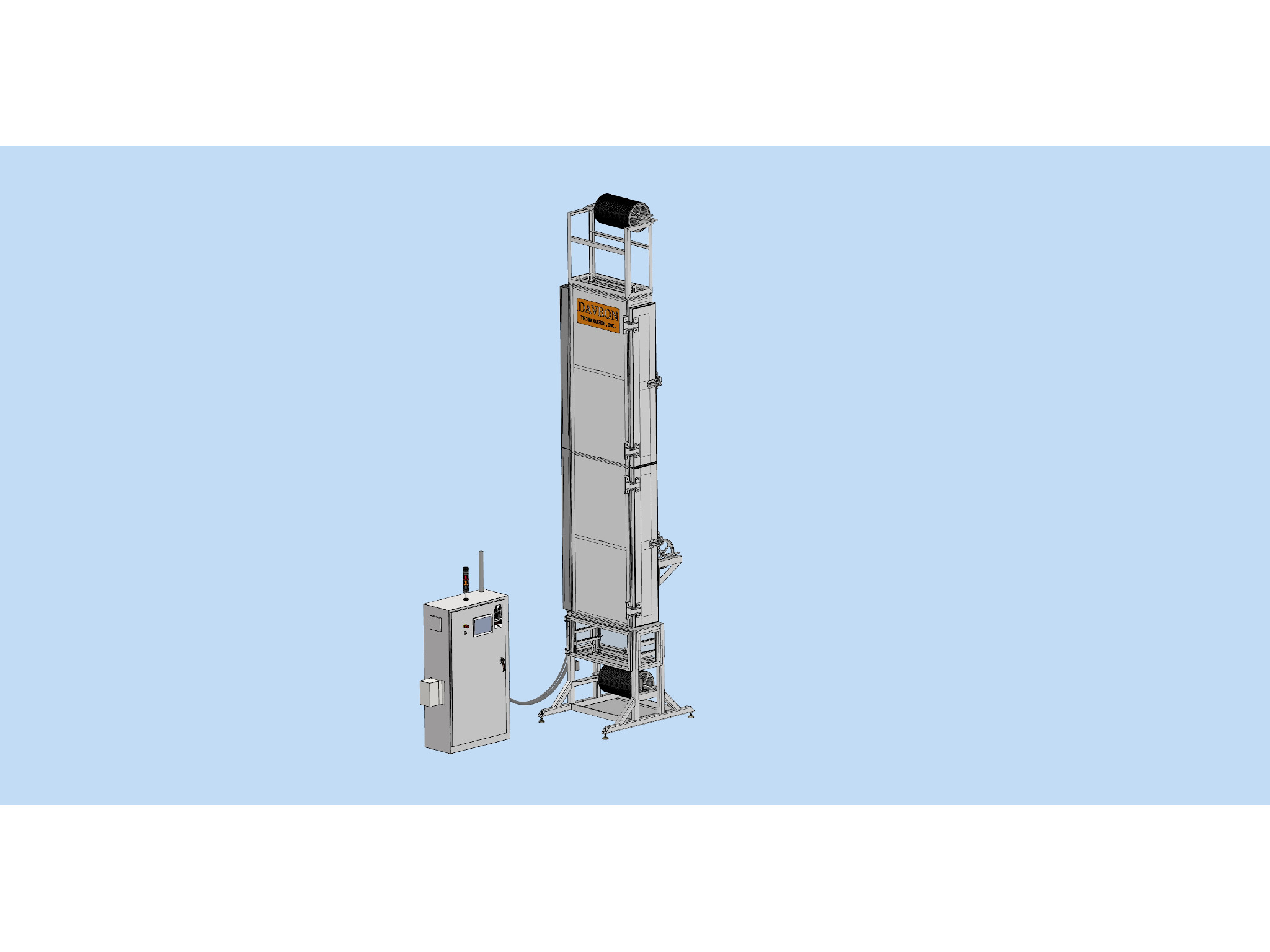

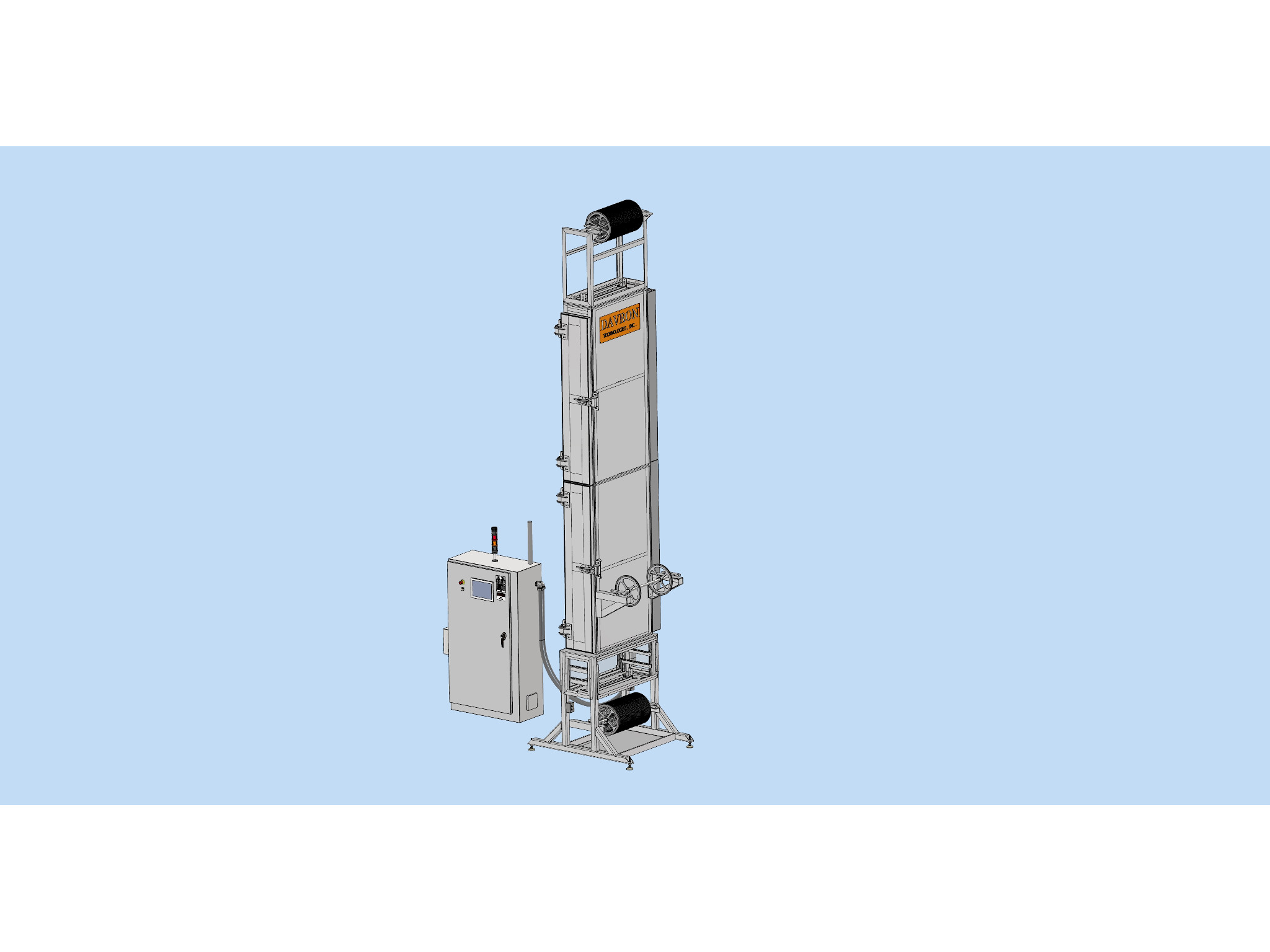

DTI-1537 Wire Enameling Vertical Oven provides wire enameling capability for the Medical and Pharmaceutical Industry in a vertical arrangement to save valuable manufacturing floor space. DTI-1537 includes multiple zones of temperature control to match the requirements of the product being processed, as well as maintain accurate temperature control and uniformity. Heating elements within the oven are located on both sides of the vertically oriented product flow to provide even heat distribution. The design of this system includes multiple points of access for inspection and maintenance in addition to the full stainless steel construction.
Specifications
| Product Being Processed | Medical Grade Tubing |
| Overall System Dimensions | 2′-0″ L x 5′-0″ W x 20′-0″ H |
| Heated Chamber Dimensions | 0′-8″ L x 3′-0″ W x 12′-0″ H |
| Type of Heating System | Electric Heater Rods |
| Design Operating Temperature | 850°F (454°C) |
| Maximum Operating Temperature | 1000°F (538°C) |
| Product Support | Stainless Rollers/Pulleys |
| Controls | PLC control with operator HMI, UL listed control enclosure |
Alternative capabilities
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
- Airflow: Vertical
- Industries Served: Medical, Pharmaceutical
- Materials Processed: Plastics, Rubbers
- Other Processes: Small tubing of any sort requiring multiple coatings
- Heating Systems: Electric or gas fired
