DTI-1510 Automotive Molding Line
Customer directive
This customer is a global provider of highly engineered plastic systems and components, primarily for the automotive sector as well as industrial, consumer, medical, and other markets. The customer’s products align with industry trends, including vehicle light weighting and electrification and an increasing focus on comfort and safety. The customer serves global customers and vehicle platforms through technology expertise, innovative design, and close engineering collaboration. This customer maintains long-term relationships with many of the world’s leading automotive and industrial OEMs.
Description

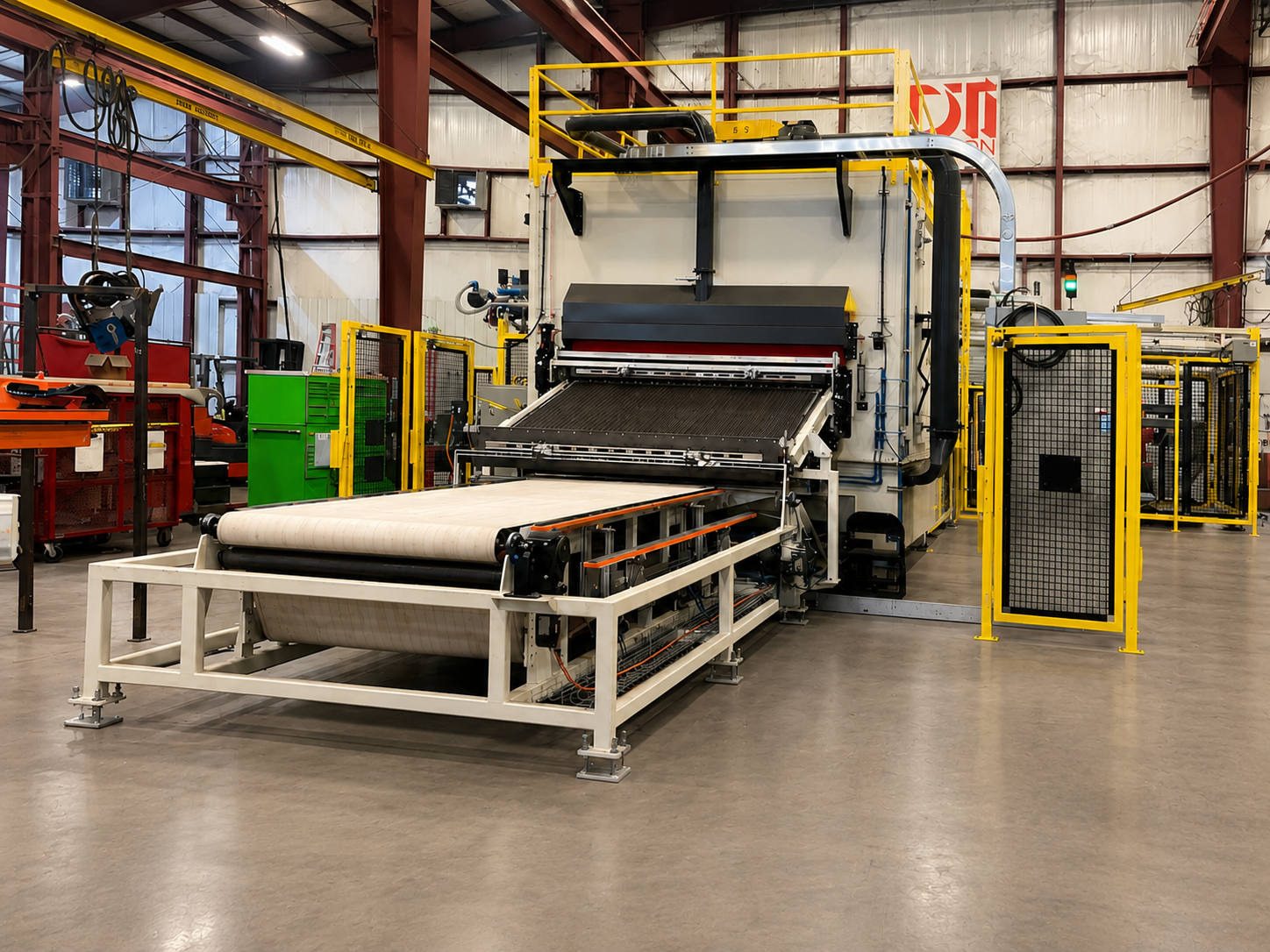

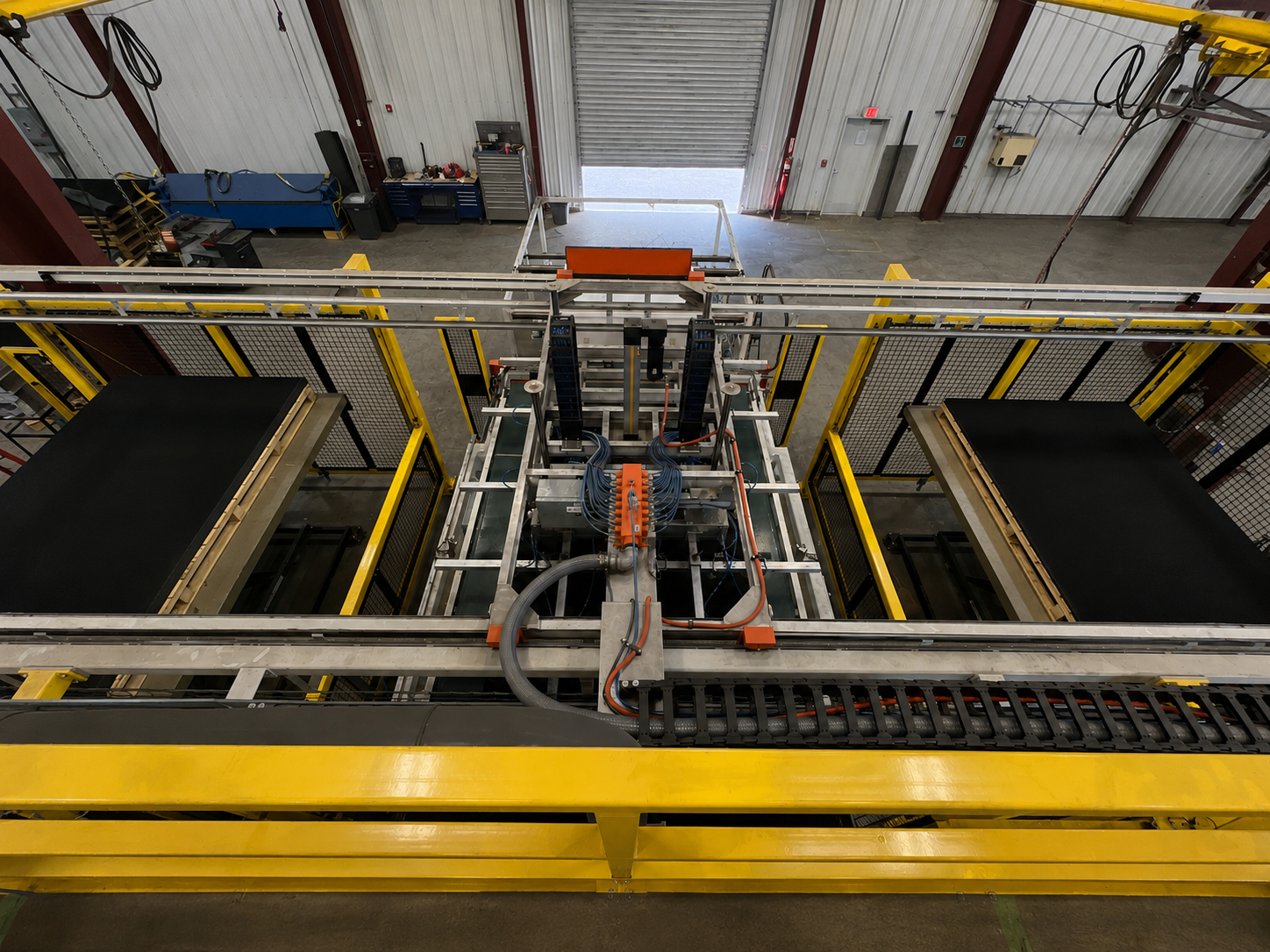

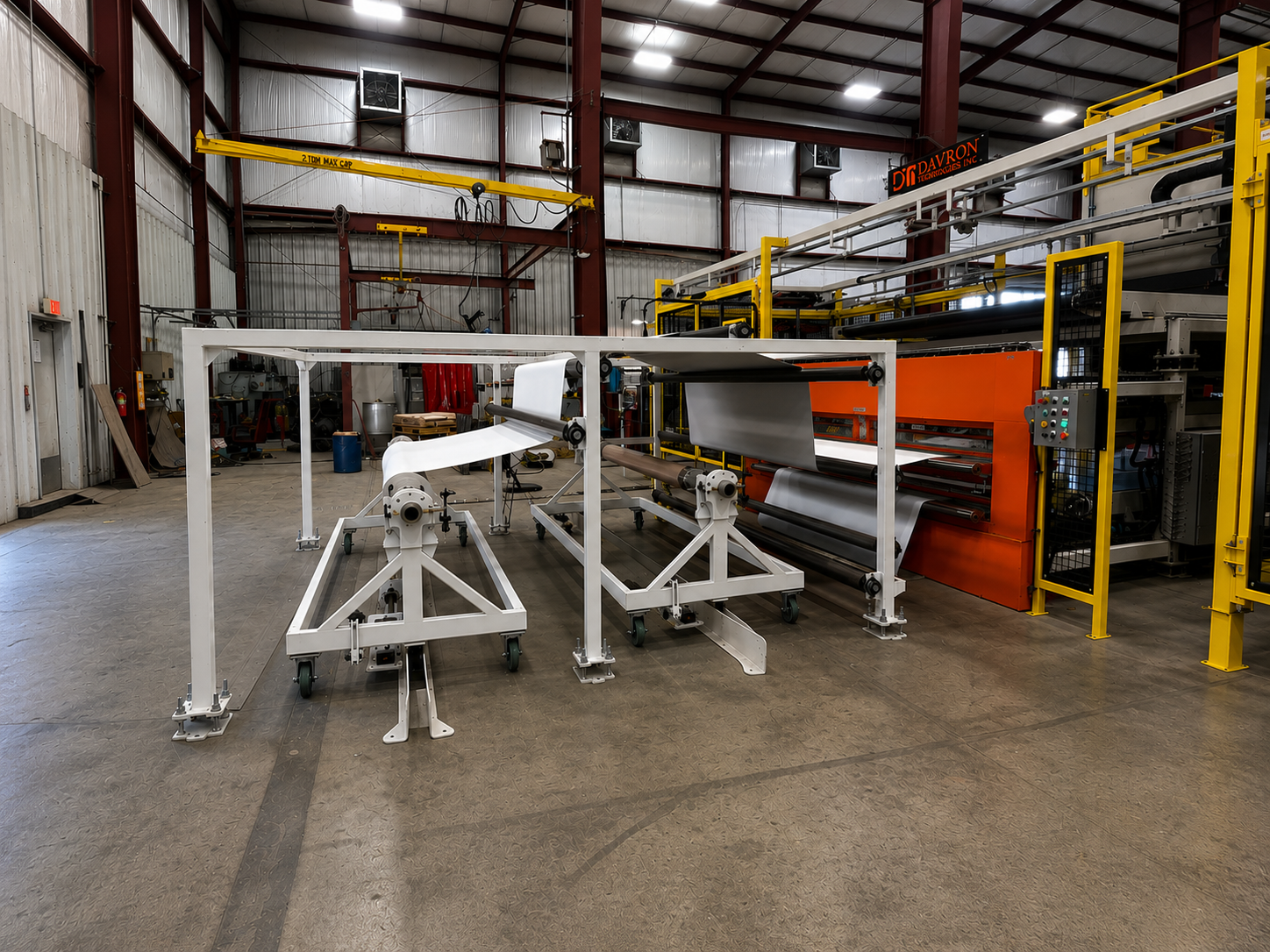

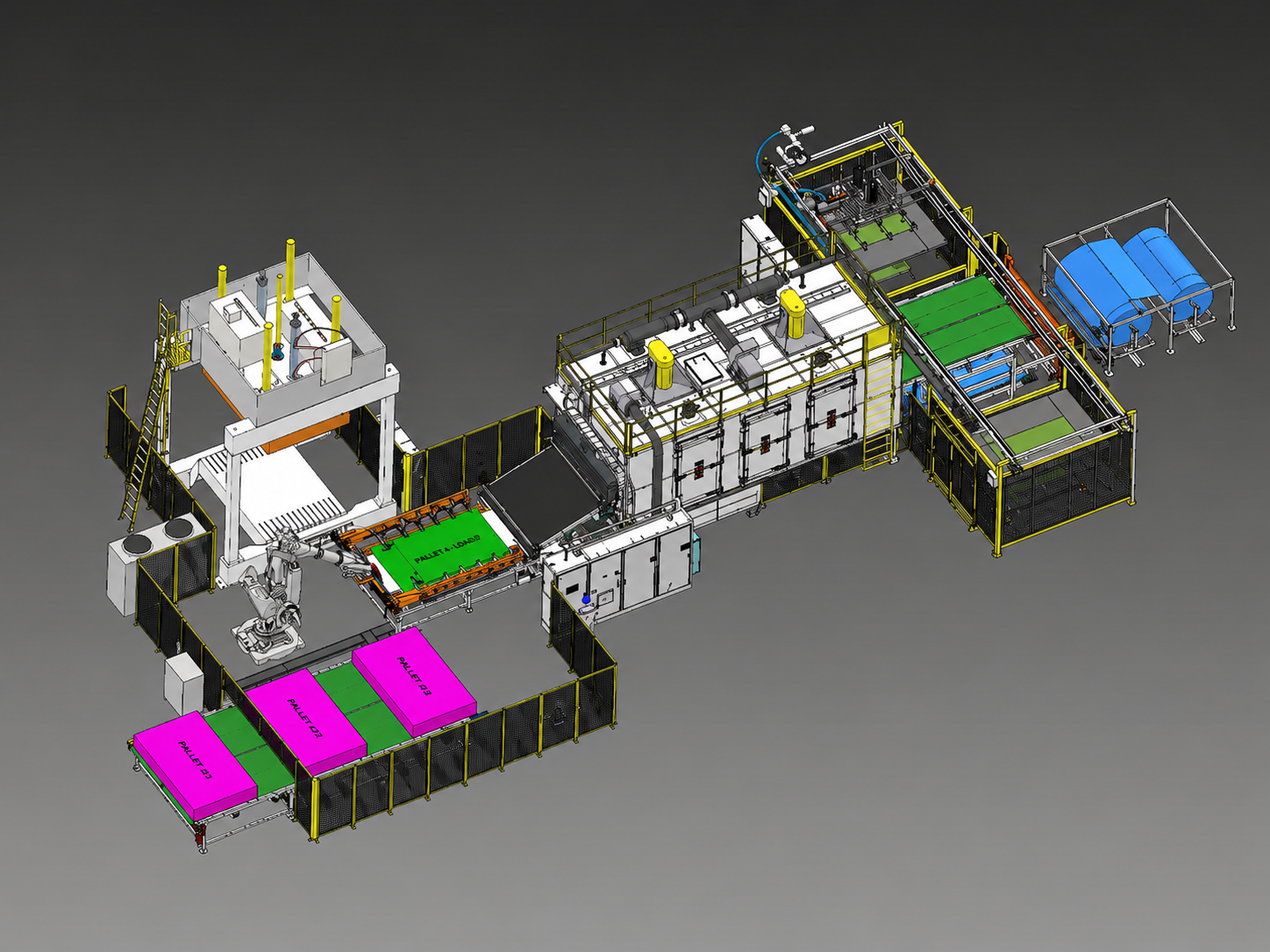

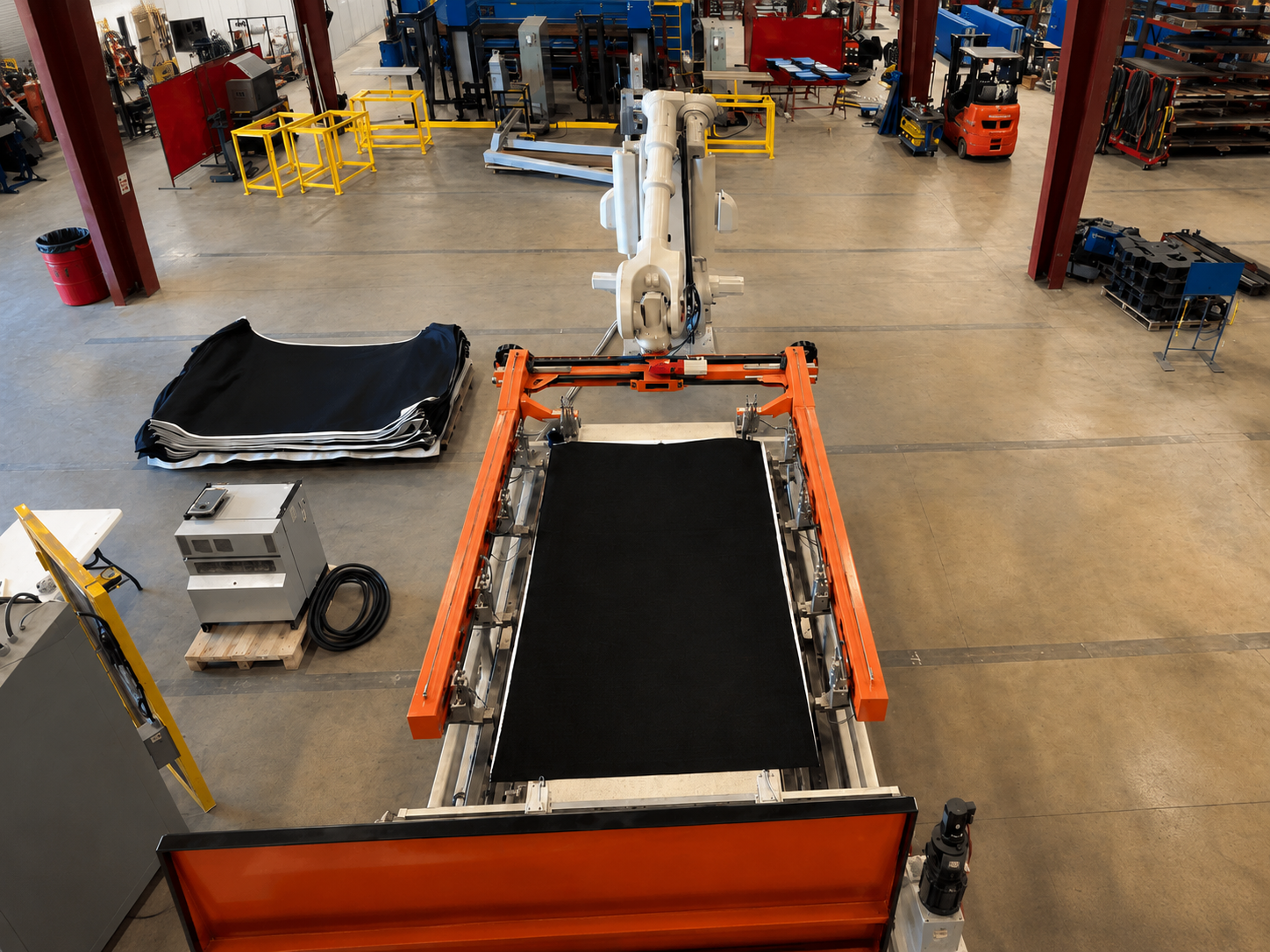

A dual-roll carpet station supplies carpet material to a pull-to-length cutting system that feeds the infrared oven. A dual-stack barrier material station supplies acoustic material to a pick-and-place system, which loads the convection oven. After both materials are heated to the required process temperature, they are merged together and transferred by a robot into a hydraulic forming press. Once the forming cycle is complete, the robot removes the finished part from the press and places it onto a takeaway conveyor for transfer to the customer’s next manufacturing process.
Specifications
| Product Being Processed | Automotive Acoustics & Carpets |
| Overall System Dimensions | 104’-2” L x 47’-8” W x 26’-0” H |
| Interior Chamber Dimensions | 24’-8” L x 10’-6” W x 7’-9” H |
| Type of Heating System | Electric and Natural Gas |
| Convection Oven Operating Temperature | 200°F – 500°F (93°C – 260°C) |
| I.R. Oven Operating Temperature | 400°F – 1000°F (204°C – 538°C) |
| Product Support | Pull to Length and Cut System, Pick and Place System, Load and Unload Conveyors, Unload Robot, Forming Press. |
| Controls | PLC-based control system with operator HMI and UL-listed control enclosure. |
Alternative capabilities
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
- Airflow: Vertical top-down or horizontal across the product.
- Industries Served: Automotive, Medical, Food Processing, Aerospace
- Materials Processed: Cotton Shoddy, Asphalt-Based Acoustics, and Similar Composite Materials.
- Heating Systems: Electric or Natural Gas
