DTI-1487 Drying Oven
Customer directive
Our customer required a powered cart assembly to safely load and unload large honeycomb composite components while maintaining precise product positioning throughout the drying cycle. Due to the product’s small internal passages, the system was engineered to deliver controlled vertical airflow for uniform temperature distribution and repeatable drying performance. The process also required rapid heating followed by an accelerated cooling cycle to meet production requirements.
Description

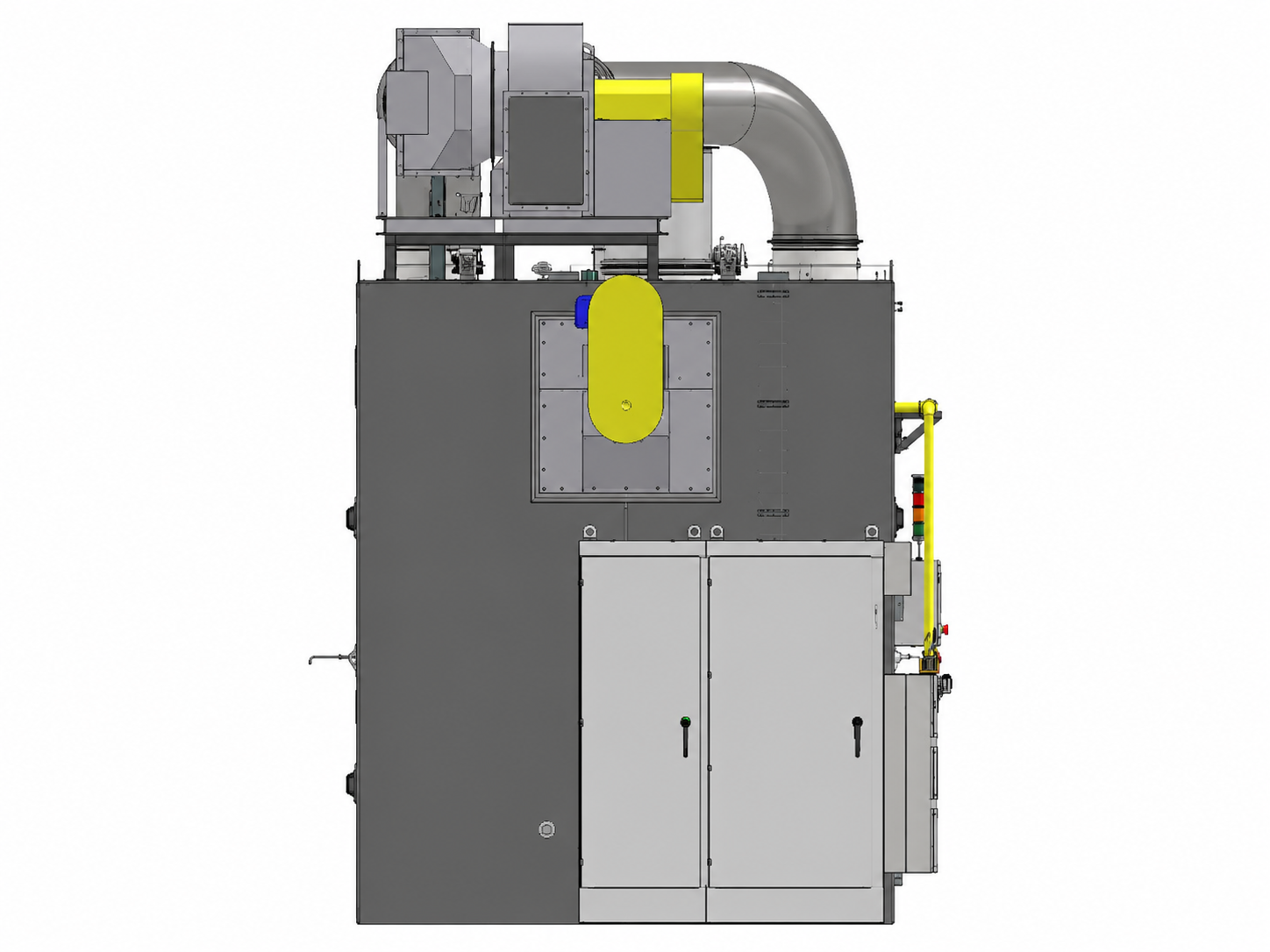

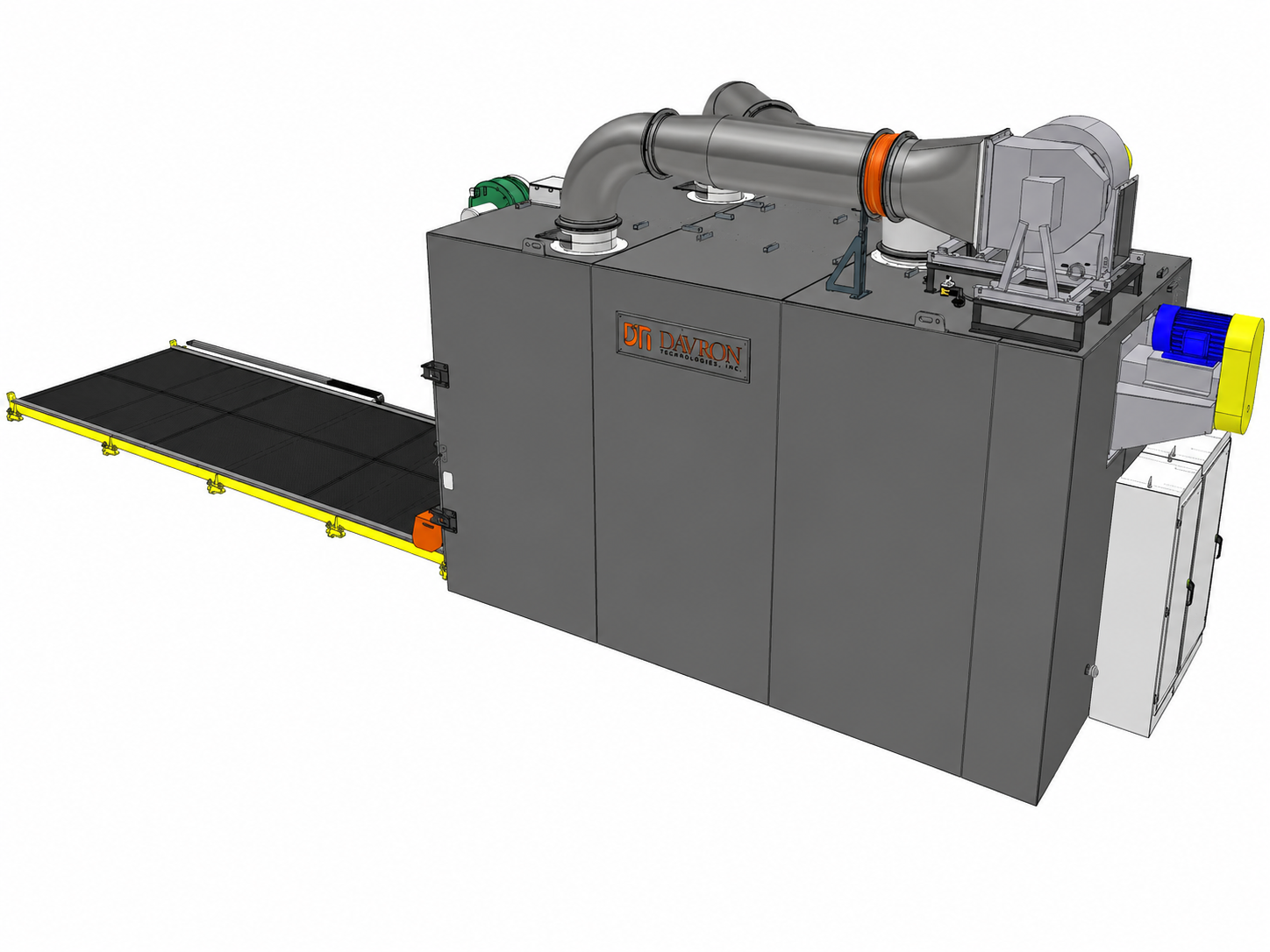

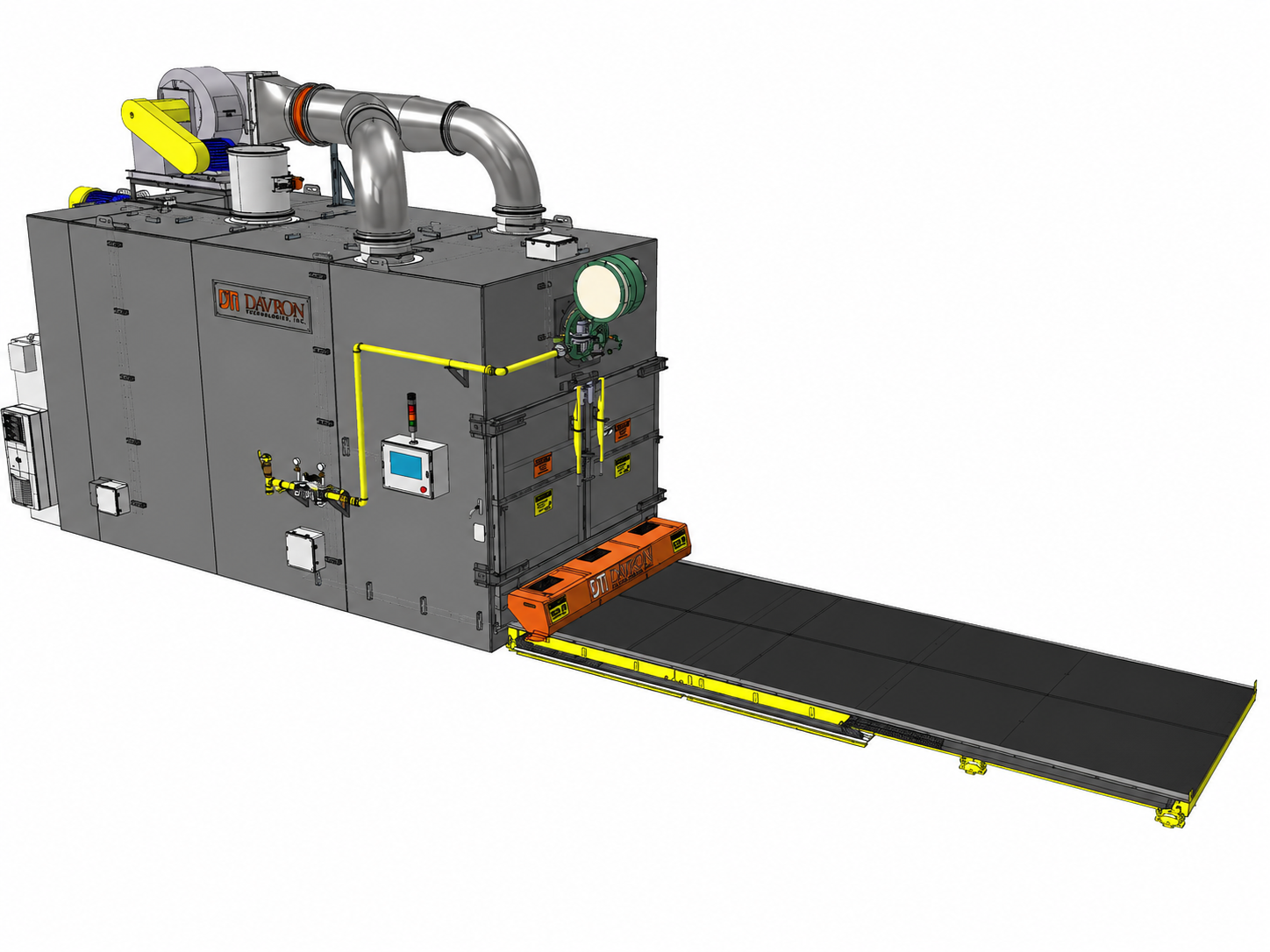

DTI-1487D utilizes a vertical up-flow air distribution system specifically designed to compensate for the pressure drop created by honeycomb composite materials. The powered product cart provides stable support while allowing unrestricted process airflow through the product. An adjustable product support framework accommodates multiple panel sizes while maintaining consistent product geometry throughout the drying process. This flexibility allows the same system to process a wide range of product sizes without requiring dedicated tooling.

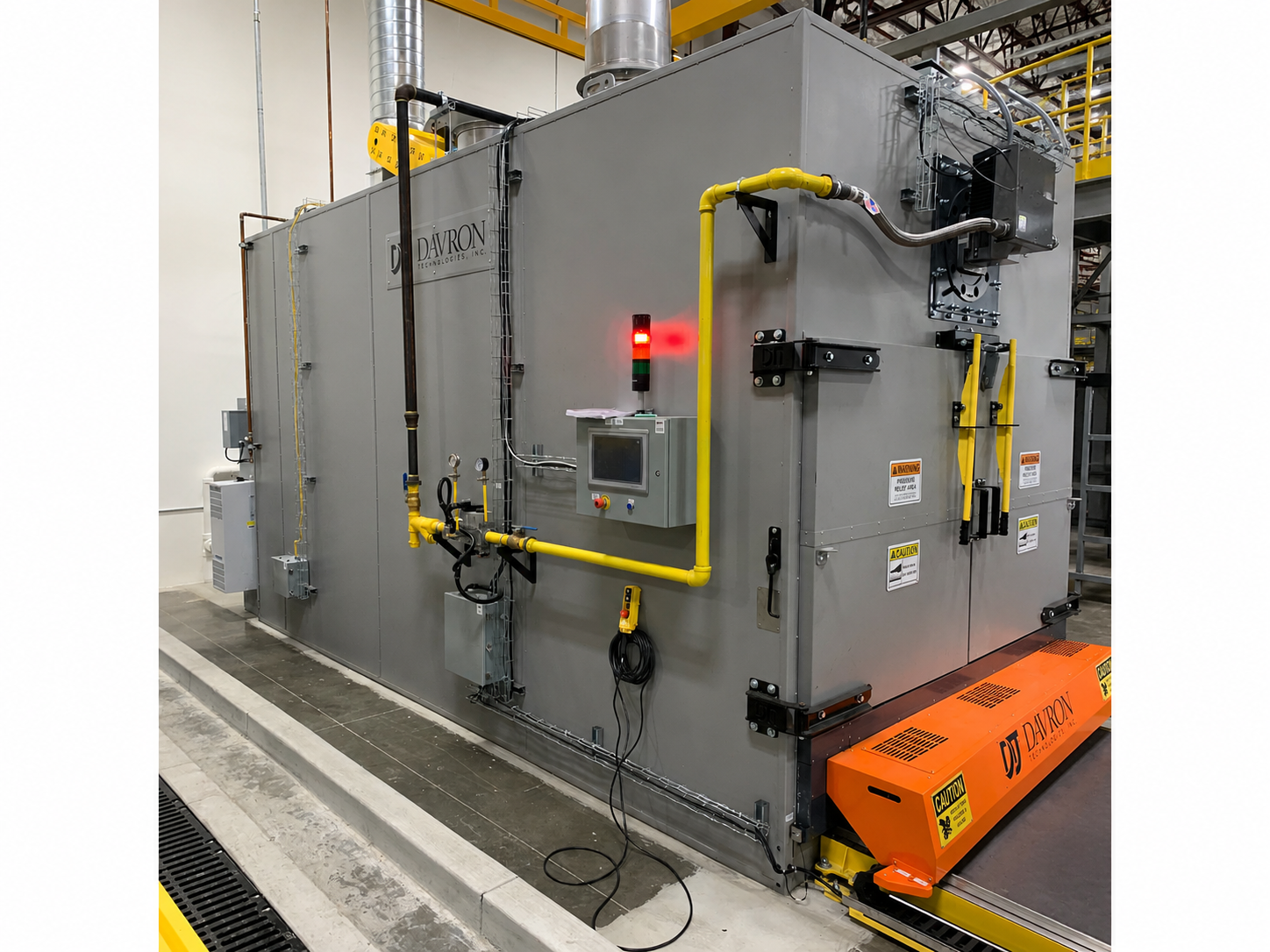

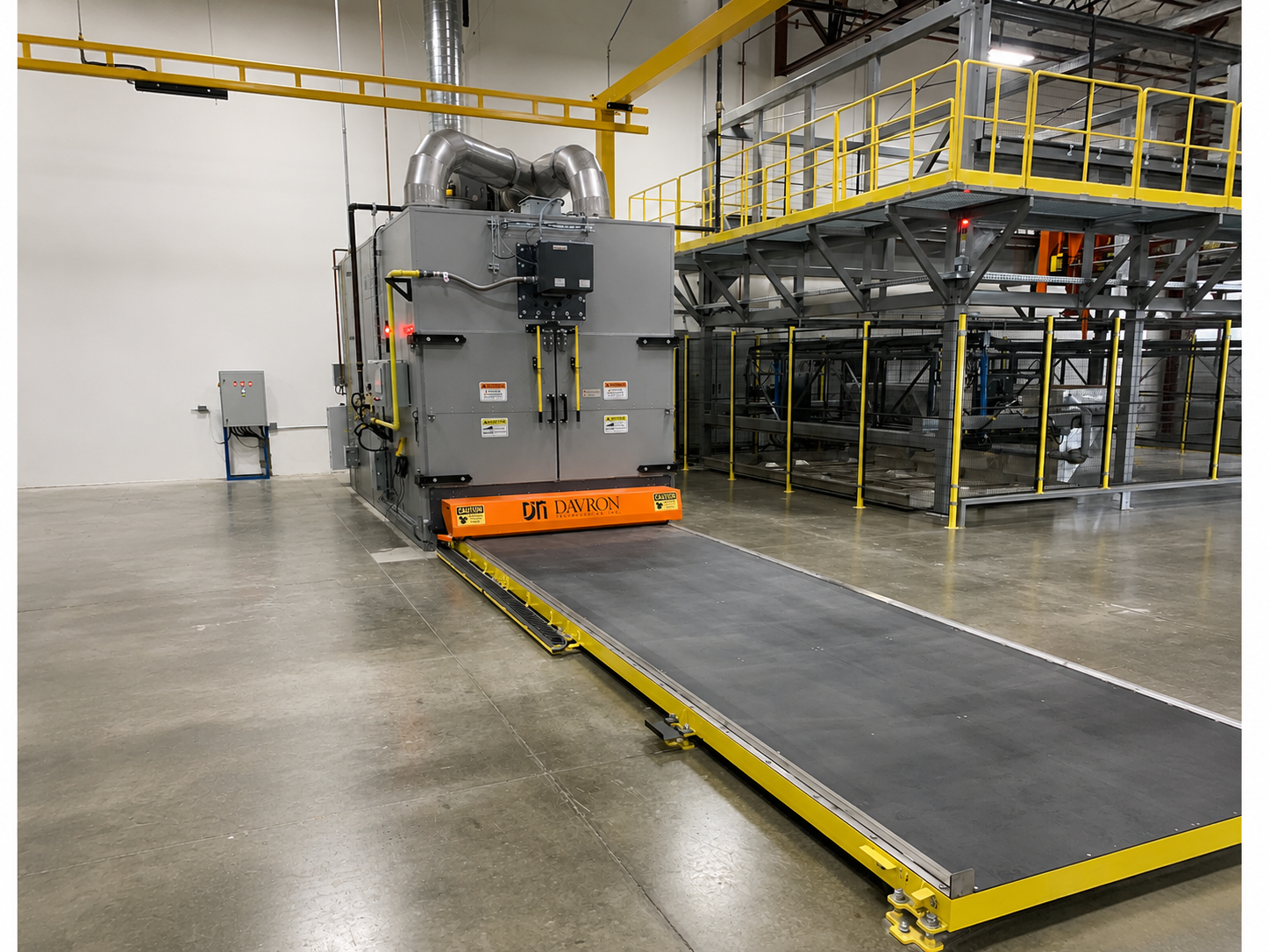

The free-standing track system installs directly onto an existing plant floor without requiring special foundations. The PLC-based control system manages cart movement, ramp-and-soak temperature profiles, burner operation, accelerated cooling, and system sequencing through an operator HMI. A paperless chart recorder provides electronic process documentation, and the complete system is factory assembled and tested prior to shipment.
Specifications
| Product Being Processed | Honeycomb Composites |
| Overall System Dimensions | 20’-0” L x 9’-0” W x 13’-6” H |
| Interior Chamber Dimensions | 14’-6” L x 7’-5” W x 5’-9” H |
| Type of Heating System | Natural Gas Burner |
| Design Operating Temperature | 140°F to 620°F (60°C to 327°C) |
| Maximum Operating Temperature | 700°F (371°C) |
| Product Support | Powered product cart with adjustable support framework |
| Controls | PLC-based control system with operator HMI and UL-listed control enclosure |
Alternative capabilities
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
- Airflow: Vertical up, vertical down, horizontal, or custom airflow patterns based on product requirements.
- Industries Served: Aerospace, composites, catalyst manufacturing/regeneration, and other industrial thermal processing applications.
- Materials Processed: Honeycomb composites, cellular materials, and other products requiring controlled directional airflow.
- Process Applications: Drying, curing, preheating, bonding, solvent drying, and other thermal processes.
- Heating Systems: Direct-fired gas, indirect-fired gas, electric, or thermal oil heating systems.
