DTI–1331 Autoloader
Description

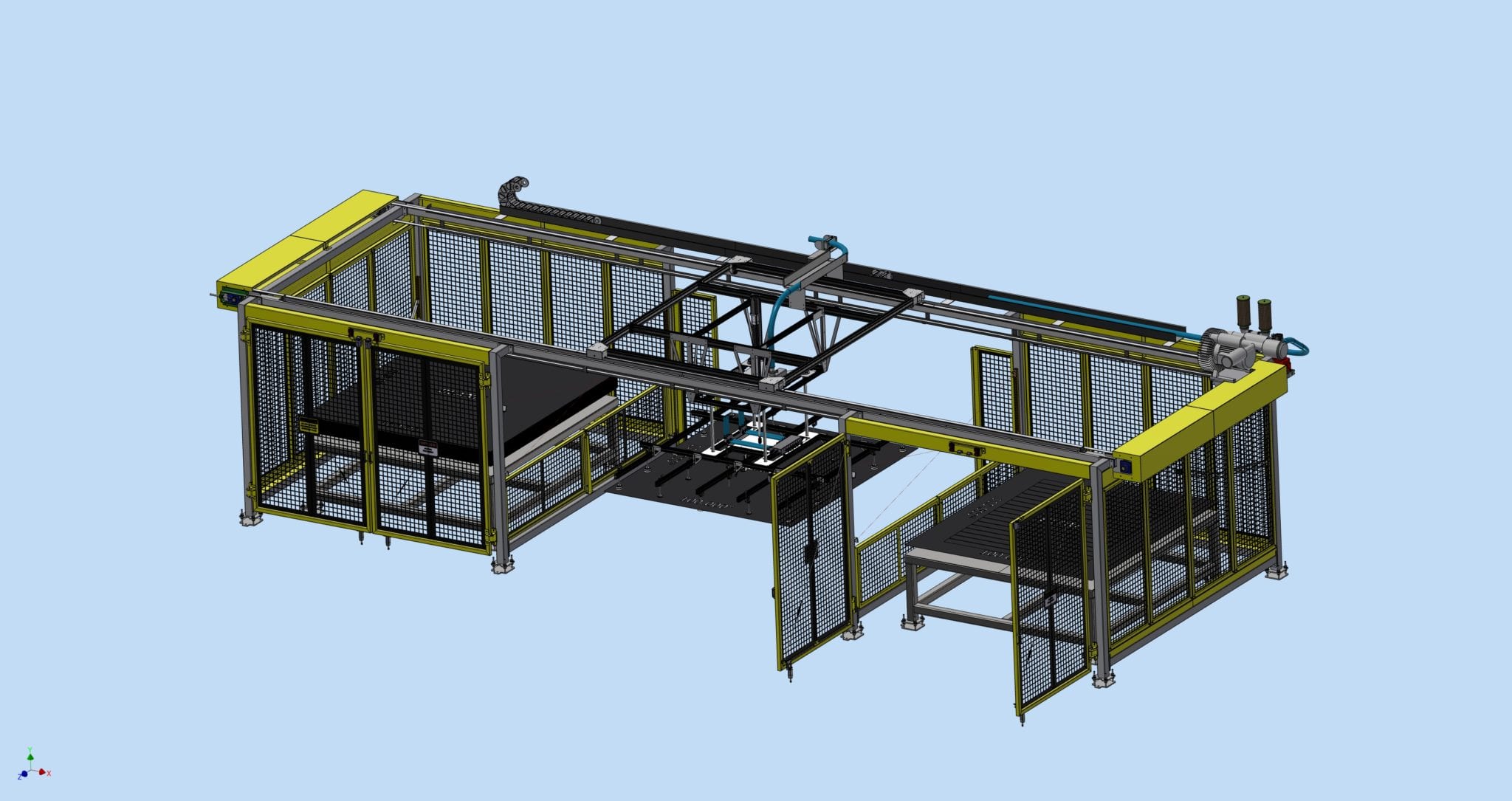

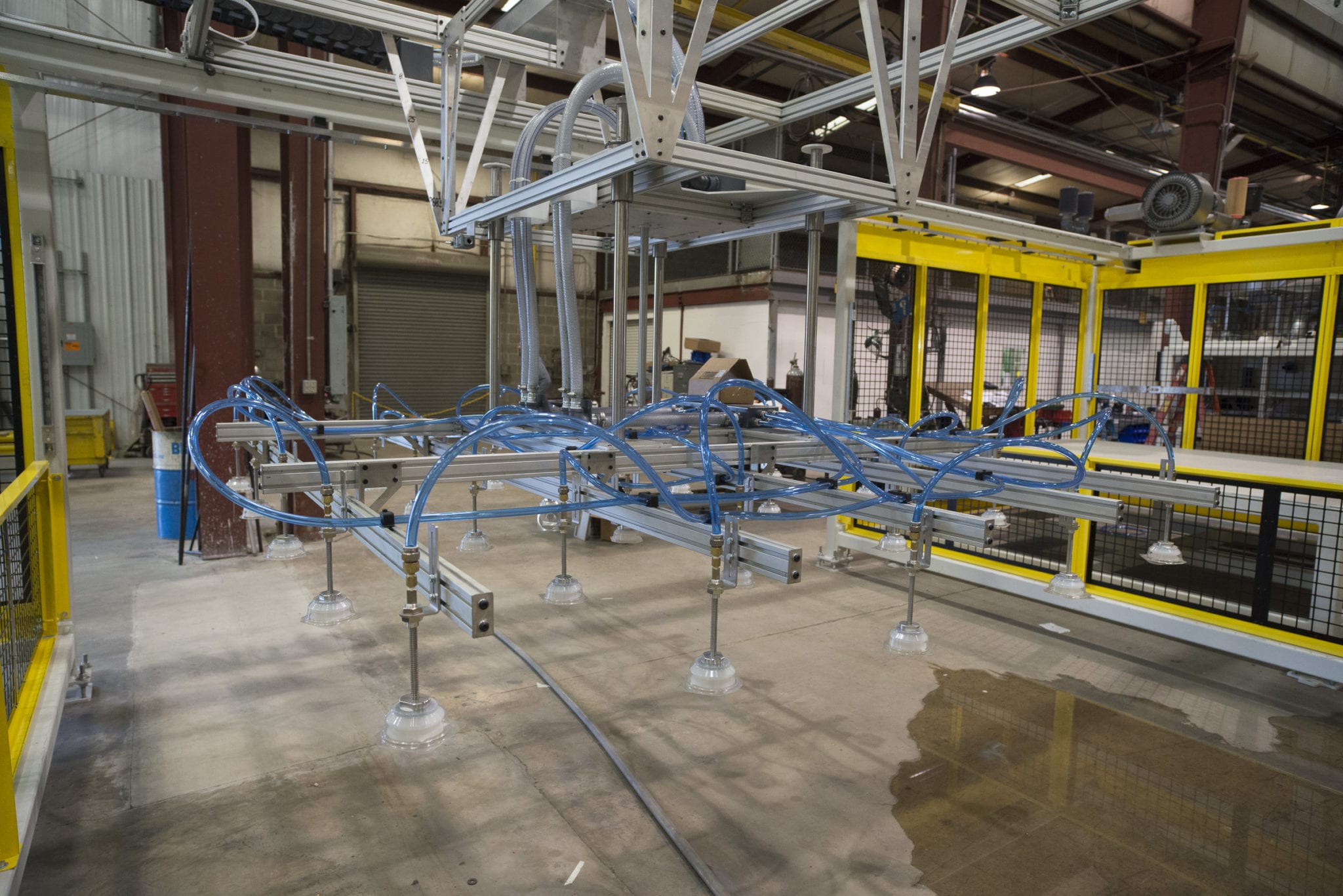

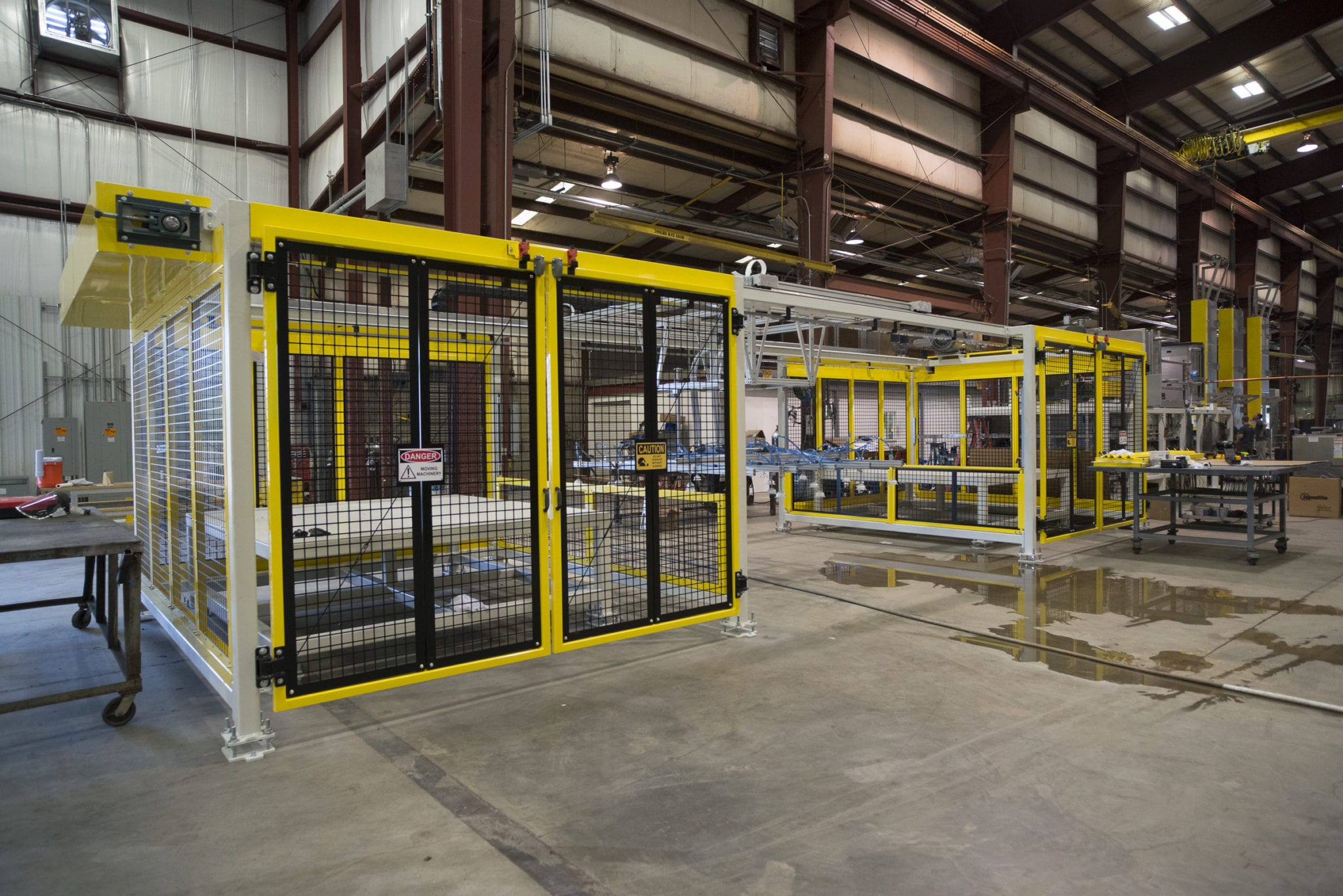

The DTI-1331 provides air suction to pick up the product from material stacks placed on both side of the oven load conveyor. The pick and place system design does not required any special foundations or floor pits for installation. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.
Specifications
| Product Being Processed | Carpet product, material used in the automotive industry |
| Overall Length, Width, Height | 41′-0″ L x 12′-9″ W x 11′-0″ H (12497mm x 3886mm x 3353mm) |
| Heated Chamber Length, Width, Height | N/A |
| Type of Heating System | N/A |
| Design Operating Temperature | N/A |
| Maximum Operating Temperature | N/A |
| Product Support | Indexing Pick and Place system for loading the product onto a fixed indexing conveyor for the oven |
| Controls | PLC controls with operator HMI, UL listed control enclosure |
