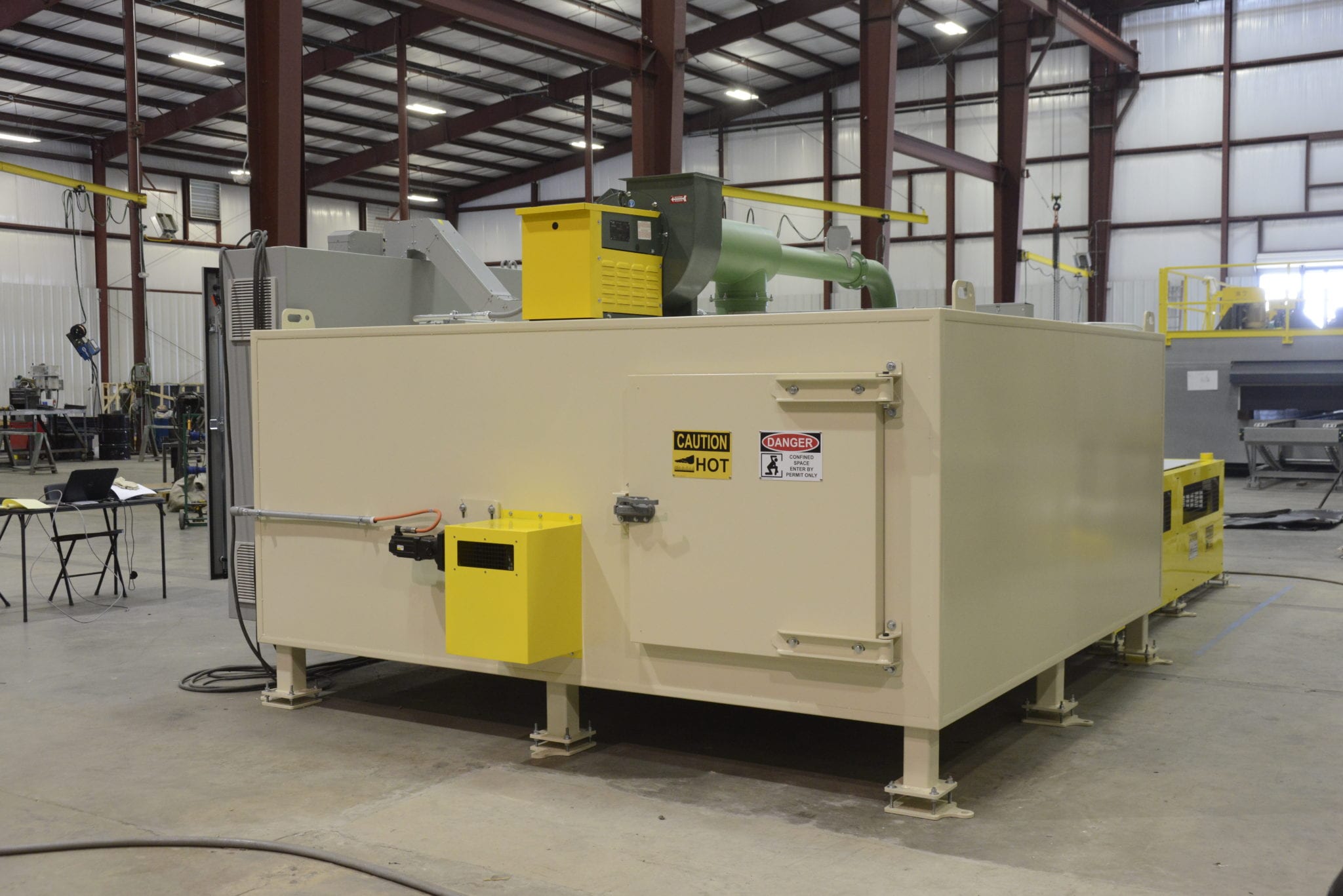

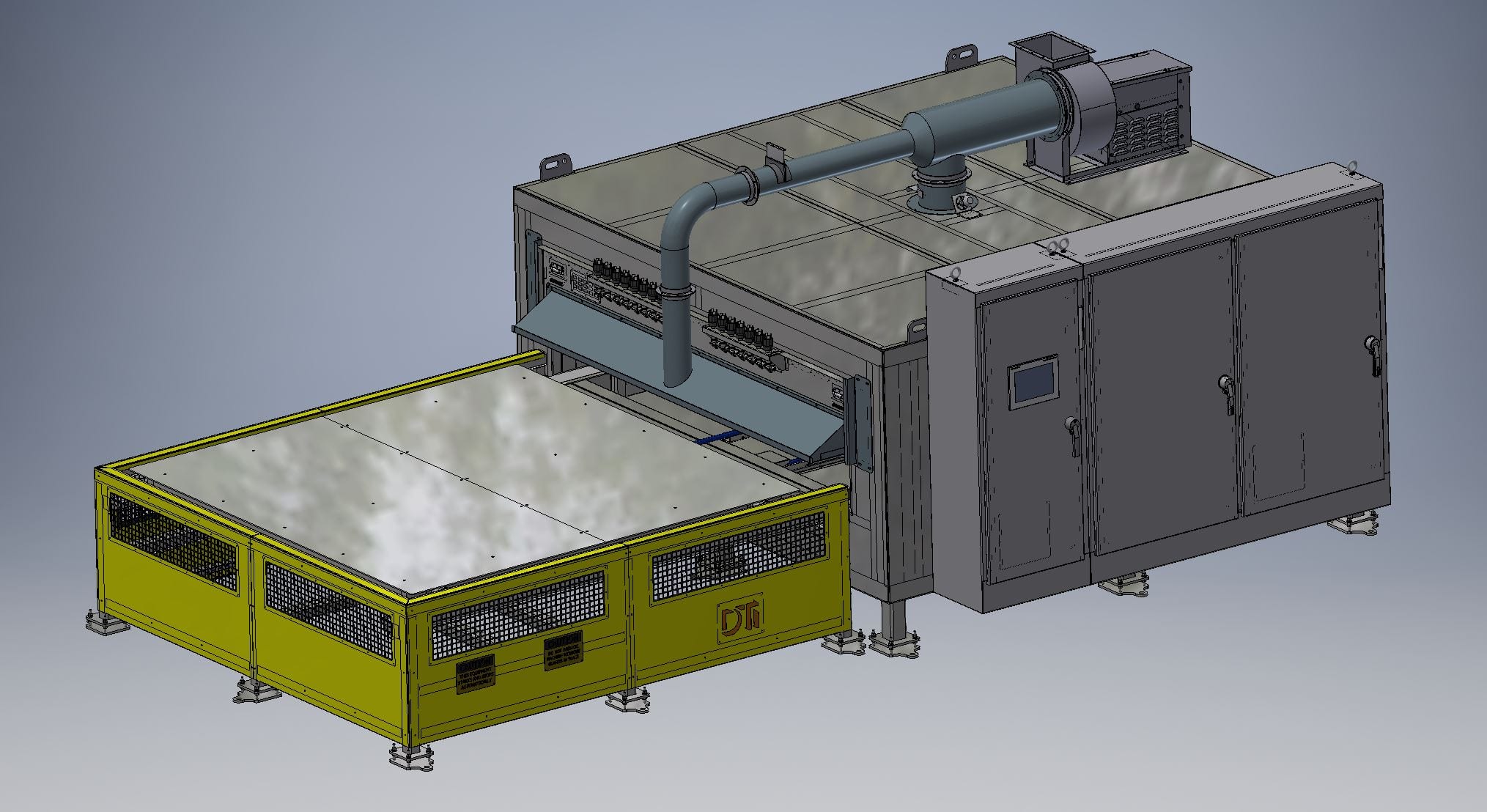

DTI-1326 IR Shuttle Oven

SPECIFICATIONS

Product Being Processed Automotive Carpet
Overall Length, Width, and Height 20′-6″ L x 11′-0″ W x 7′-0″ H                                                                (6248mm x 3353mm x 2134mm)
Heated Chamber Length, Width, and Height 9′-8″ L x 10′-1″ W x 3′-9″ H                                                                  (2946mm x 3073mm x 1143mm)
Type of Heating System IR Heat
Designed Operating Temperature 300°F – 800°F (149°C – 427°C)
Maximum Operating Temperature 800°F (427°C)
Product Support Aluminum top shuttle
Controls PLC control with operator HMI, UL listed control enclosure

CUSTOMER DIRECTIVE

The DTI-1326 pre-heat oven allows parts to be loaded and unloaded from the same location making it easy for one operator to manage for small production or test runs or even full production depending on the process. This system provides adjustability for shuttle speed, load and heat timers, and heat distribution to ensure consistent results for secondary operations such as pressing, molding, and forming.

DESCRIPTION

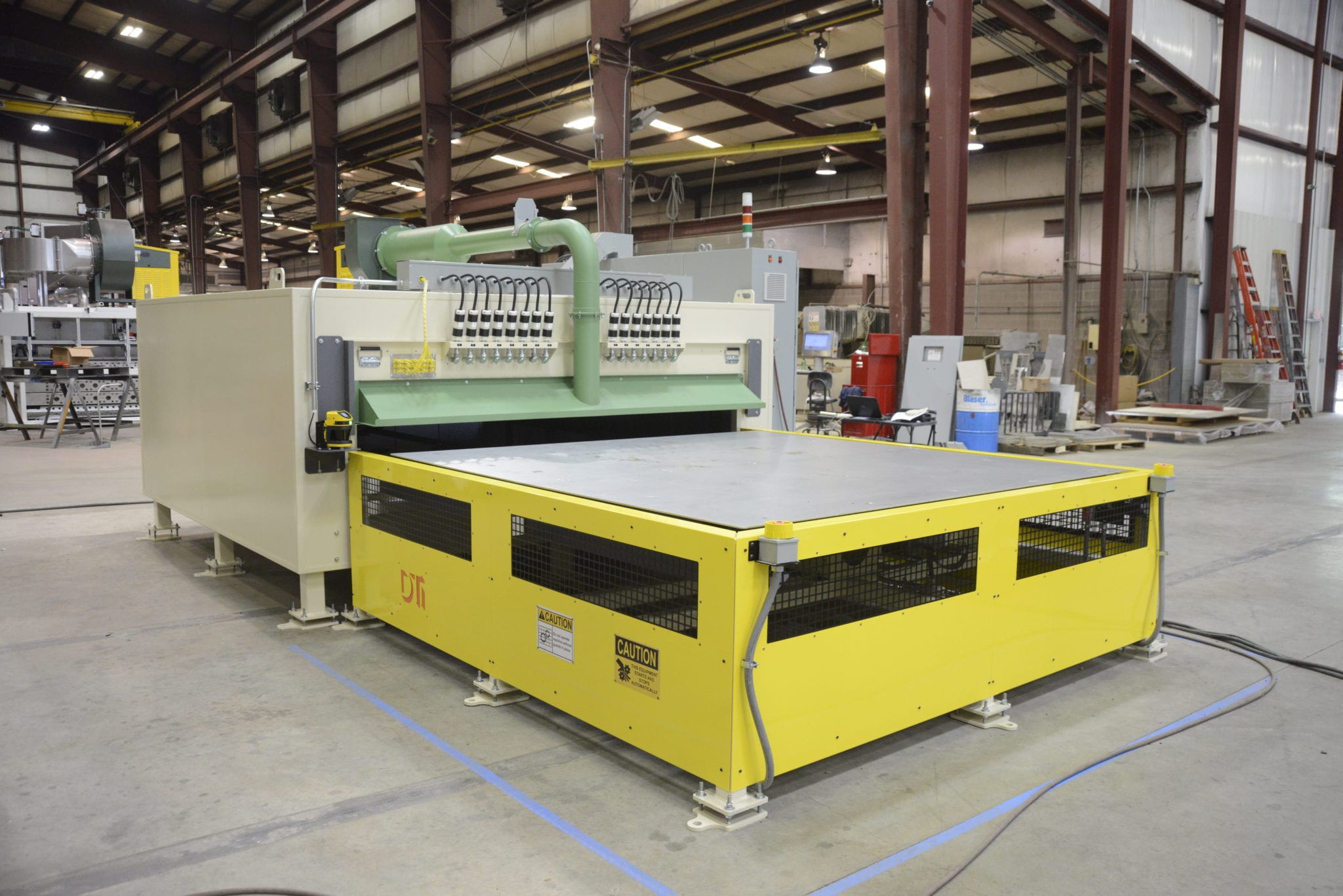

The aluminum top shuttle conveyor moves in between the load position and heat position. Two adjustable timers allow the load and heat duration to be changed as needed. 15 independently adjustable IR heaters allow for fine tuning of even heat distribution on the automotive carpet. VFD control of the shuttle drive allows shuttle speed to be increased or decreased depending on process requirements and a floor scanner ensures operators are clear of the shuttle while it is in motion.

ALTERNATIVE CAPABILITIES

Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:

  • Airflow: This particular application uses IR heating and natural convection but could utilize forced air convection with vertical or horizontal air flow
  • Industries Served: Automotive, aerospace, textile
  • Materials Processed: Acoustics, woven, non-wovens, carpet, composites
  • Other Processes: Drying, curing, bonding, scorching
  • Heating Systems: Gas, electric, hot oil, contact/conduction

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
