DTI-1286 Conveyor Equipment

SPECIFICATIONS

Product Being Processed Various Closed Cell Foam Products
Web Width Width can be as required by web for process
Belt Type Belt selection varies depending on application

DESCRIPTION

These type conveyors utilize different types of belting material depending upon the application for the particular conveyor. The horizontal oriented conveyors typically use smooth surface belts and incline and decline conveyors utilize rough surface belts to prevent the foam web from slipping on the belt. These type conveyors are powered by gear reducers with the motors controlled by variable frequency drives to allow communication and speed coordination with the entire process line. At Davron we design and manufacture these conveyors sized as required for the particular application. Specialized designs can be created to utilize multiple conveyors to transition web products to and from machines or change web direction during manufacturing. The conveyors include automatic belt tensioning systems as well as automatic belt tracking systems. We design and fabricate the conveyor beds and support structures for the particular application. These type conveyors can also include special features for cooling, product measurement, and can be cover to prevent any airborne debris from settling on the product.



CONVEYOR TYPES

Horizontal Conveyors: Horizontal conveyors are belted conveyors used to transport web foam products between process machines.

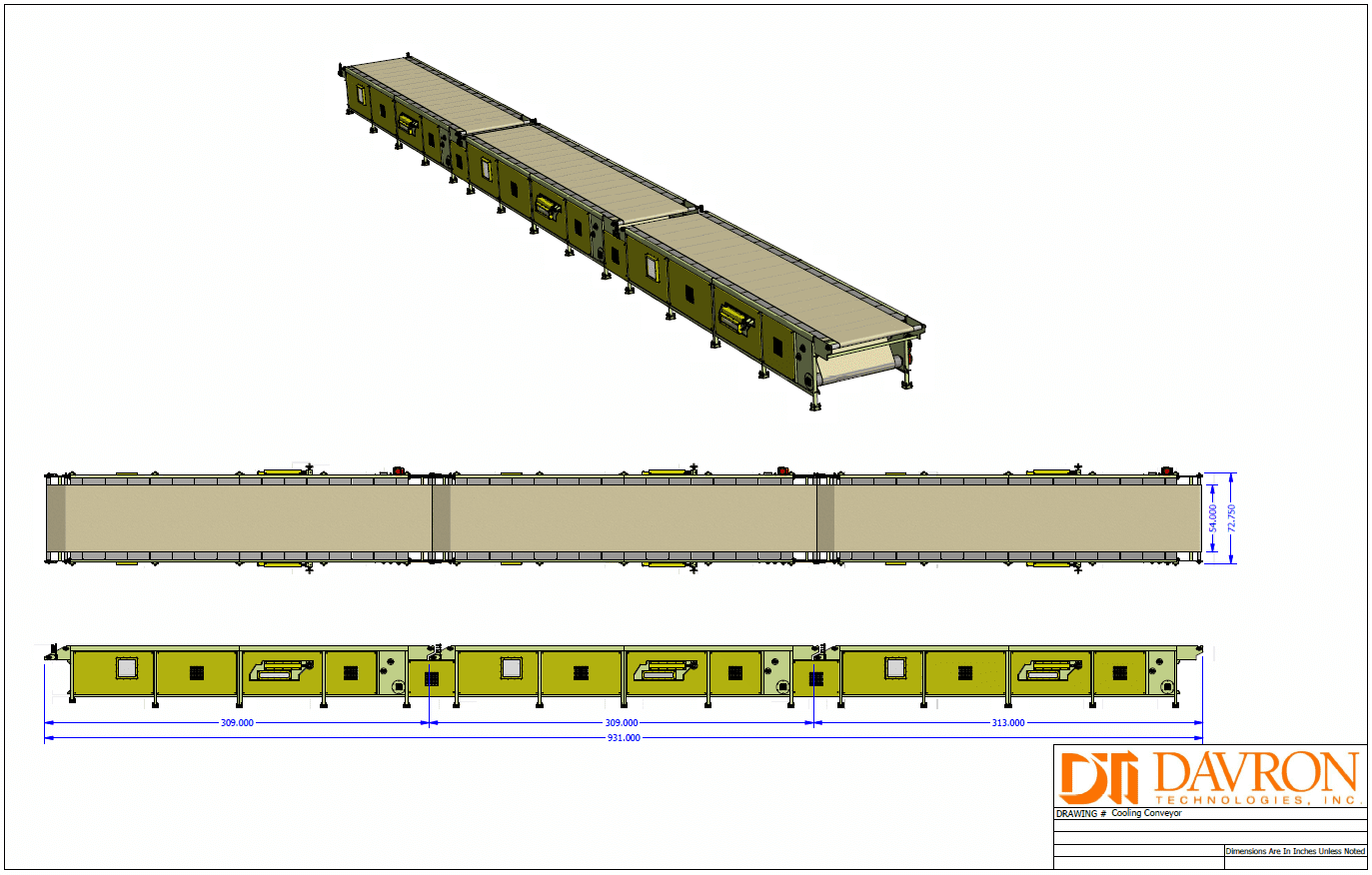

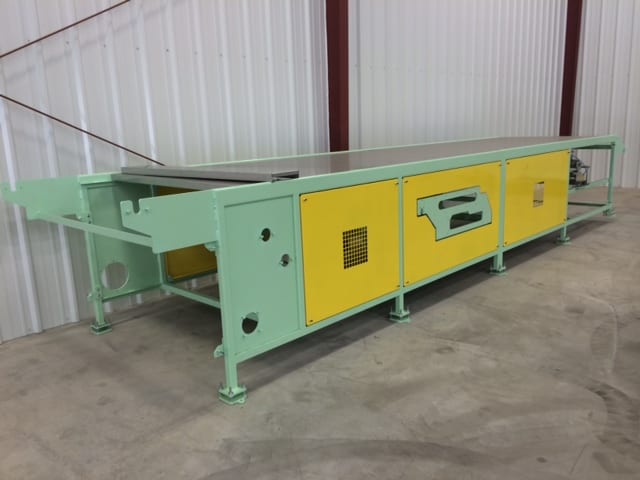

Cooling Conveyors: Cooling conveyor configuration can vary but are used to allow the foam to cool. The actual cooling can be ambient air cooling or the system can include an air distribution system to force cool the product with ambient air.

Incline/Decline Conveyors: These type conveyors are utilized to transport the foam web vertically at a particular angle to transfer the web to different elevations. In most cases this would be an application were different pieces of the process equipment are located on different floor levels within the plant facility.

ALTERNATIVE CAPABILITIES

If your project requires material conveying equipment but with different operational parameters please contact us. Davron Technologies, Inc. designs and manufactures equipment similar to this type to meet many unique process requirements, including but not limited to, the following:

  • Materials Processed: Foam Products, any type continuous web, or roll goods type product that require conveyance during manufacturing.
  • Alternate Designs: Sized as required in regards to conveyor length and width. Special features can be added to the design for various processes such as cooling operations.

Please contact us to discuss your project and process requirements in detail. In many cases we can help you create a solution for your manufacturing process.

Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
