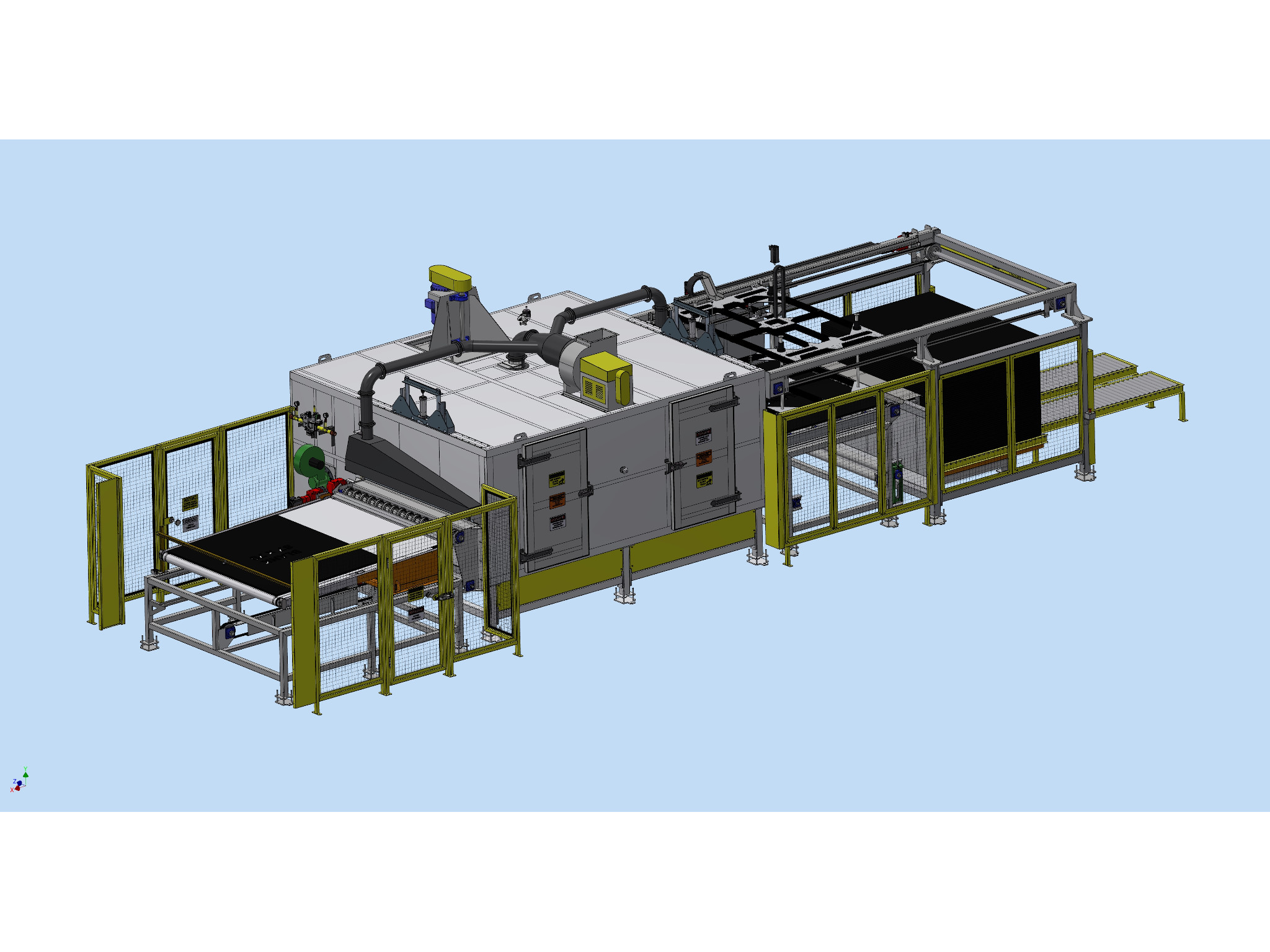

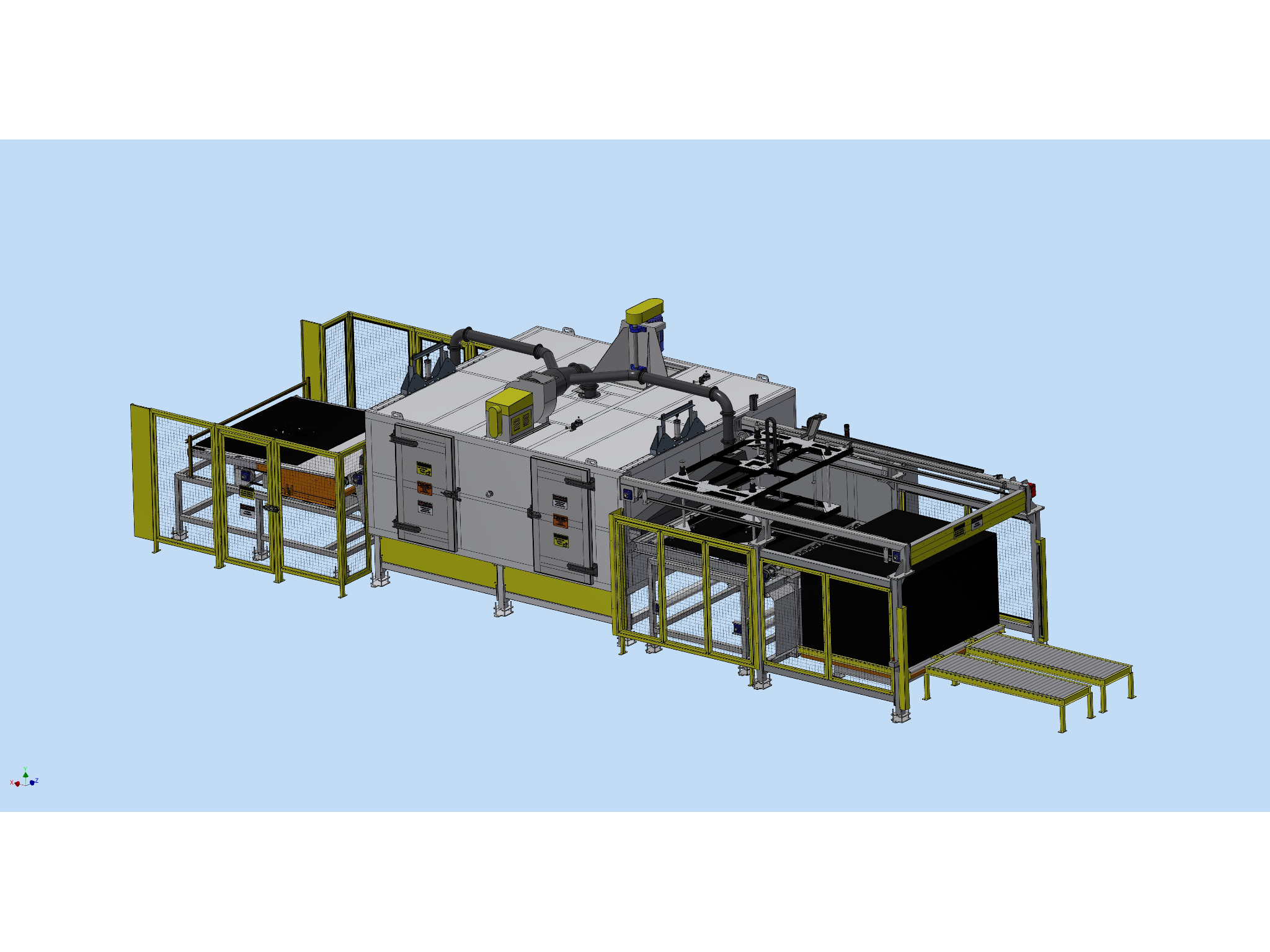

DTI – 1283 Conveyor Oven System


Product Being Processed

Insulating pad product, material used in the Automotive Industry

Overall Length, Width, Height

49′-0″ L x 16′-0″ W x 12′-3″ H (14935mm x 4877mm x 3734mm)

Heated Chamber Length, Width, Height

13′-10″ L x 12′-0″ W x 5′-0″ H (4216mm x 3658mm x 1524mm)

Type of Heating System

Modulating Natural Gas Fired Burner

Design Operating Temperature

380°F – 450°F (193°C – 232°C)

Maximum Operating Temperature

500°F (260°C)

Product Support

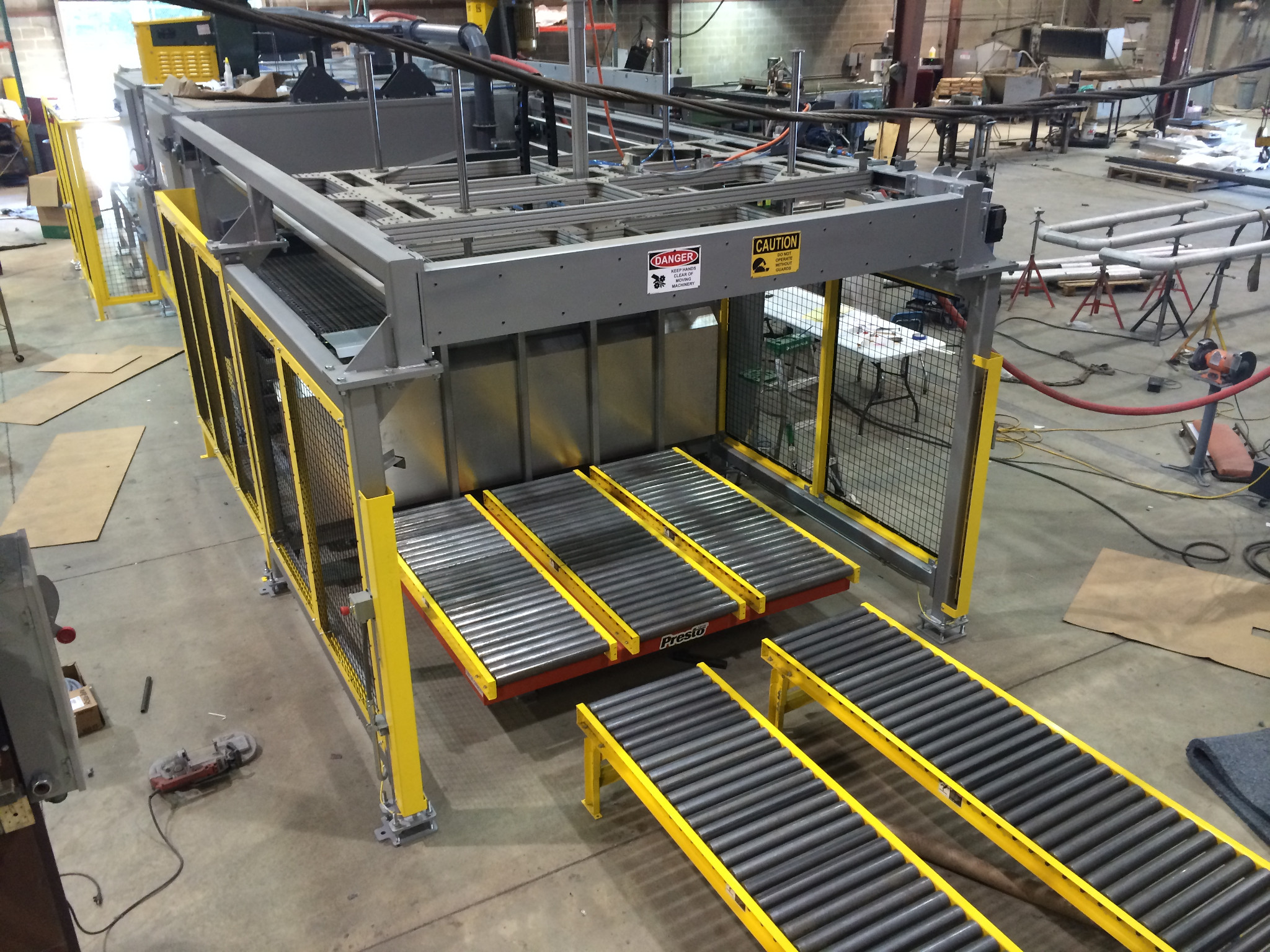

Indexing Pick and Place system for loading the product onto a fixed indexing conveyor. The product leaves the oven and goes onto a transfer conveyor which delivers the product to a forming press.


PLC controls with operator HMI, UL listed control enclosure



Our customer wanted to place the products on an indexing conveyor that would move the product into the heated chambers for process. The heated air in the oven is forced through the insulation pad with a vertical down airflow. The airflow design provides efficiency in regards to process time and uniformity.


The DTI-1283 provides a vertical down airflow to heat this particular product. The design velocity accounts for the pressure drop through the product to provide an efficient process. The system’s conveyors provide a stable surface to support the product and is open to allow process air to flow freely through the product. The design of the conveyors allow the customer to load and unload product easily. The conveyor belts travel approximately 8 feet in just 6 seconds to move into and out of the heated chamber quickly. The oven and transfer conveyor systems designs do not required any special foundations or floor pits for installation. The control system includes PLC control of the ramp and soak temperature profile controls, starting sequence for all components and flame safety systems. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.


Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:

  • Airflow: Designs can be completed to provide airflow from any direction within the heated chamber as required by the product. This particular process is vertical up and down airflow but it can be horizontal from either side.
  • Industries Served: Automotive, Insulate and Carpet Manufacturing/Regeneration, or any industry that requires batch processing.
  • Materials Processed: Particularly any Automotive Carpet or Insulating Pad Product, with a directional flow requirement. The oven /conveyor system can also be used for many other types of products and can be designed in any size required.
  • Other Processes: Preheating, Curing, Drying, Solvent Drying, Bonding
  • Heating Systems: Modulating Gas Fired Direct or Indirect, Electric, or Thermal Oil.
