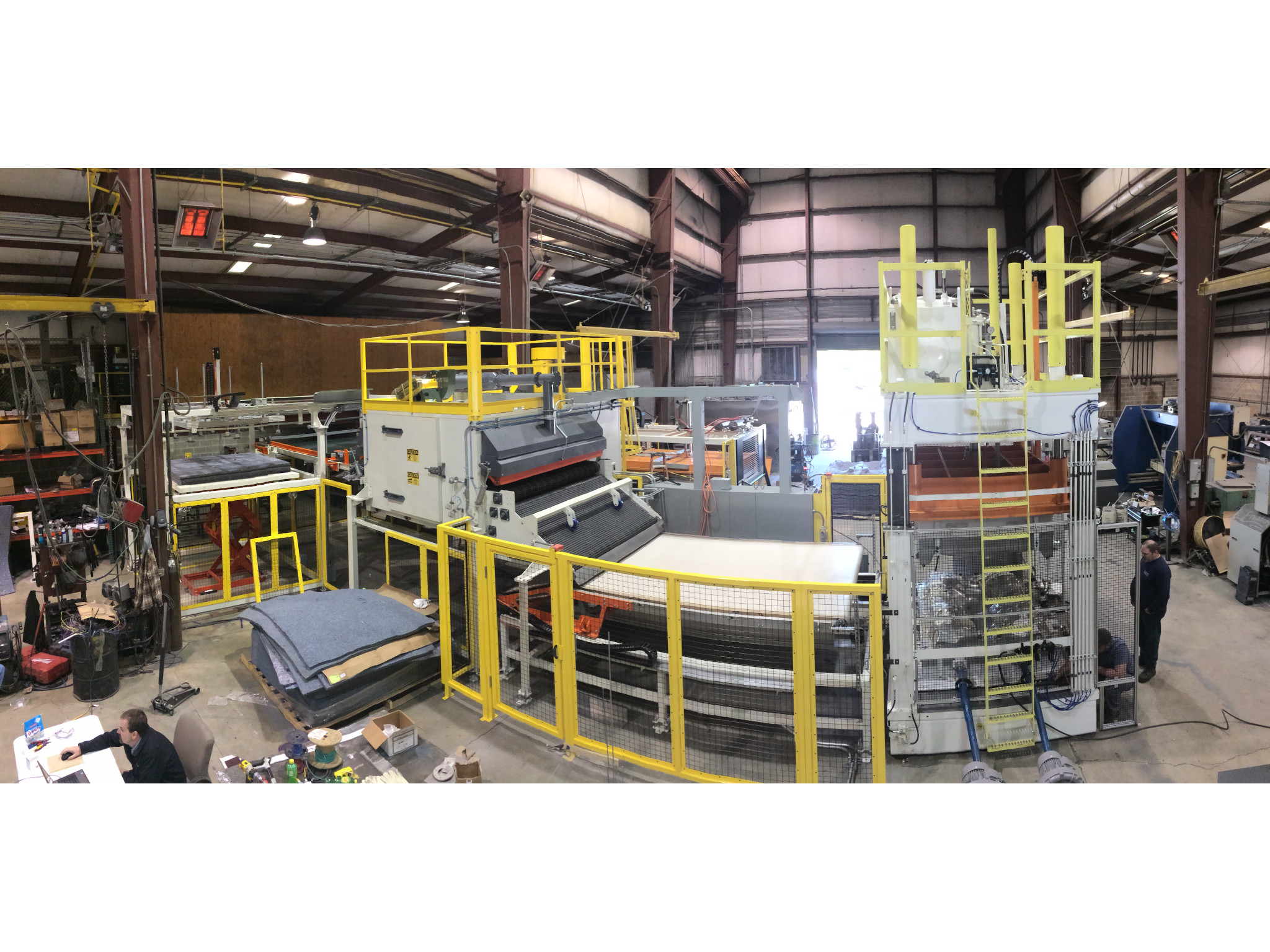

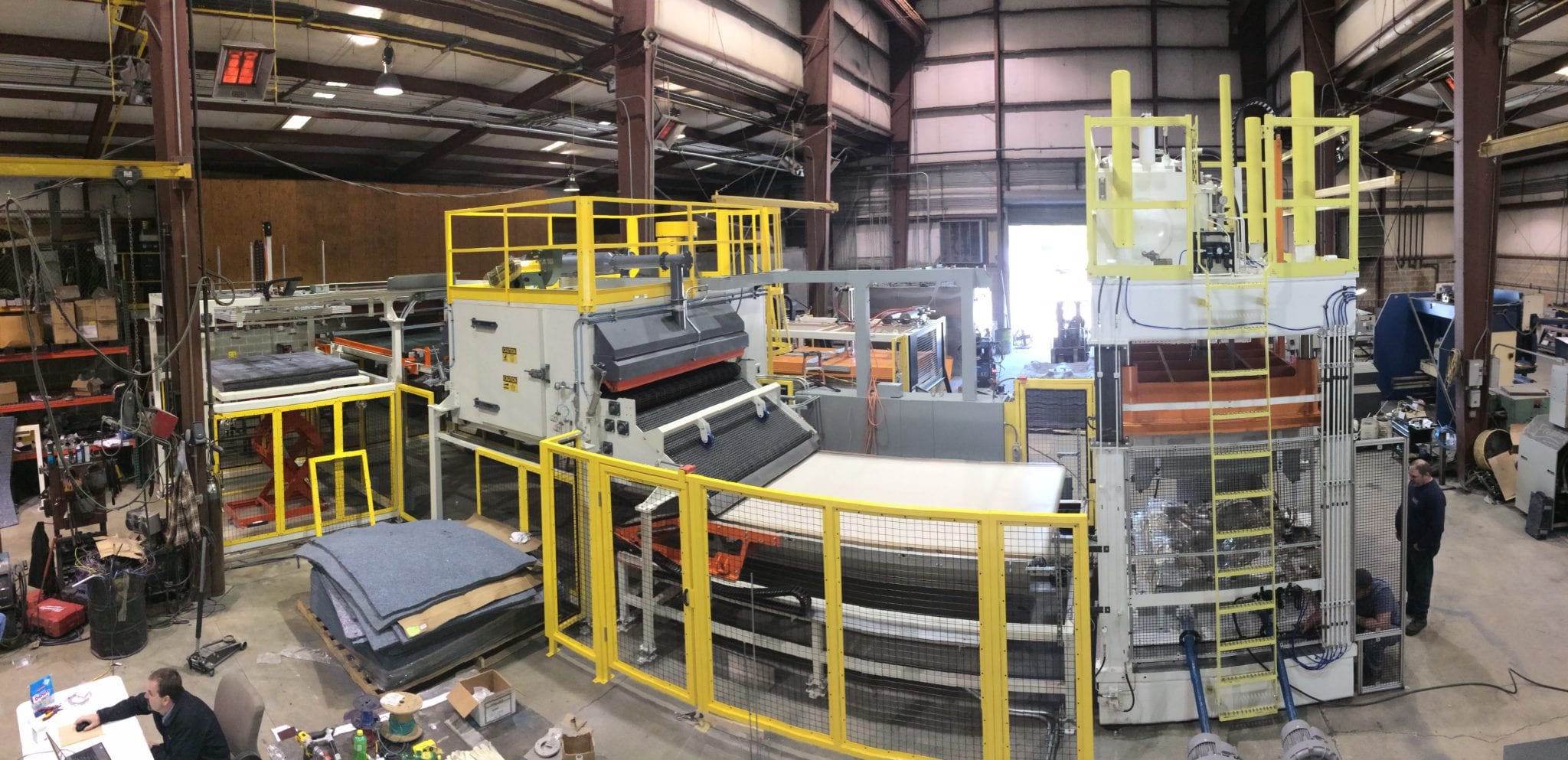

DTI-1276 Loft Preheat Oven System
SPECIFICATIONS
| Product Being Processed | Insulating Pad Product, Material Used in the Automotive Industry |

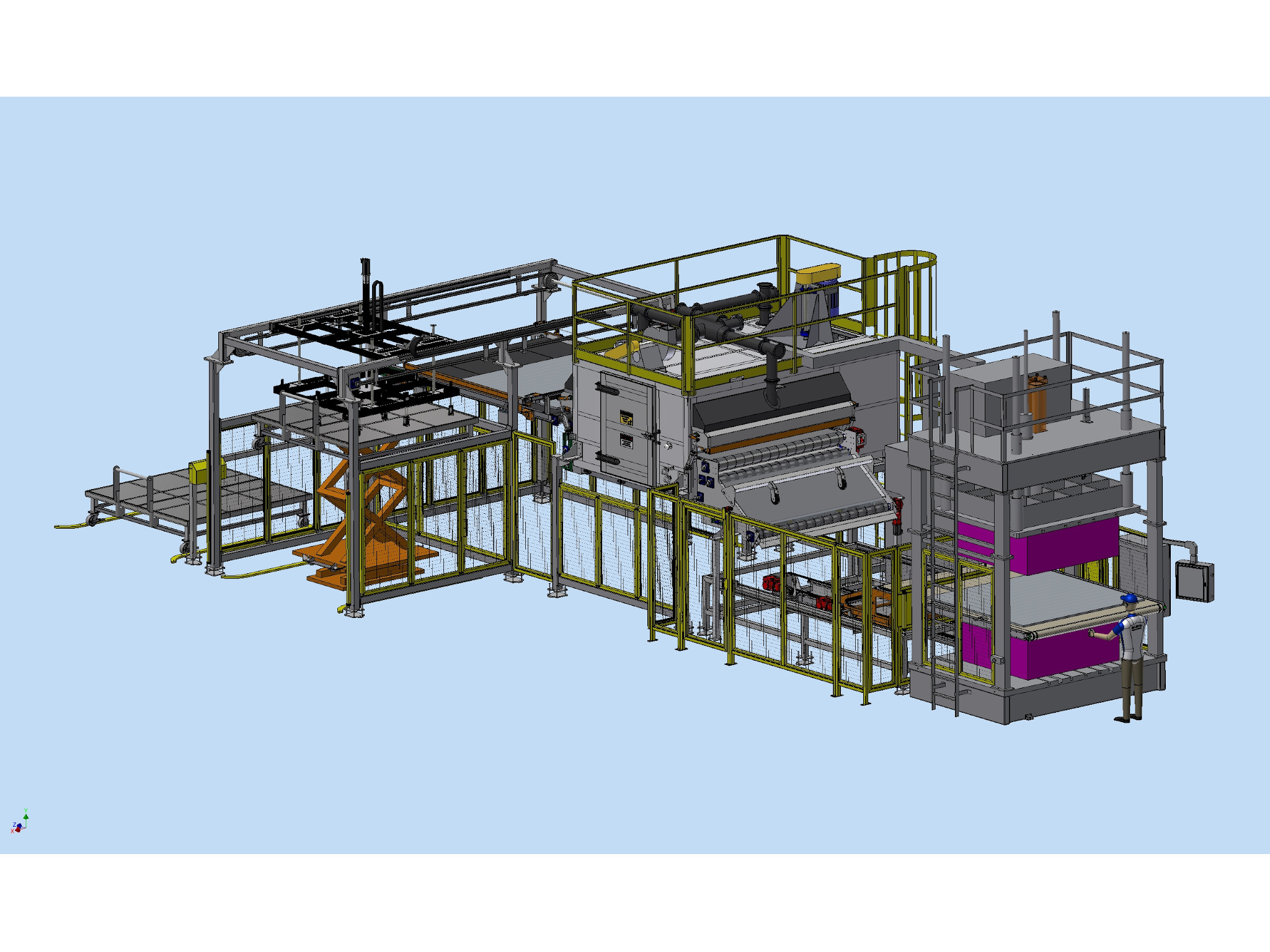

| Overall Length, Width, Height | 43′-3″ L x 25′-7″ W x 18′-8″ H (13183mm x 7798mm x 5690mm) |
| Heated Chamber Length, Width, Height | 7′-0″ L x 11′-4″ W x 4′-0″ H (2134mm x 3454mm x 1219mm) |
| Type of Heating System | Electric Heat |
| Design Operating Temperature | 350°F – 450°F (177°C – 232°C) |
| Maximum Operating Temperature | 500°F (260°C) |

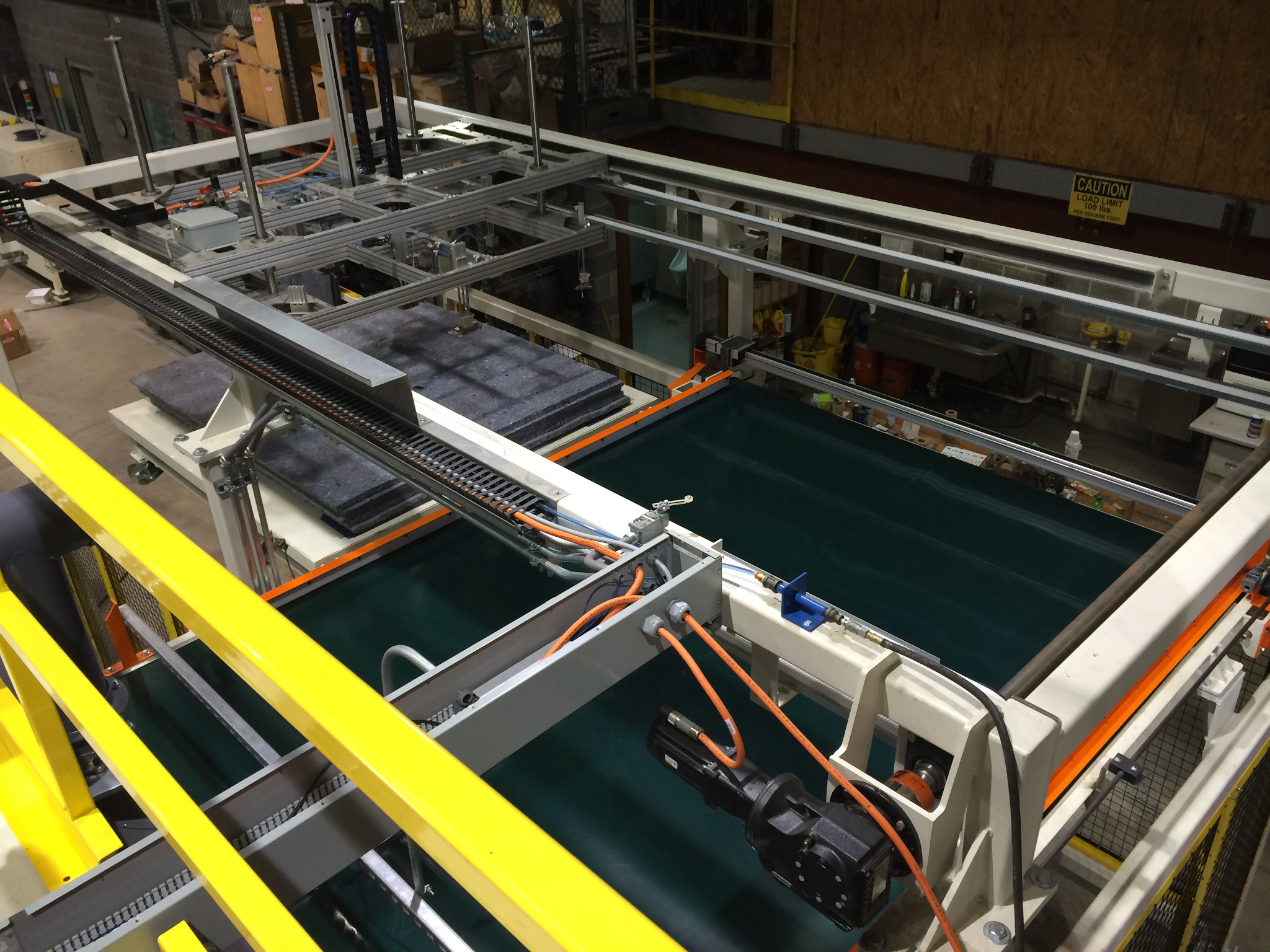

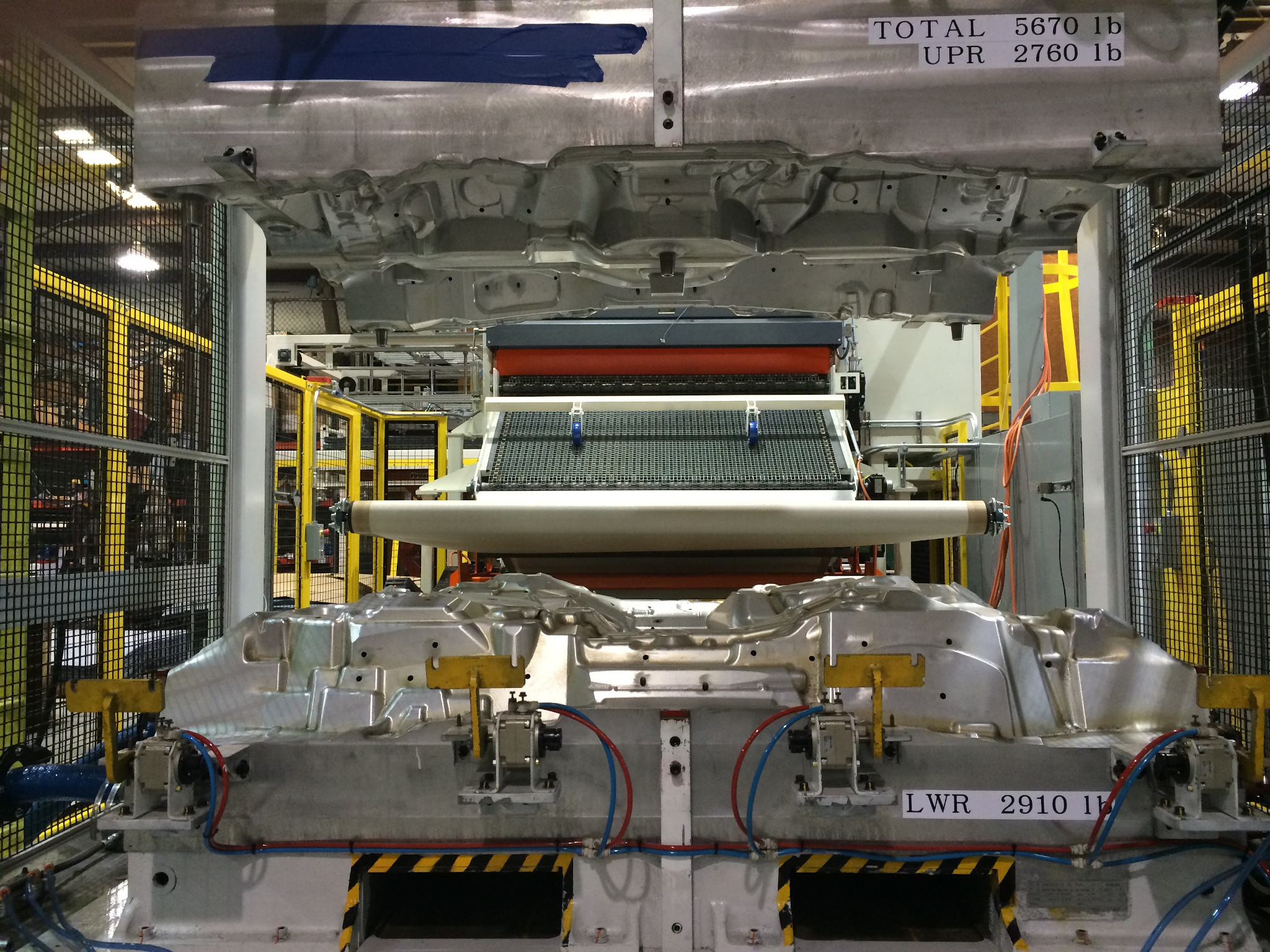

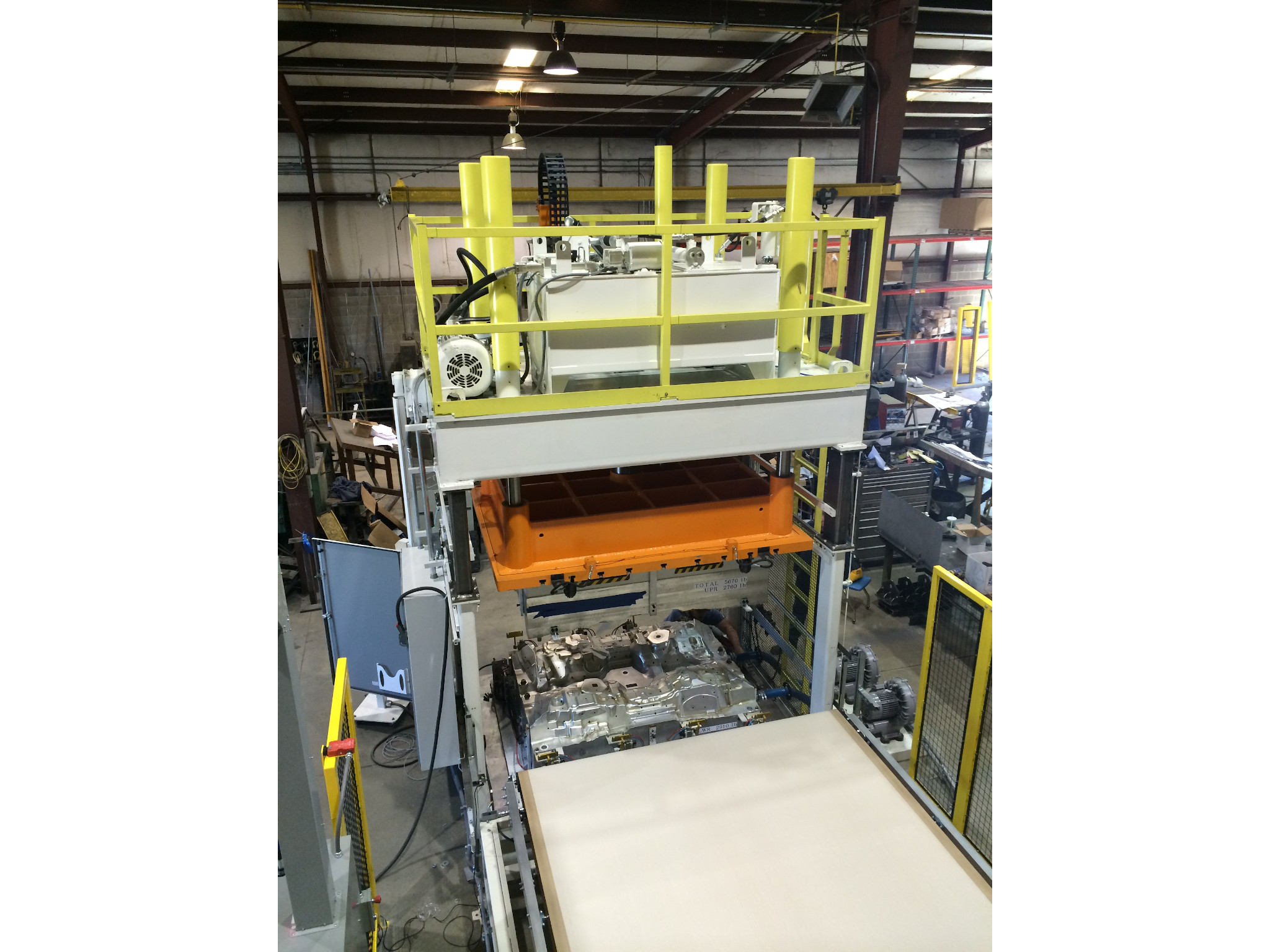

| Product Support | Indexing Pick and Place system for loading the product, onto a fixed indexing conveyor for the oven. The product leaves the oven to go onto a transfer conveyor which delivers the product to a forming press. |
| Controls | PLC control with operator HMI, UL listed control enclosure |
CUSTOMER DIRECTIVE
Our customer wanted to place the products on an indexing conveyor that would move the product into the heated chambers for process. The heated air in the Oven is forced through the insulation pad with a vertical down airflow. The airflow design provides efficiency in regards to process time and uniformity.
DESCRIPTION
The DTI-1276 provides a vertical down airflow to heat this particular product. The design velocity accounts for the pressure drop through the product to provide an efficient process. The systems conveyors provide a stable surface to support the product and is open to allow process air to flow freely through the product. The design of the conveyors allow the customer to load and unload product easily and the belts travel approximately 8 feet in just 6 seconds to move into and out of the heated chamber quickly. The oven and transfer conveyor systems do not require any special foundations or floor pits for installation. The control system includes PLC control of the cart, ramp and soak temperature profile controls, starting sequence for all components, and flame safety systems. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
- Airflow: Designs can be completed to provide airflow from any direction within the heated chamber as required by the product. This particular process is vertical up and down airflow but it can be horizontal from either side.
- Industries Served: Automotive, Insulate and Carpet Manufacturing/Regeneration, or any industry that requires batch processing.
- Materials Processed: Particularly any Automotive Carpet or Insulating Pad Product, with a directional flow requirement. The oven /conveyor system can also be used for many other types of products and can be designed in any size required.
- Other Processes: Preheating, Curing, Drying, Solvent Drying, Bonding
- Heating Systems: Modulating Gas Fired Direct or Indirect, Electric, or Thermal Oil.
Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
