DTI-1195 Preheat Batch Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

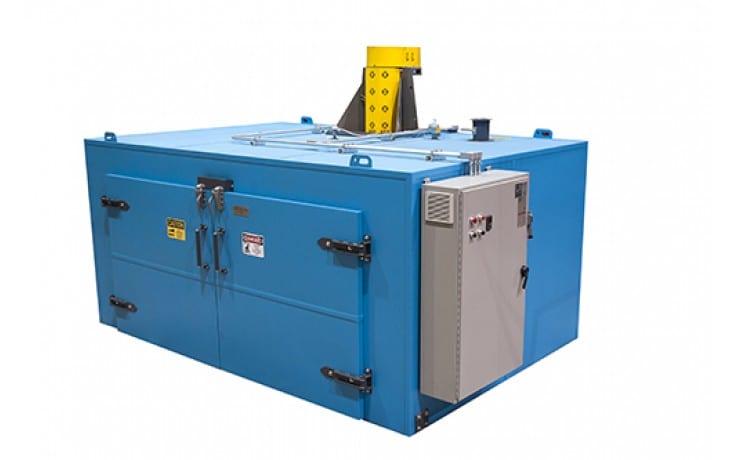

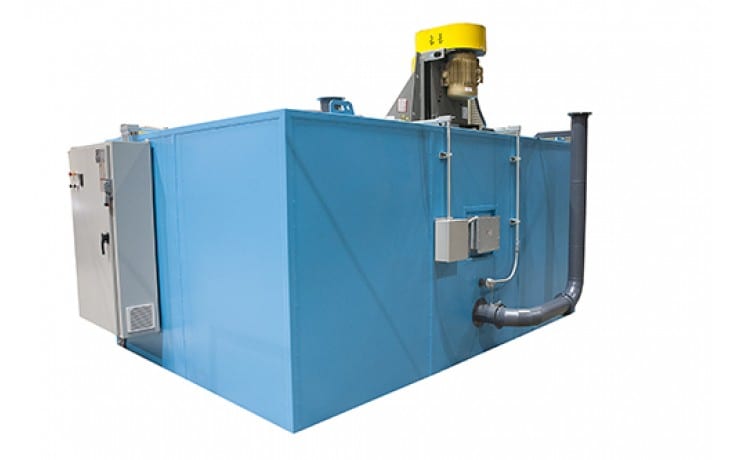

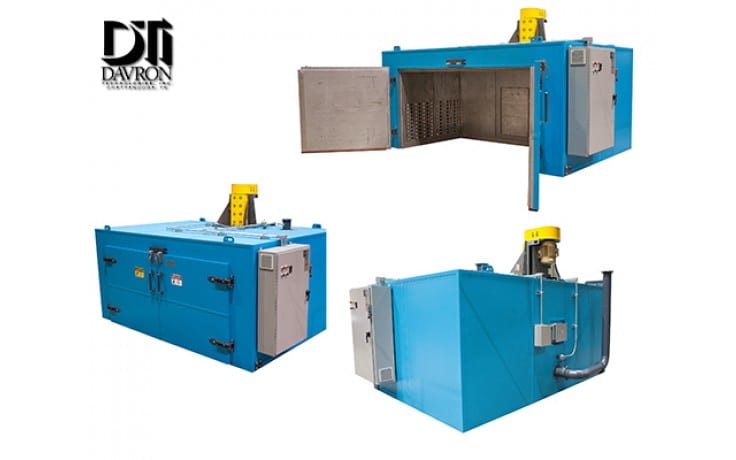

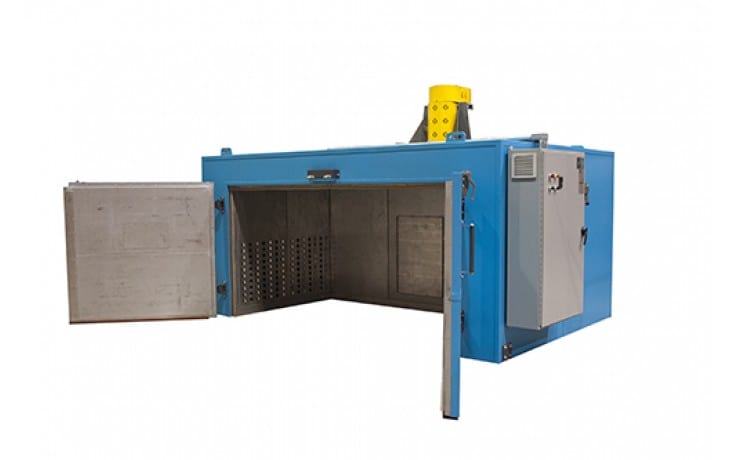

The DTI-1195 custom preheat batch oven is used in the automotive industry to preheat wiring harnesses before being moved to the production line. The oven includes 2 full opening doors located on the entrance end of the oven. The oven is designed to accommodate 2 custom product carts. The carts are loaded in the oven with the wiring harnesses and the doors are closed.
SPECIFICATIONS
| Overall dimensions | 13′-6″ wide x 6′-8″ high x 6′-2″ long (4115mm x 2032mm x 74mm) |
| Interior dimensions | 10′-0″ wide x 5′-0″ high x 5′-6″ long (3048mm x 1524mm x 1676mm) |
| Insulation thickness | 4″ |
| Heat Source | Electric |
| Maximum operating temperature | 300°F (149°C) |
| Operating temperature range | 150°F – 200°F (66°C – 93°C) |
| Operating voltage | 480-volt / 3-phase / 60-hertz |
| Control | Digital indicating temperature control and Digitial indicating over temperature control |
| Misc | Control Panel assembled in accordance with UL508A guidelines |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
