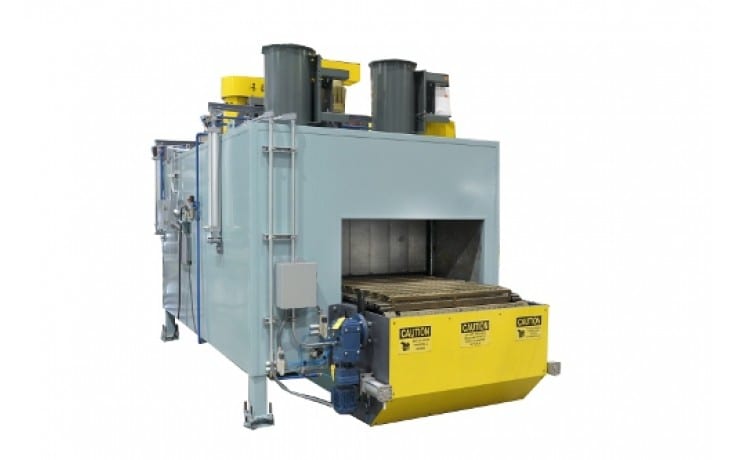

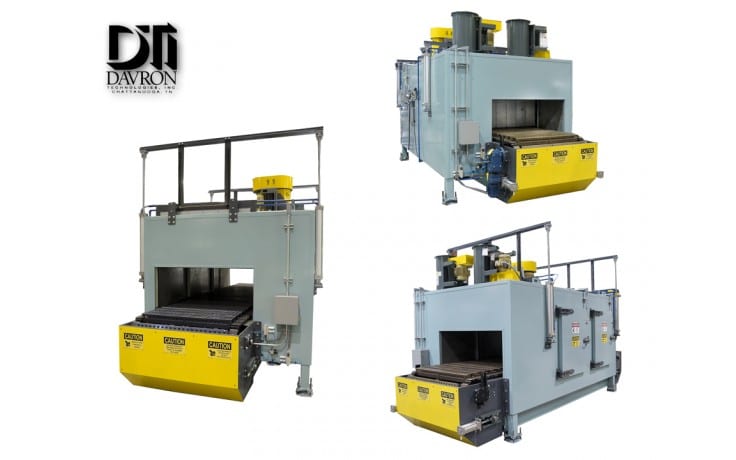

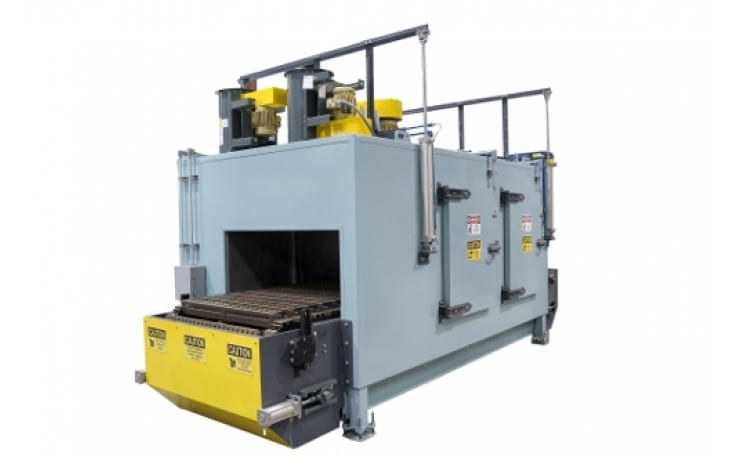

DTI-1160 Indexing Conveyor Oven

SPECIFICATIONS

Chamber External Dimensions 12′-0″ L x 7′-9″ W x 7′-0″ H                                                        (3658mm x 2362mm x 2134mm)
Conveyor Usable Size 12′-0″ L x 3′-6″ W x 0′-8″ H                                                        (3658mm x 1067mm x 203mm)
Insulation Thickness 6″ (152mm)
Conveyor Extensions 1′-3″ (381mm) entrance and 1′-3″ (381mm) exit end
Conveyor Type Custom Designed Product Trays
Conveyor Control PLC controlled index based on time
Heat Source Single electric heater
Design Operating Temperature 392°F (200°C)
Maximum Operating Temperature 482°F (250°C)
Operating Voltage 480-volt / 3-phase / 60-hertz
Control  PLC control of all functions with operator touch screen (HMI)

DESCRIPTION

The DTI-1160 indexing conveyor oven is used to temper alloy steel rods after a chroming process. The rods are used in the manufacturing of automotive suspension systems. The rods are loaded vertically, by robots, into custom trays that make up the conveying system. Each tray processes 42 rods and the trays index through the heated chamber based on timed increments. After the tempering process is complete the rods are indexed through a cooling zone that utilizes ambient plant air.

FEATURES

AUTOMOTIVE SUPPLIER ADVANTAGES

  • Provides in line manufacturing
  • Reduces labor cost of batch processes in regards to handling required to load and unload product racks
  • Eliminates multiple batch ovens required to keep pace with production

AUTOMOTIVE OVEN FEATURES

  • The oven utilizes electric heat
  • Heated airflow within the chamber is vertical top down
  • The oven utilizes heating zone and cooling zone in same body
  • Constant pnuematic take-up compensates for conveyor thermal expansion during operation
  • All functions of the machine are controlled by PLC with an operator touch screen (HMI)
  • Conveying system operates in an index configuration



Davron exists to be the industry leader in non-standard products engineered to meet the customer's need and unique process.
