DTI-1090 Batch Baking Oven
SPECIFICATIONS
| Exterior Dimensions | 7′-3″ W x 7′-11″ H x 35′-10″ D (2210mm x 2413mm x 10922mm) |
| Interior Dimensions | 6′-7″ W x 6′-3″ H x 29′-3″ D (5055mm x 1905mm x 8915mm) |
| Heat Source | Single full modulating indirect fired natural gas burner package |
| Maximum operating temperature | 374°F (190°C) |
| Design Operating temperature | 176°F – 374°F (80°C – 190°C) |
| Insulation Thickness | 4″ (102mm) |
| Control | Digital Indicating Temperature and Over Temperature |
| Operating voltage | 480-volt /3-phase /60-hertz |
| Airflow | Horizontal cross flow |
| Circulation Fans | One (1) Circulation Fan |
| Exhaust Fans | One (1) Exhaust Fan |
DESCRIPTION

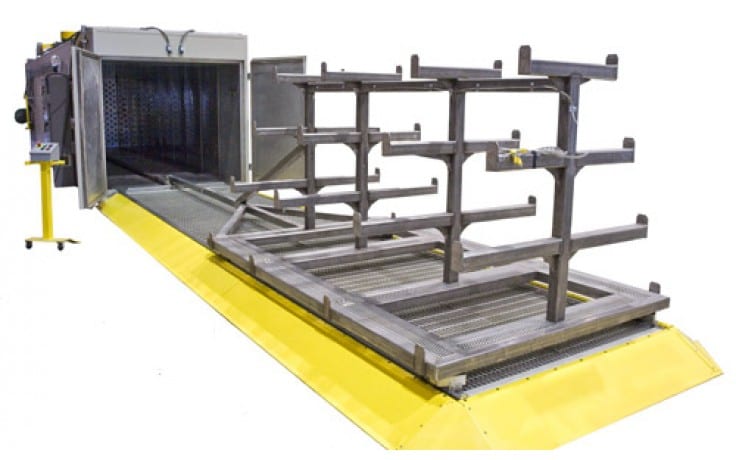

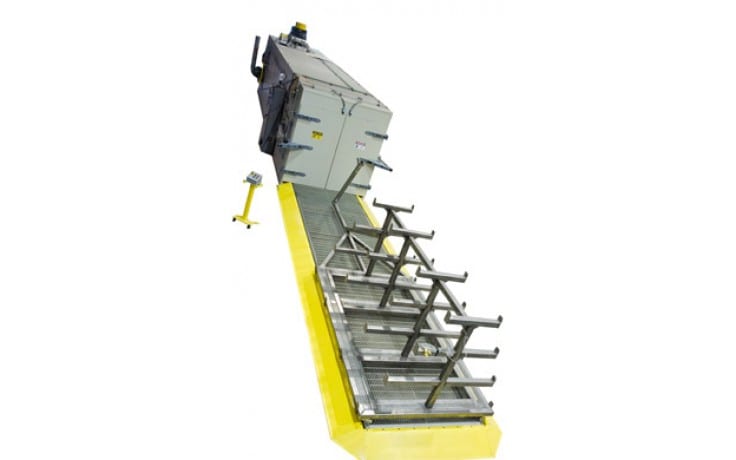

The DTI-1090 Batch Baking Oven is used for fast heat up of oil field piping used in the off shore drilling industry. The size of the piping being processed in the oven are approximately 14″ diameter x 27′ long. The product load in the oven can be up to 11,024 pounds. This baking oven utilizes a custom automated product cart and track system for loading and unloading product.
FEATURES
BATCH OVEN CONSTRUCTION FEATURES

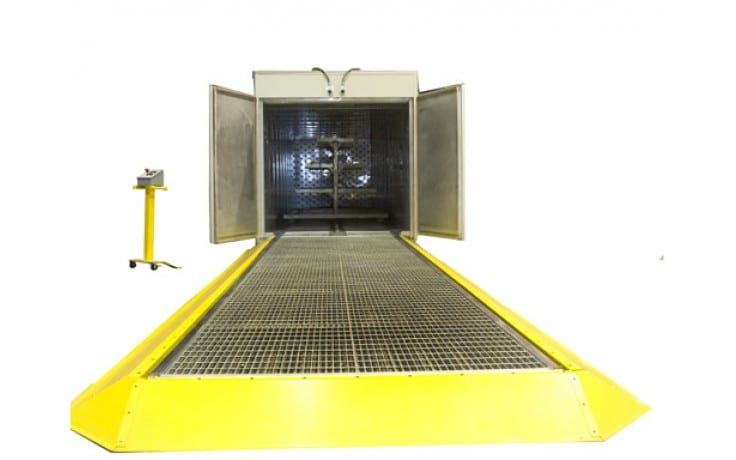

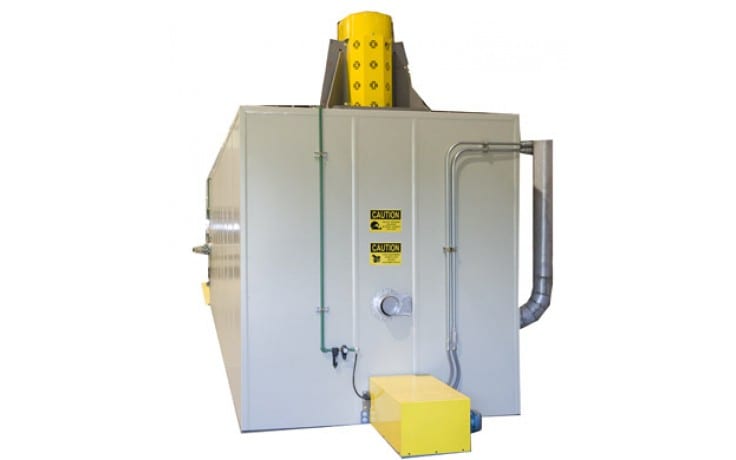

This Batch Baking Oven is constructed with structural steel framework that supports the entire oven. The oven utilizes one (1) set of horizontal swing doors located on the entrance end of the oven. These doors utilize a series of pneumatic cylinders to allow for automated opening and closing. The batch oven interior is constructed of stainless steel and the exterior is carbon steel painted with high temperature paint. The oven heat source is natrual gas and the system is indirect fired and utilizes a heat exchanger.
