DTI-1078 Calcining Batch Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

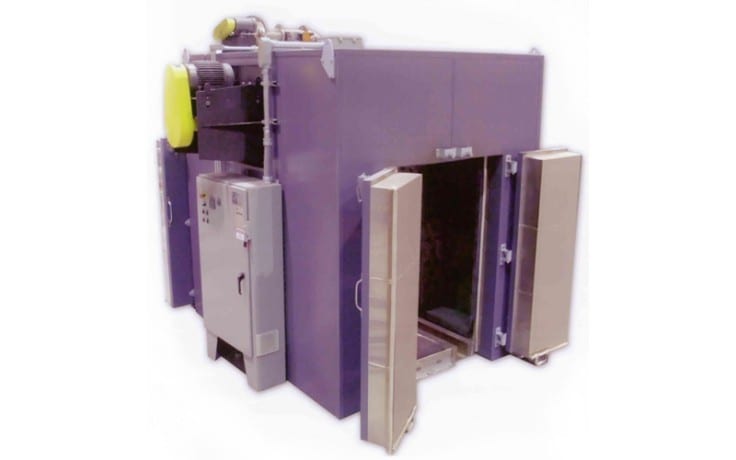

The DTI-1078 batch oven dries ceramic material in a honeycomb catalyst product. Product, which can be either small blocks or trays of powder, are loaded onto a product cart. The product cart contains multiple shelves which hold the product. The cart is loaded into the Calcining Batch Oven via recessed tracks located in the floor of the oven. The calcining process takes approximately ten (10) hours. The cycle has several profiles that are controlled by a programmable digital controller. During the cycle the oven is exhausting approximately 800 pounds of water. The maximum operating temperature of the Calcining Batch Oven is 1,292 degrees F.
SPECIFICATIONS
| Exterior Dimensions | 7′-8″ W x 9′-7″ H x 9′-8″ D (2337mm x 2921mm x 2946mm) |
| Interior Dimensions | 4′-0″ W x 6′-0″ H x 8′-0″ D (1219mm x 1829mm x 2438mm) |
| Heat Source | Single Electric Heater controlled by SCR |
| Max Operating Temp | 1,292°F (700°C) |
| Design Operating Temp | 700°F – 1,200°F (371°C – 649°C) |
| Insulation Thickness | 4″ (102mm) of cerwool, 8″ (203mm) of mineral wool |
| Control | Programmable digital controller capable of multiple programs |
| Operating Voltage | 480-volt /3-phase /60-hertz |
| Airflow | Horizontal cross flow |
| Circulation Fans | One (1) circulation fan |
| Exhaust Fans | One (1) exhaust fan |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
