DTI-1046 Batch Drying Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

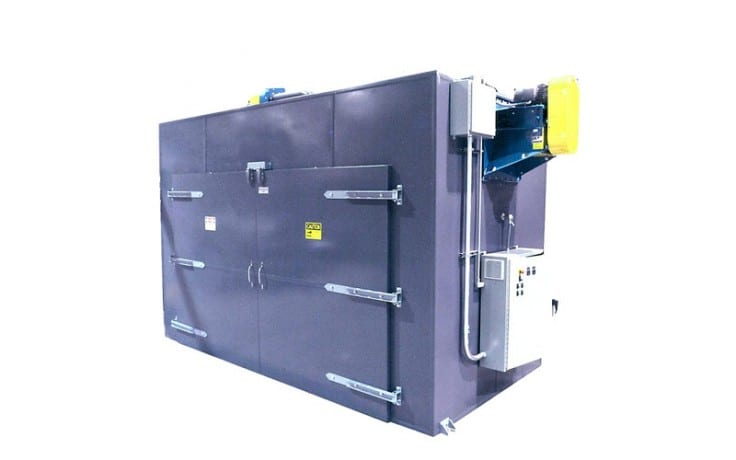

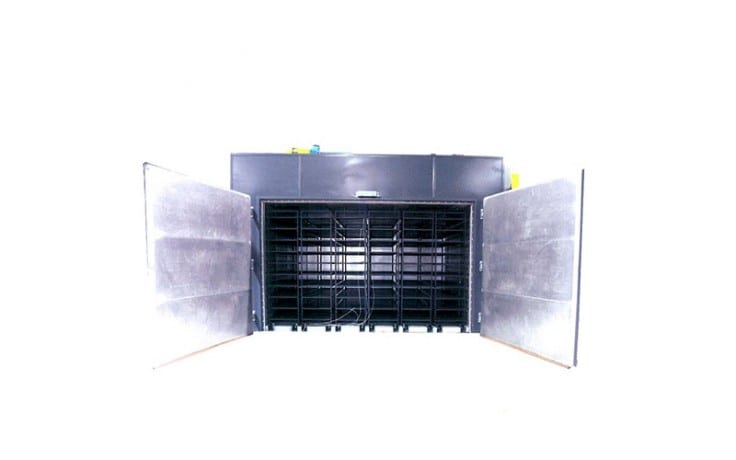

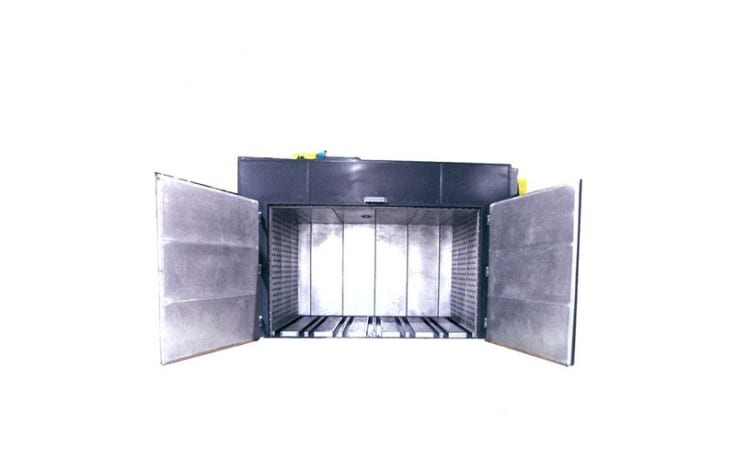

The DTI-1046 batch drying oven is used to dry sheets of polyurethane foam. The product is loaded into the oven via custom product carts. The drying oven utilizes recessed floor tracks to accommodate three (3) product carts per batch. Each cart is 500 pounds of polyurethane foam with a maximum product load of 1,500 pounds per batch. During the drying cycle the oven will exhaust approximately 100 pounds of water per hour. Heated air within the chamber is a horizontal cross flow.
SPECIFICATIONS
| Exterior Dimensions | 14′-8″ L x 11′-6″ W x 8′-8″ H (4470mm x 3505mm x 2642mm) |
| Interior Dimensions | 12′-0″ L x 8′-0″ W x 8′-0″ H (3658mm x 2438mm x 2438mm) |
| Heat Source | Single electric heater controlled by SCR |
| Max Operating Temperature | 250°F (121°C) |
| Design Operating Temperature | 200°F – 250°F (93°C – 121°C) |
| Insulation Thickness | 4″ (102mm) |
| Control | Digitial Indicating Temperaure and Over Temperature |
| Operating Voltage | 480-volt /3-phase /60-hertz |
| Airflow | Horizontal cross flow |
| Circulation Fan | One (1) circulation fan |
| Exhaust Fan | One (1) exhaust fan |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
