DTI-1032 Pre Heat Batch Oven
CUSTOMER DIRECTIVE
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
DESCRIPTION

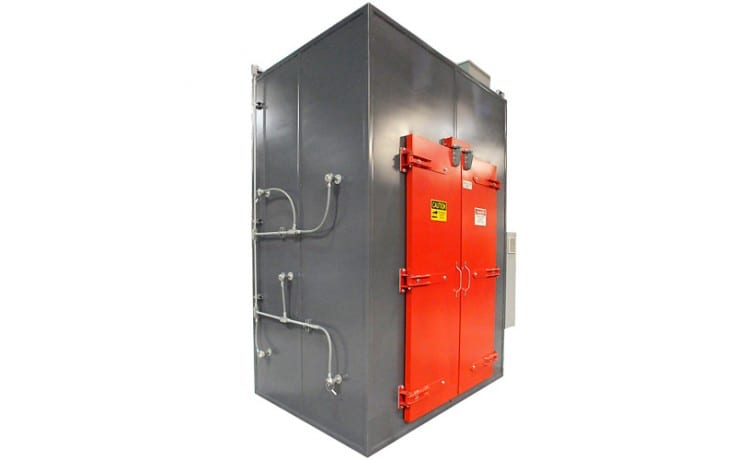

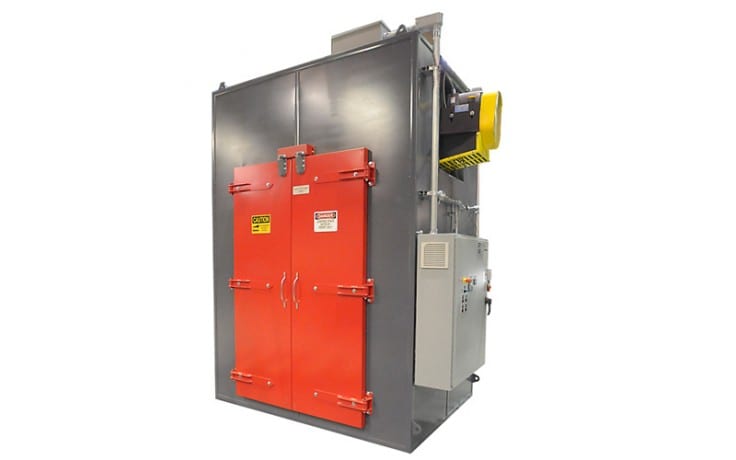

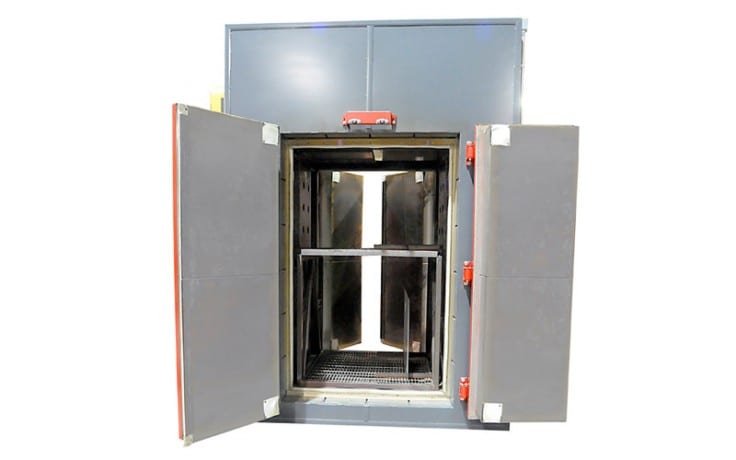

This Pre Heat Batch Oven is used in the plastic manufacturing industry to pre heat molds. The molds are steel and the maximum weight of molds per batch is 6,000 pounds. The oven utilizes a subway grate floor and a subway grate shelf approximately 4′-0″ (1219mm) above the floor. The design operating temperature is 890°F +/- 4°F. The maximum operating temperature of the oven is 1,000 degrees F.
SPECIFICATIONS
| Exterior Dimensions | 15′-8″ L x 7′-8″ W x 10′-9″ H (4775mm x 2337mm x 3277mm) |
| Interior Dimensions | 4′-0″ L x 4′-0″ W x 7′-2″ H (1219mm x 1219mm x 2184mm) |
| Heat Source | Single electric heater controlled by SCR |
| Maximum Operating Temperature | 1,000°F (538°C) |
| Design Operating Temperature | 890°F (477°C) |
| Insulation Thickness | 10″ (254mm) |
| Control | Digital Indicating Temperature and Over Temperature |
| Operating Voltage | 480-volt /3-phase /60-hertz |
| Airflow | Horizontal cross flow |
| Circulation Fans | One (1) Circulation fan |
| Exhaust Fans | One (1) Exhaust fan |
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
