DTI-9481 Curing Batch Oven
Customer directive
Our customer wanted to create an indexing single part flow inert atmosphere production furnace system to match, and seamlessly integrate into, the customer’s entire existing manufacturing process at a production rate of 45 seconds part to part. The customer’s then existing process included inefficient batch furnace staging of parts at this point in the process.
Description

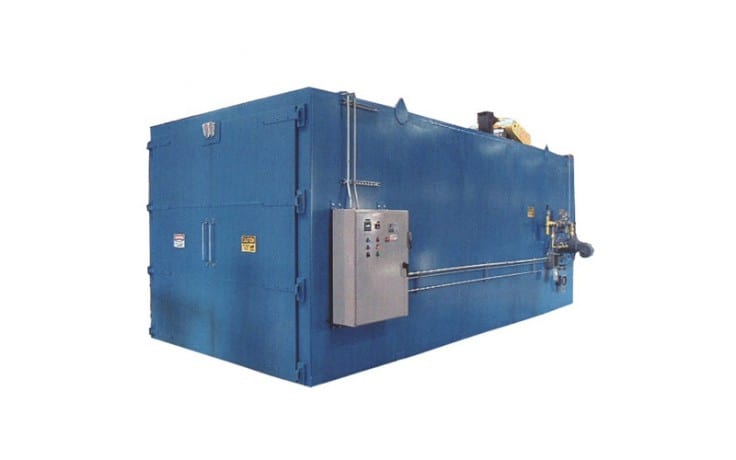

The DTI-9481 batch oven cures coating on large tooling. Product is placed on the product cart and loaded into the oven. This batch oven utilizes recessed floor tracks to accommodate the product cart. The batch oven interior is constructed of aluminized steel. The exterior is constructed of carbon steel and painted with high temperature paint. The digital programmer utilized with this batch oven is capable of holding 99 profiles with 99 steps per profile.
Specifications
Exterior Dimensions | 29′-0″ L x 11′-6″ W x 12′-0″ H (8839mm x 3505mm x 3658mm) |
Interior Dimensions | 28′-0″ L x 8′-0″ W x 8′-0″ H (8534mm x 2438mm x 2438mm) |
Heat Source | Single full modulating natural gas burner package |
Max Operating Temperature | 850°F (454°C) |
Design Operating Temperature | 700°F (371°C) |
Insulation Thickness | 8″ (203mm) |
Operating Voltage | 480-volt / 3-phase / 60-hertz |
Airflow | Horizontal cross flow |
Fans | One (1) circulation fan, One (1) exhaust fan |
Control | Programmable digital controller |
Alternative capabilities
Davron Technologies, Inc. provides process specific industrial inert atmosphere oven applications, including the following:
- Industries Served: Automotive, Pharmaceutical / Medical, Aerospace, Glass, Composites
- Materials/Parts Processed: Castings, Glass, Plastics, Steel, Engine Components, Cast Steel/Aluminum
- Process Applications: Inert Stress Relieving, Inert Atmosphere Annealing, Inert Atmosphere Batch, Inert Atmosphere Conveyor/Continuous
