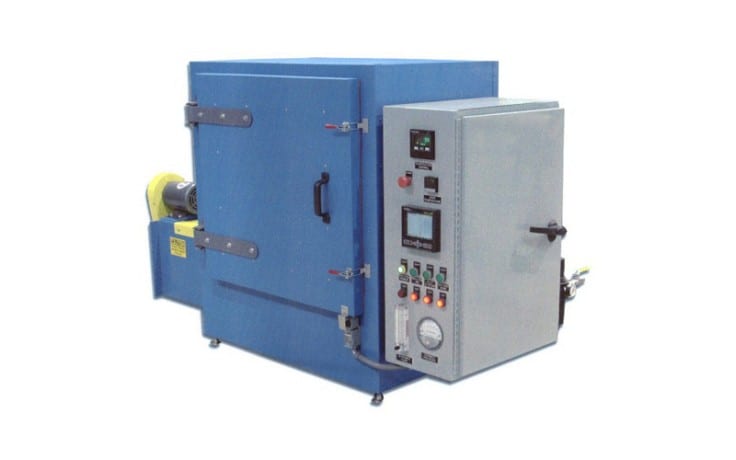

DTI-9281 Inert Atmosphere Batch Oven

SPECIFICATIONS

Overall Dimensions 2′-3″ L x 3′-6″ W x 3′-7″ H                                                            (686mm x 1067mm x 1092mm)
Interior Dimensions 1′-9″ L x 1′-9″ W x 1′-9″ H                                                            (533mm x 533mm x 533mm)
Insulation Thickness  3″ (76mm)
Heat Source  Single electric heater controlled by SCR
Maximum Operating Temperature  650°F (343°C)
Operating Temperature  300°F – 600°F (149°C – 316°C)
Airflow  Horizontal cross flow
Operating Voltage  480-volt / 3-phase / 60-hertz
Control Programmable controller capable of storing multiple ramp/soak programs.
Fans One (1) circulation fan
Misc Pressure gauge for monitoring chamber pressure
Oven utilizes flow meter to control the flow rate of inert gas entering the chamber

DESCRIPTION

The DTI-9281 inert atmosphere batch oven is used in the manufacturing of O-Rings. Due to the by- products of the process, the interior of the oven, shelves, and all material in the circulated air stream is constructed of Inconel.



FEATURES

INERT ATMOSPHERE OVEN CONSTRUCTION

The interior of the inert atmosphere oven contains seven (7) product shelves.  The total product load being processed in one batch is less than thirty-five (35) pounds.  The seams in the interior of the oven are sealed, and the circulation fan drive shaft is sealed and purged with nitrogen.  The heater utilizes Incoloy 600 elements and the circulation fan is constructed of Inconel.
